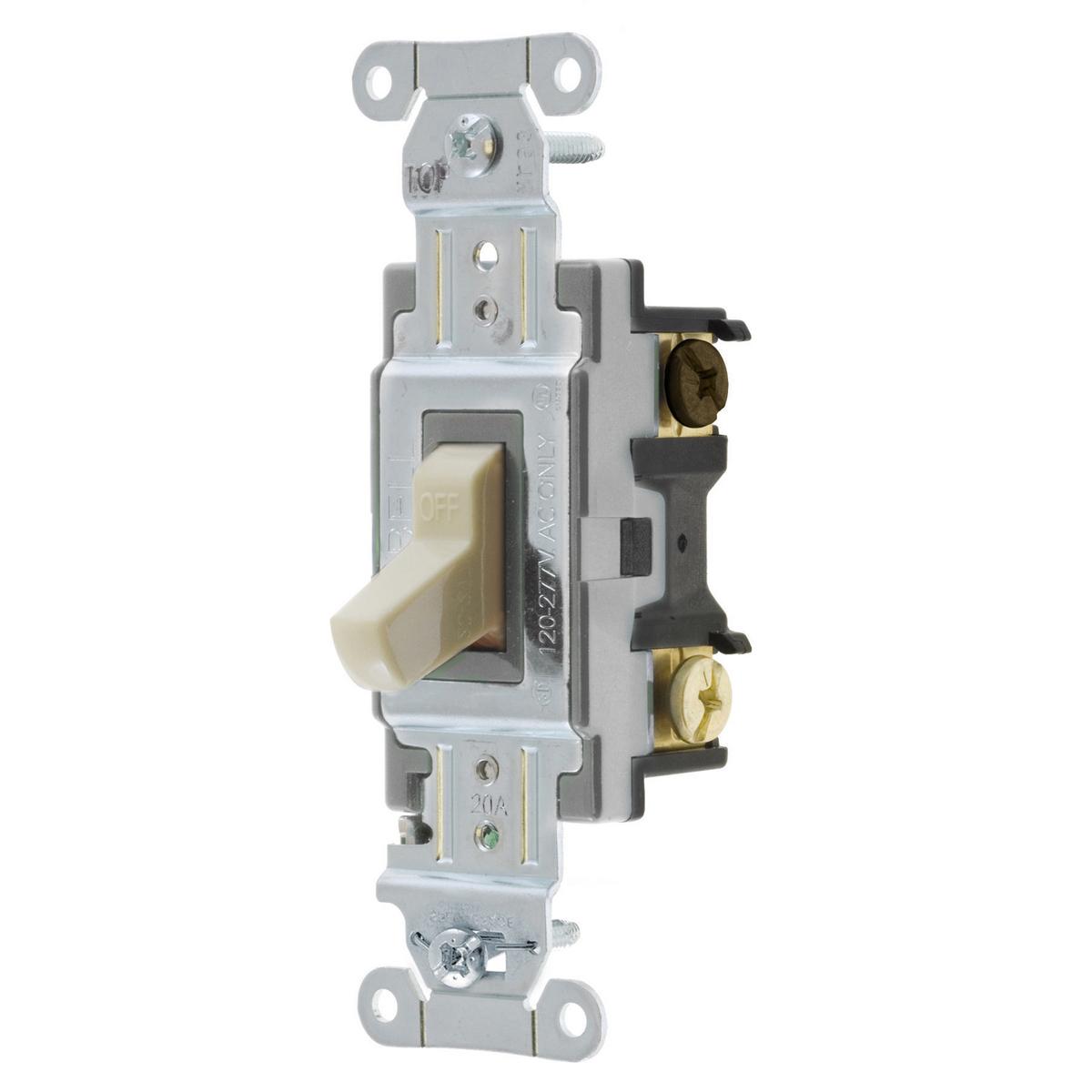

Wiring Device-Kellems CS320I 3-Way Standard AC Toggle Switch 120 to 277 VAC 5540 W

Product Description

The Wiring Device-Kellems AC Toggle Switch, model CS320I, is designed for 3-way operation and is rated for a voltage range of 120 to 277 VAC. It can handle a maximum current of 20 A and a power rating of 5540 W. This toggle switch features a 2-position contact configuration with a single pole design.

• Operating temperature range of -40 to 75 degrees Celsius.
• Durable nylon construction and threaded mounting.
• Rated for 50000 operating cycles for reliability.

Product Highlights

This product is ideal for use in residential or commercial settings requiring a reliable toggle switch for lighting or electrical control.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: Ivory
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Terminal Type: Side Wire
• Type: 3-Way Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
