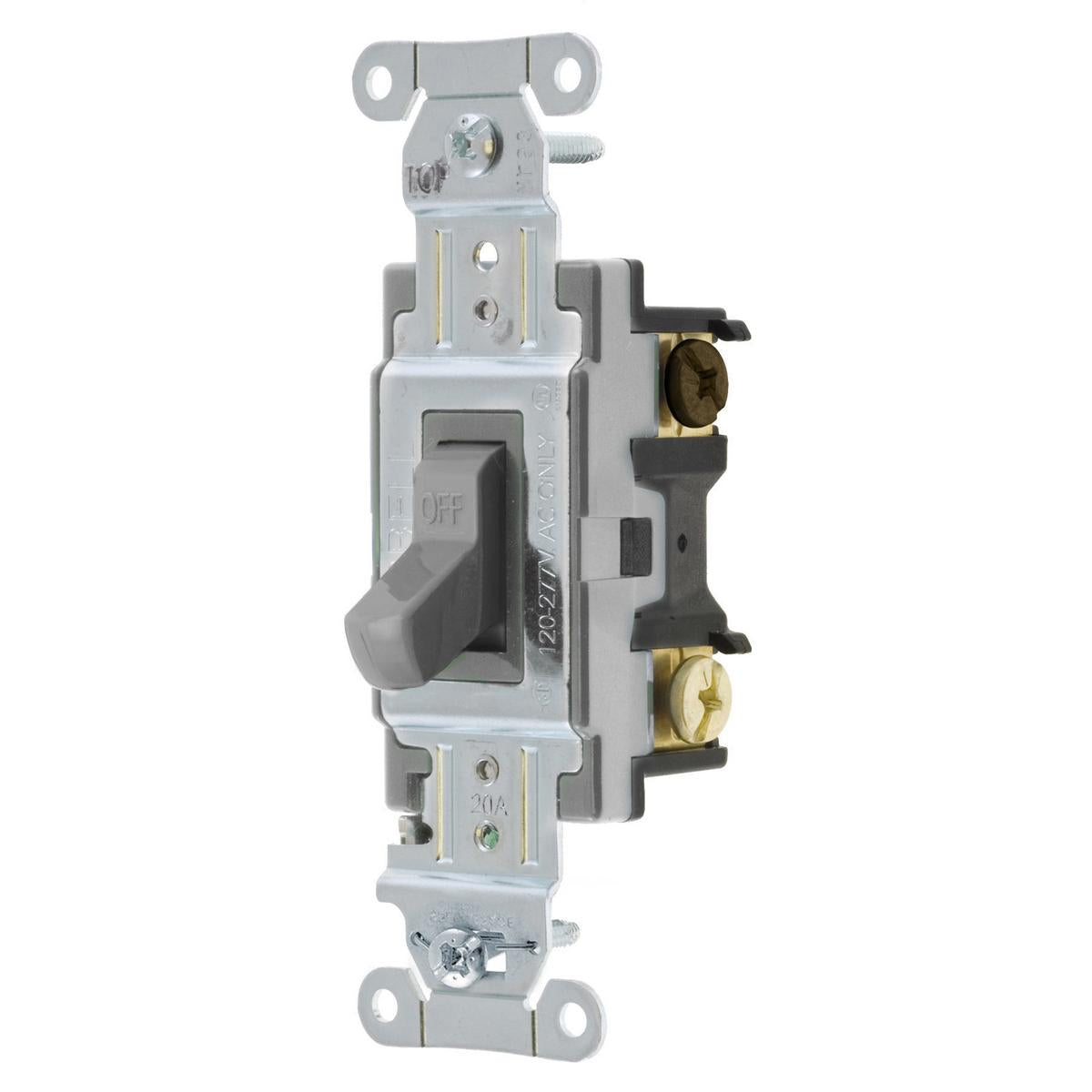

Wiring Device-Kellems CS320GY Toggle Switch 120 to 277 VAC 3-Way General Purpose Standard

Product Description

The Wiring Device-Kellems CS320GY is a durable toggle switch designed for a variety of applications. This 3-way general purpose standard switch operates at a voltage range of 120 to 277 VAC and has a current capacity of twenty amperes. With a power rating of five thousand five hundred forty watts, it features a two-position contact configuration. The toggle actuator allows for easy operation, and its threaded mounting ensures secure installation.

• Operating temperature range of -40 to 75 degrees Celsius
• Constructed from nylon for enhanced durability
• Rated for fifty thousand operating cycles

Product Highlights

This switch is ideal for residential and commercial electrical projects where reliable performance is required, making it suitable for lighting controls and various electrical systems.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: Gray
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50,000 cycles
• Terminal Type: Screw
• Type: 3-Way General Purpose Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
