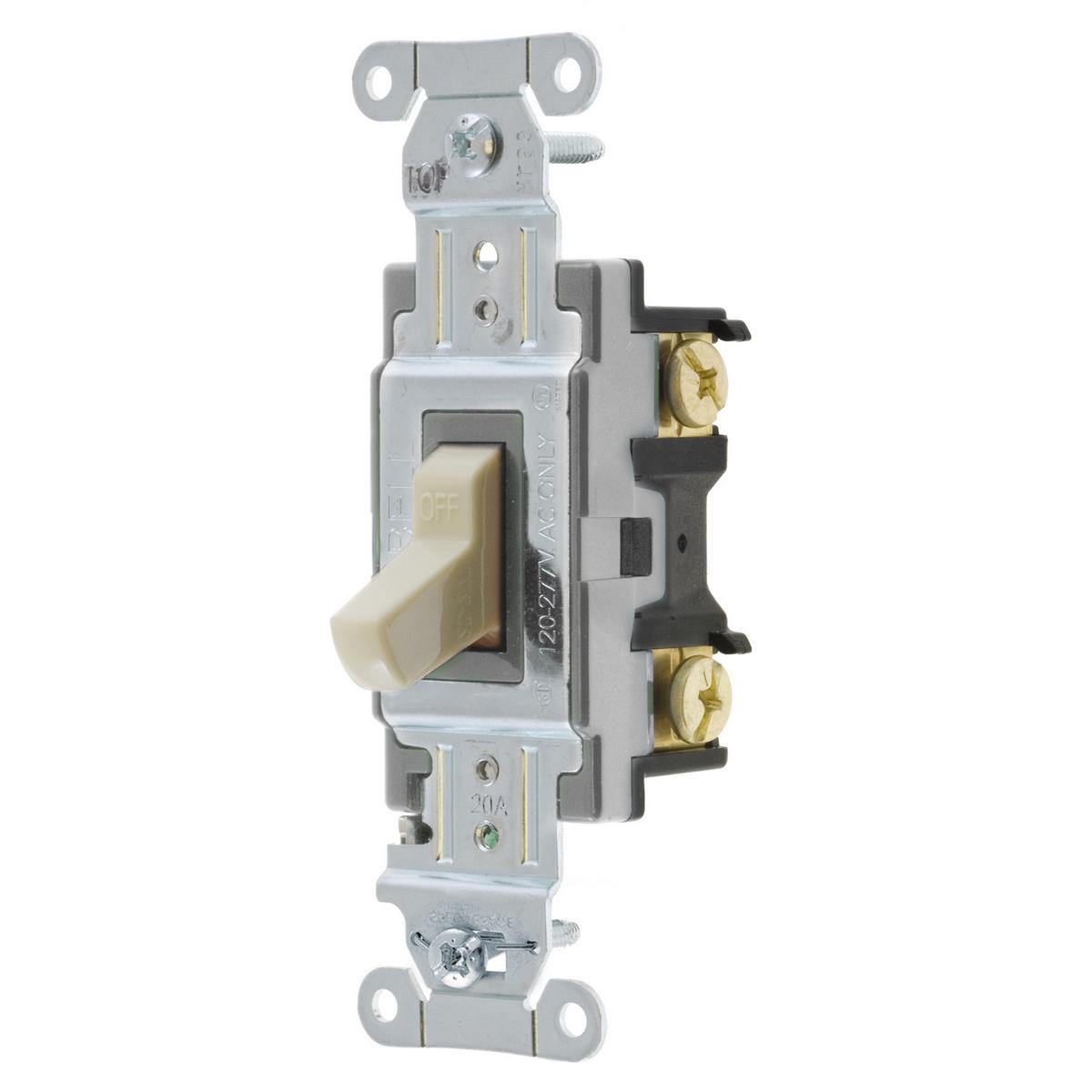

Wiring Device-Kellems CS120I Standard AC Toggle Switch 120 to 277 VAC 20 A 5540 W

Product Description

The Wiring Device-Kellems CS120I is an AC toggle switch designed for reliable operation in various electrical applications. This switch supports voltages from one hundred twenty to two hundred seventy-seven volts AC and has a power rating of five thousand five hundred forty watts. It is equipped with a two-position contact configuration and is suitable for one pole use.

• Voltage range: 120 to 277 VAC
• 20 A amperage rating
• Operating cycles: 50,000

Product Highlights

This toggle switch is built with high-quality nylon and is ivory in color. It includes a threaded mounting and side wire terminal, making installation straightforward. The product can operate in environmental conditions between minus forty degrees Celsius to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• MPN: CS120I

Technical Specifications

• Material: Nylon
• Type: Standard
• Contact Configuration: 2-Position
• Number of Poles: 1
• Operating Cycles: 50,000
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Environmental Conditions: -40 to 75 deg C
• Dimensions: 4.18 x 1.49 x 1.83 in
• Terminal Type: Side Wire
• Mounting: Threaded
• Color: Ivory
• Actuator: Toggle
• Voltage Rating: 120 to 277 VAC
