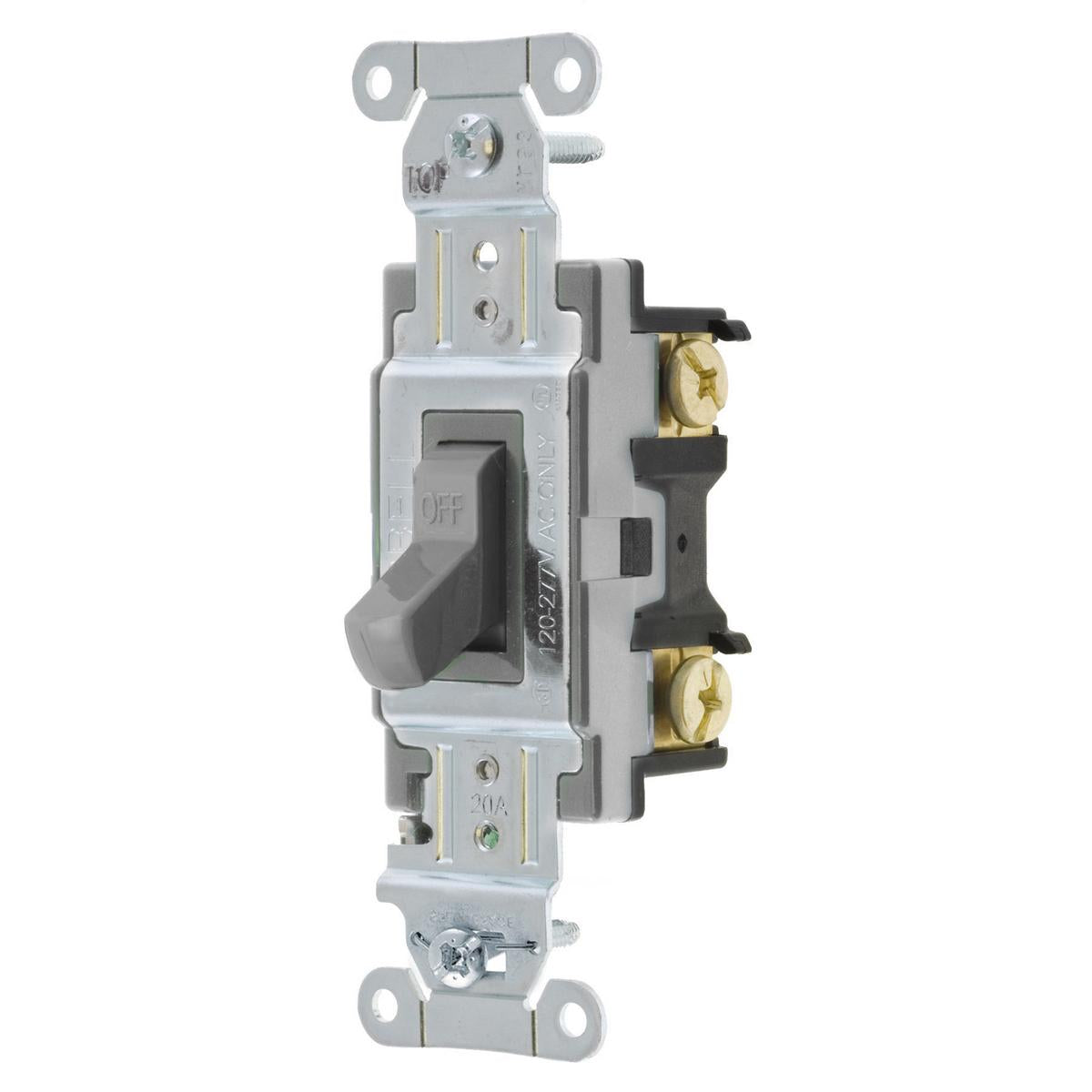

Wiring Device-Kellems CS120GY 2-Position Standard AC Toggle Switch 120 to 277 VAC

Product Description

The Wiring Device-Kellems CS120GY is an AC toggle switch designed for standard use. This 2-position switch operates at voltages from one hundred twenty to two hundred seventy-seven volts AC. It has a maximum amperage of twenty and a power rating of five thousand five hundred forty watts. The toggle switch features a one-pole configuration and is constructed with nylon material. The threaded mounting allows for easy installation using side wire or screw terminals.

• Operating voltage: 120 to 277 VAC
• Maximum current: 20 A
• Operating cycles: 50,000 cycles

Product Highlights

This switch is suitable for various applications where reliable on-off control is needed.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: Gray
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 °C
• Material: Nylon
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50,000 cycles
• Terminal Type: Side Wire/Screw
• Type: 2-Position Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
