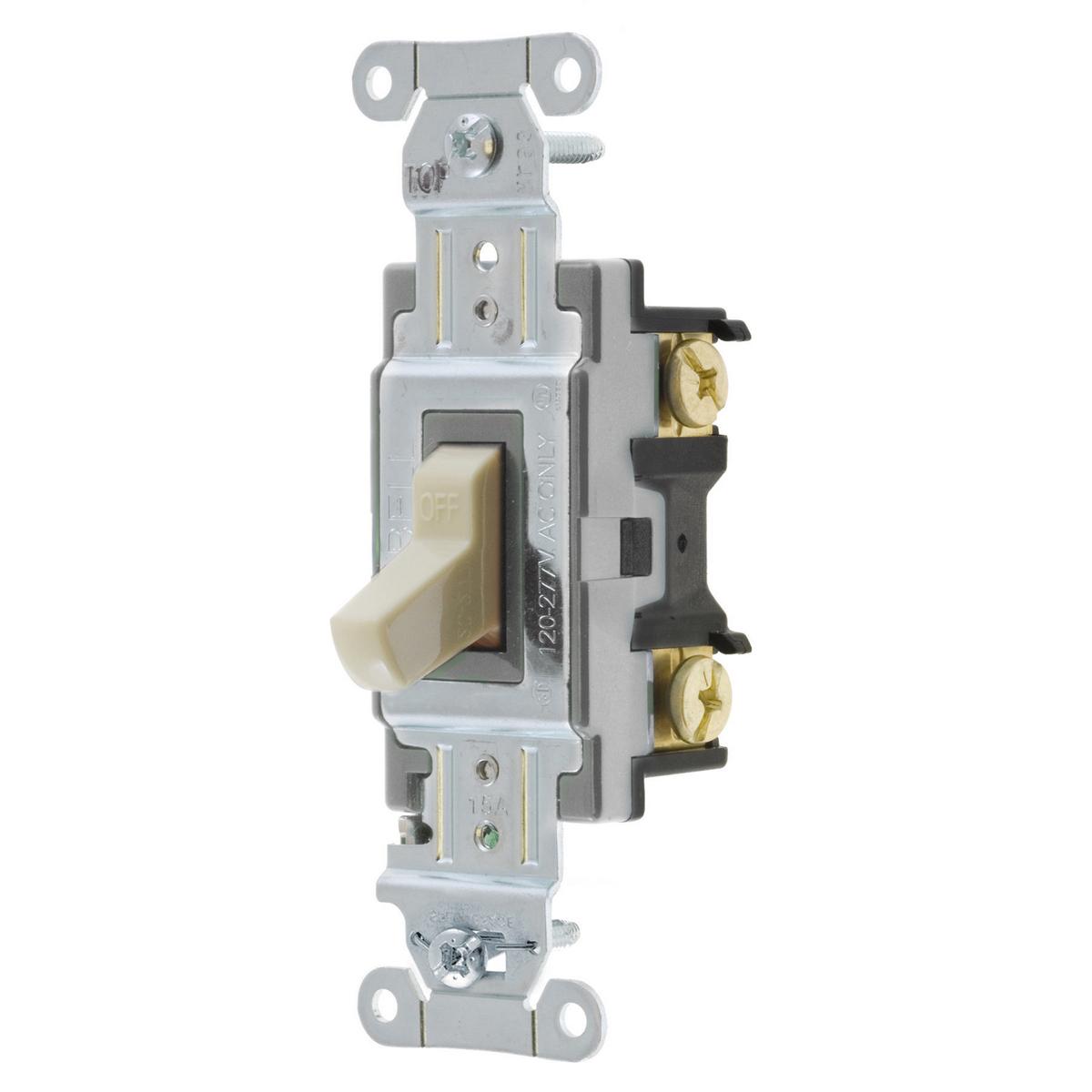

Wiring Device-Kellems CS115I Standard AC Toggle Switch 120 to 277 VAC 15 A 4155 W

Product Description

This Wiring Device-Kellems CS115I is an AC toggle switch designed for standard applications. It operates within a voltage range of one hundred twenty to two hundred seventy-seven volts AC. The switch has a fifteen amp capacity with a power rating of four thousand one hundred fifty-five watts. The two-position contact configuration features one pole, and is ideal for various electrical setups.

• Voltage range of 120 to 277 VAC
• 15 A maximum current with a 4155 W power rating
• Durable nylon construction rated for harsh environments

Product Highlights

The switch's toggle actuator is designed for easy operation, while the threaded mounting ensures secure installation. Its side wire terminal allows for straightforward wiring, making it suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Material: Nylon
• Color: Ivory
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Terminal Type: Side Wire
• Contact Configuration: 2-Position
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 15 A
• Power Rating: 4155 W
