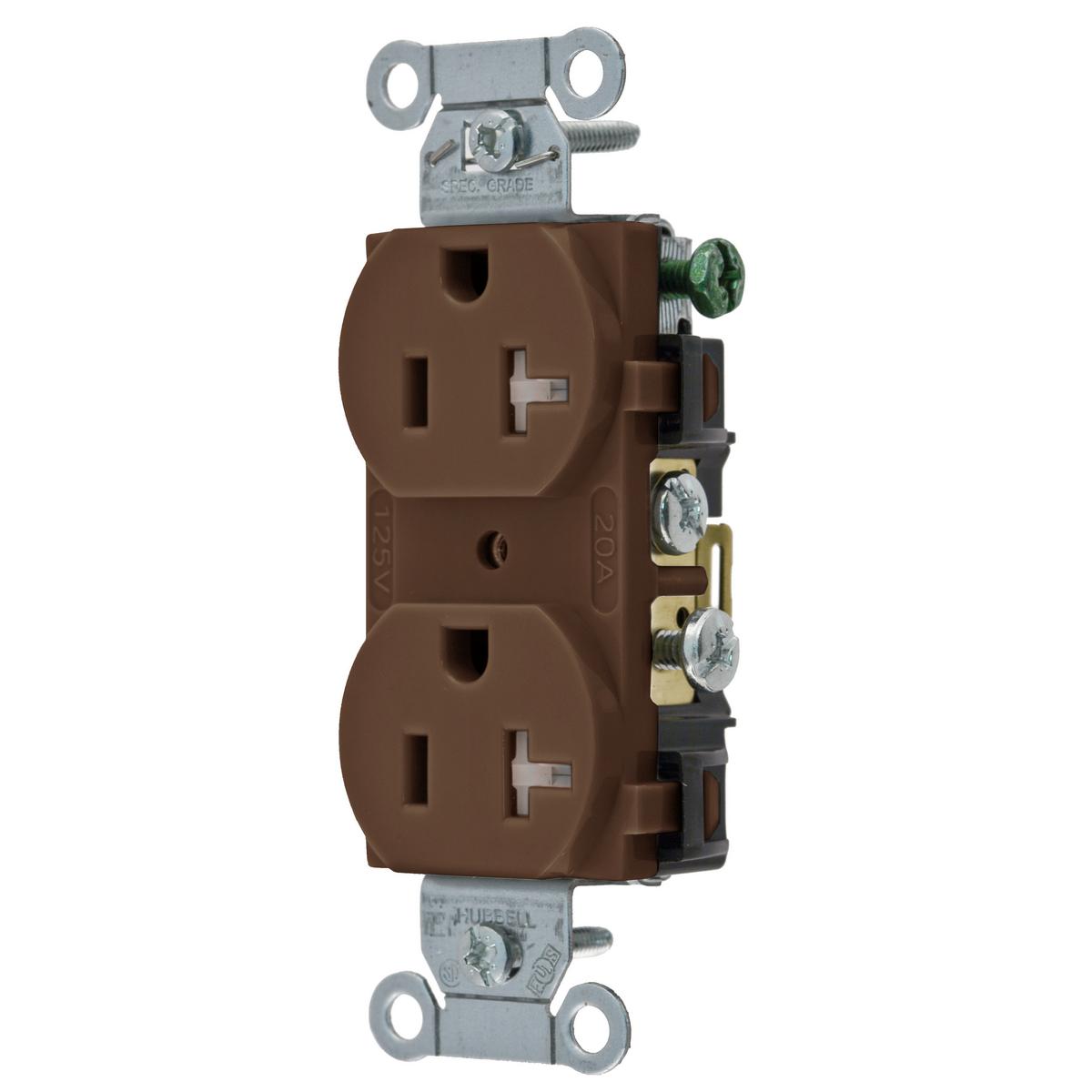

Wiring Device-Kellems CR20TR 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount 125 VAC

Product Description

The Wiring Device-Kellems CR20TR is a reliable straight blade receptacle designed for various applications. It operates at one phase with duplex self-grounding capabilities. This tamper-resistant and screw mount receptacle is rated for one hundred twenty-five volts and twenty amps. The device features two poles and three wires, making it ideal for commercial settings.

• Self-grounding design enhances safety.
• Meets national electrical code for tamper resistance.
• Made from durable nylon material.

Product Highlights

This receptacle is suitable for a variety of electrical installations including residential and commercial applications. It is robust and built to withstand temperatures ranging from negative forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 1 hp
• NEMA Rating: 5-20R
• Terminal Type: Side Wired
• Temperature Rating: -40 to 75 deg C
• Dimensions: 1.32 x 1.14 x 3.28 in
• Material: Nylon
• Color: Brown
• Grade: Commercial/Specification
• Type: 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount
