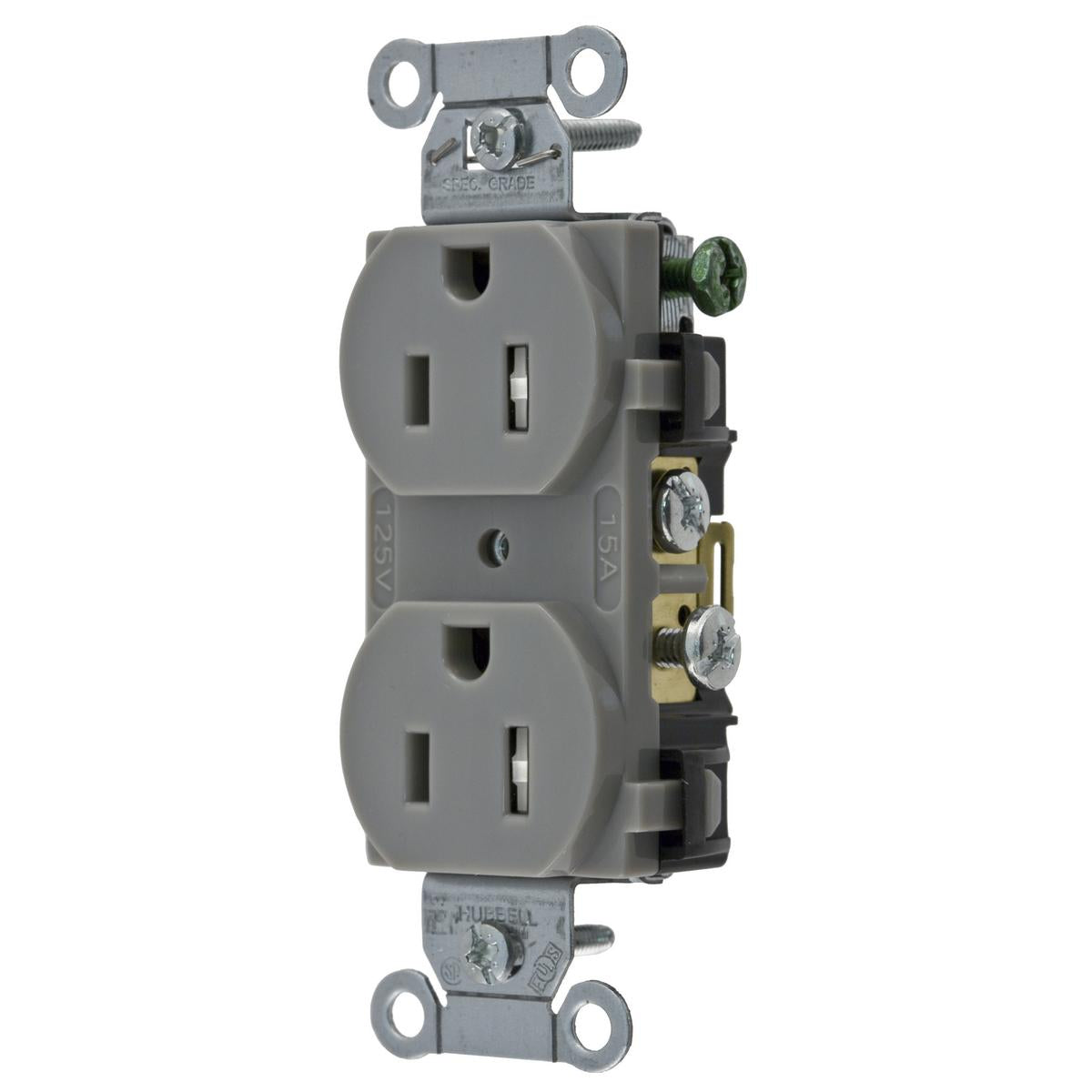

Wiring Device-Kellems CR15GRYTR 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount

Product Description

The Wiring Device-Kellems CR15GRYTR is a straight blade receptacle designed for reliable power connectivity. This device features a duplex self-grounding design, making it a practical choice for various electrical applications.

• 1-Phase duplex self-grounding
• Commercial specification grade
• Temperature rating from -40 to 75 degrees Celsius

Product Highlights

This receptacle is built to meet national electrical code requirements with its tamper-resistant shutter and smooth face. The side wired terminal allows for easy and secure installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 1.32 x 0.83 x 3.28 inches
• Grade: Commercial/Specification
• Horsepower: 1/2 hp
• Material: Nylon
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Side Wired
• Type: 1-Phase duplex self-grounding
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Gray
