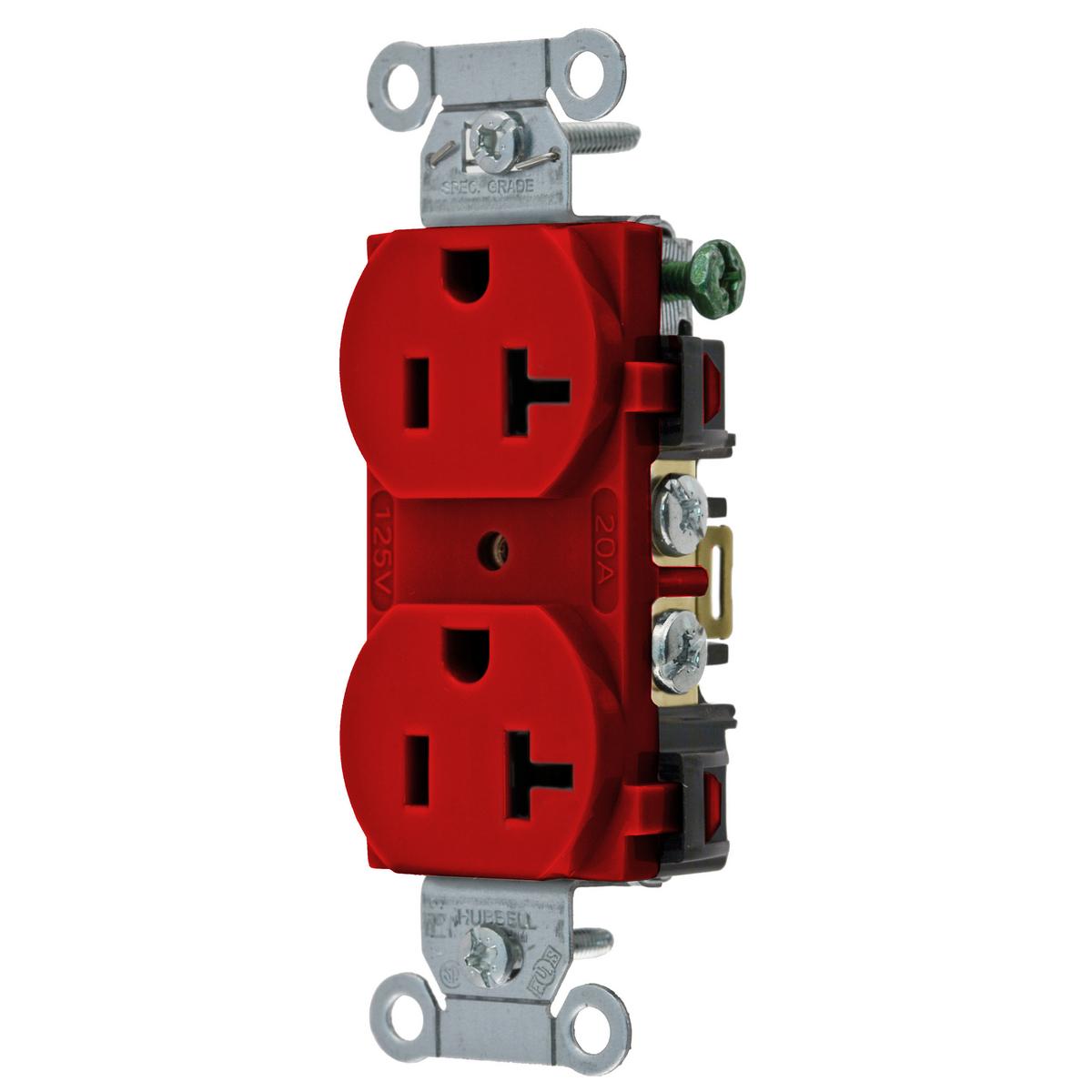

Wiring Device-Kellems BR20R 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount

Product Description

The Wiring Device-Kellems BR20R is a 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount Straight Blade Receptacle. It operates on 125 VAC with a current rating of 20 A. This receptacle features a 2-pole, 3-wire design, is rated at 5-20R NEMA, and is suitable for commercial use.

• Self-grounding design for added safety.
• Durable nylon construction ensures long-lasting performance.
• Side wired terminal for easy installation.

Product Highlights

This receptacle withstands temperature ranges from -40 to 75 degrees Celsius, making it versatile for various environments. It is made with a nylon face and base, featuring triple wipe contacts and a wrap-around galvanized steel strap for added reliability.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Dimensions: 1.32 x 0.83 x 3.28 inches
• Grade: Commercial/Specification
• Horsepower: 1 hp
• Material: Nylon
• NEMA Rating: 5-20R
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Side Wired
• Type: 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• Color: Red
