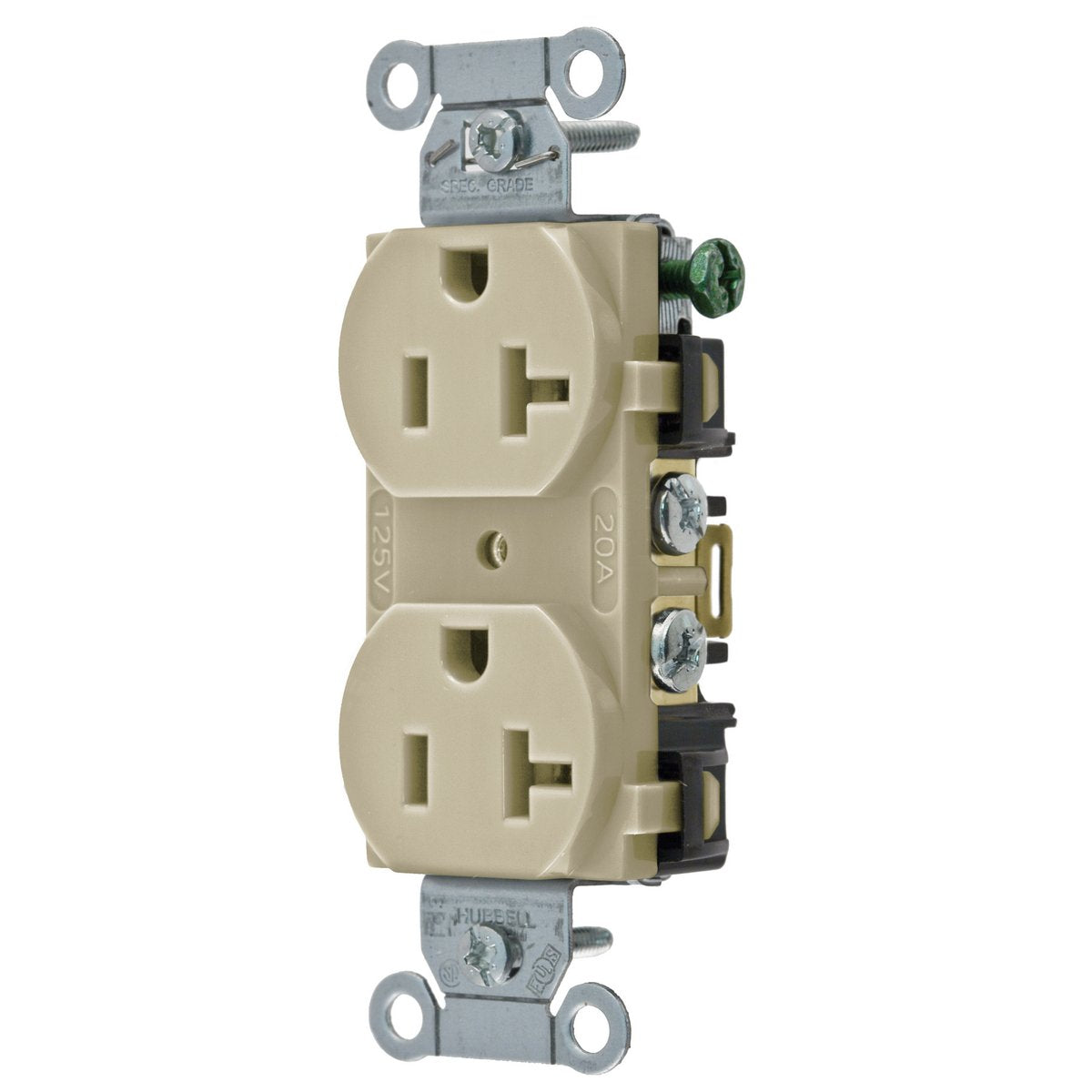

WIRING DEVICE-KELLEMS BR20I Straight Blade Duplex Self-Grounding Receptacle 20 A

Product Description

The Wiring Device-Kellems BR20I is a straight blade duplex self-grounding receptacle designed for reliable electrical connections. It operates at 125 VAC with a current rating of 20 A. This duplex receptacle features two poles and three wires, making it suitable for various applications in commercial settings.

• Duplex self-grounding with traditional screw mount design.
• NEMA 5-20R rated for safety and compliance.
• Constructed for durability with thermoplastic materials.

Product Highlights

This receptacle provides a robust solution for electrical connectivity in commercial environments, rated for -40 to 75 degrees Celsius. It has back and side wire terminals for versatile installation options.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: Straight Blade Duplex Receptacle
• Amperage Rating: 20 A
• Voltage Rating: 125 V
• Number of Poles: 2
• NEMA Rating: NEMA 5-20R
• Number of Wires: 3
• Dimensions: 1.32 in L x 0.83 in W x 3.28 in H
