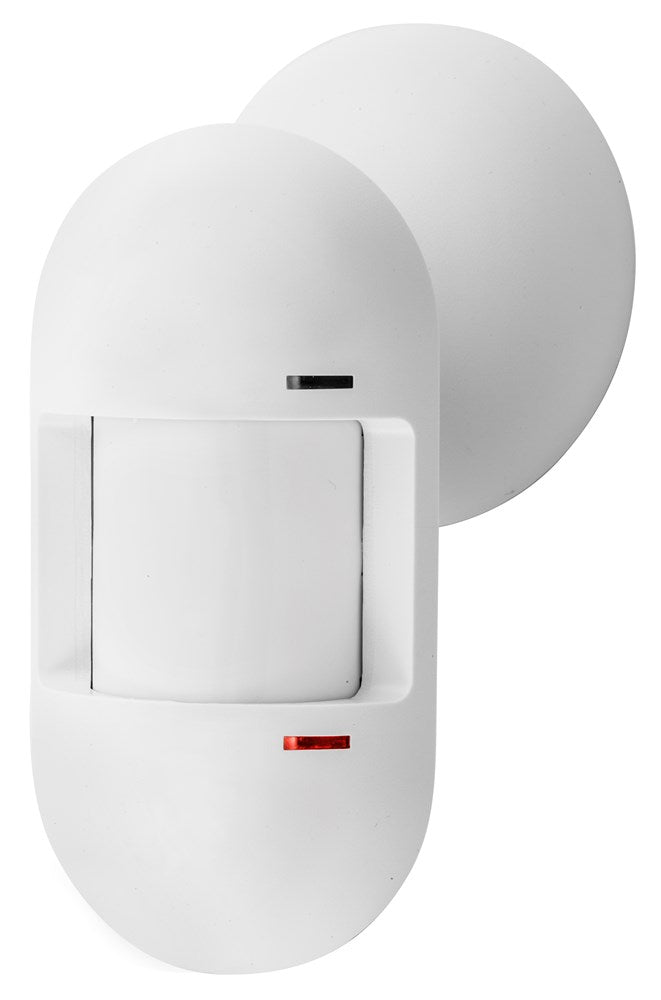

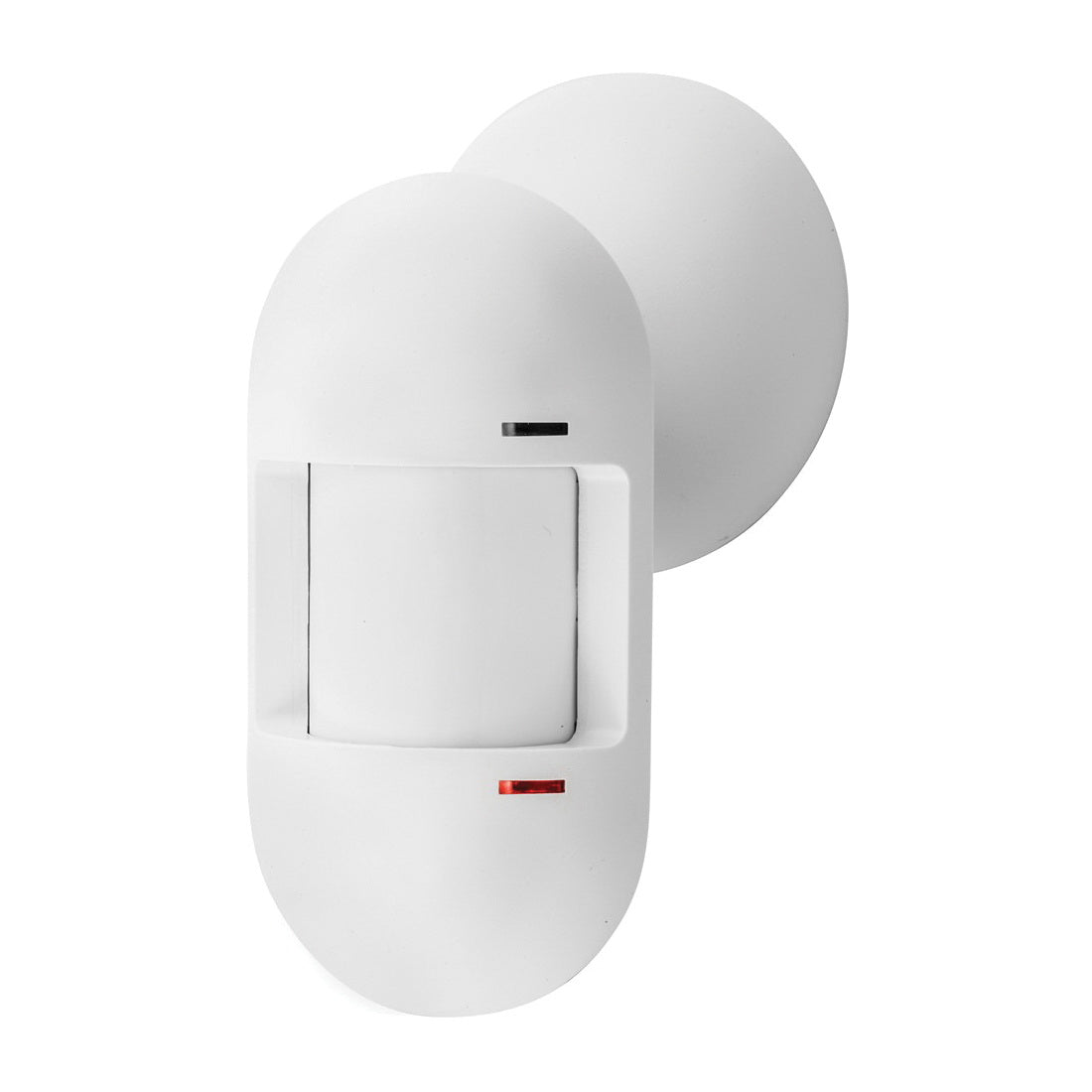

Wiring Device-Kellems ATP120HB Low Voltage Wall Switch Sensor 24 VDC

Product Description

The Wiring Device-Kellems H-MOSS Wall Switch Sensor, MPN ATP120HB, is designed for low voltage applications. It operates on twenty-four volts DC and consumes thirty-three milliamps.

• Passive infrared sensor technology
• Covers an area of up to one hundred twenty square feet
• Mounts directly to walls

Product Highlights

Ideal for energy-efficient control of lighting in spaces such as offices and hallway entrances.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Amperage Rating: 33 mA
• Voltage Rating: 24 VDC
• Type: Low Voltage
• Sensor Type: Passive Infrared
• Coverage Area: 120 sq-ft
• Mounting Type: Wall
• Dimensions: 6 in H x 2 in W x 1-1/2 in D
• Material: ABS
• Color: Off-White
• Temperature Rating: 32 to 104 deg F
• Time Delay: 8 to 40 min
• Lamp Type: CFL/LED
• Series: ATP
