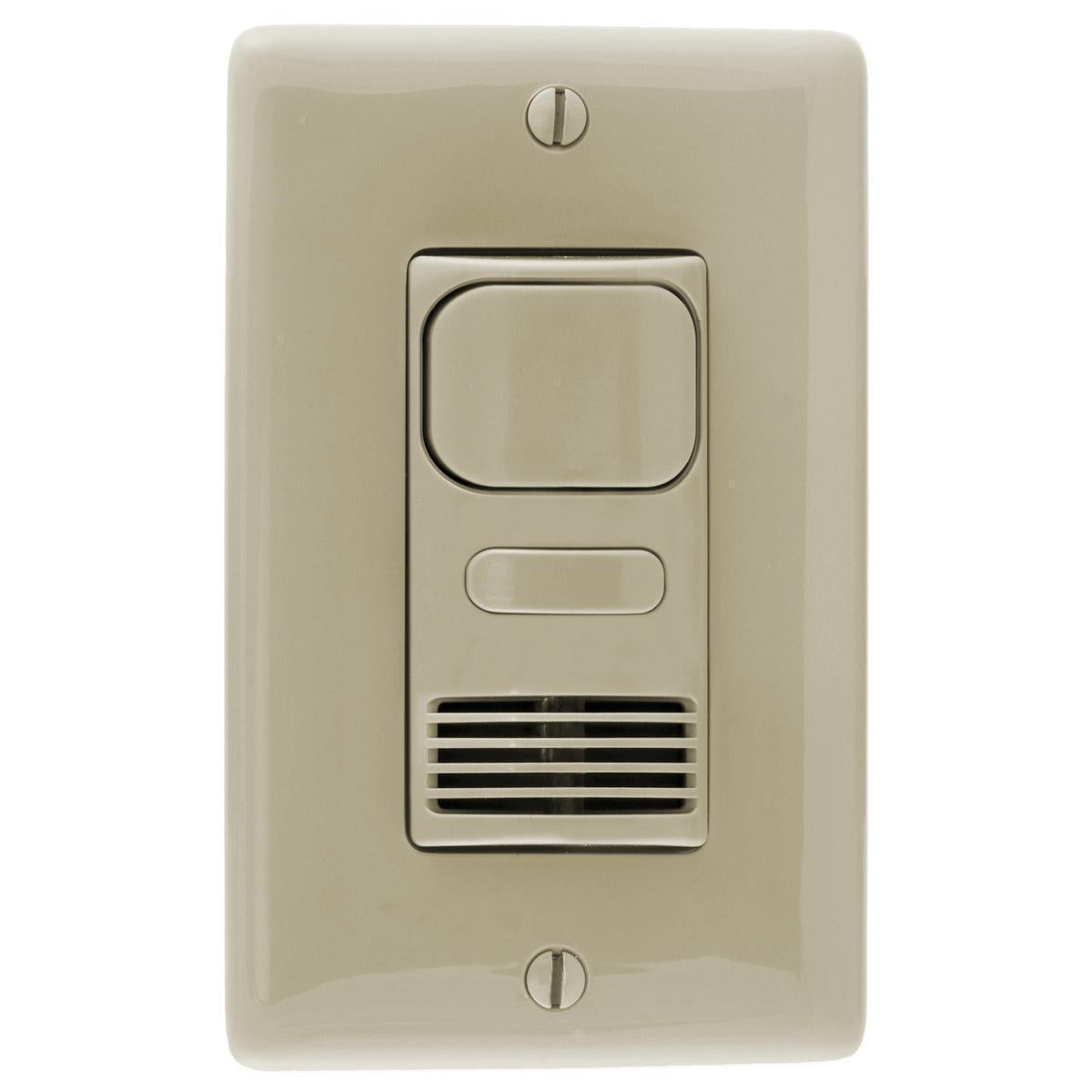

Wiring Device-Kellems AD2000I1 1-Button 1-Circuit 1 Relay Adjustable Dual Technology

Product Description

The Wiring Device-Kellems AD2000I1 is a 1-Button 1-Circuit 1 Relay Adjustable Dual Technology Occupancy Sensor Switch. This device operates at 120/277 VAC and offers efficient control using both Passive Infrared and Ultrasonic technologies. It serves a coverage area of up to 1000 square feet, making it suitable for various applications. The smart microprocessor adapts to environmental changes, ensuring optimal performance. The sensor can be mounted using threads for easy installation.

• Dual technology occupancy sensing
• Adaptive sensitivity and timer adjustment
• Available for fluorescent and incandescent lamp types

Product Highlights

This occupancy sensor offers efficient energy management with automatic and manual control options, suitable for a wide range of settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Button 1-Circuit 1 Relay Adjustable Dual Technology
• Color: Ivory
• Coverage: 1000 sq-ft
• Power Rating: 800/1000/1800 W
• Voltage Rating: 120/277 VAC
• Sensor Type: Passive Infrared/Ultrasonic
• Time Delay: 4 to 30 min
• Temperature Rating: 0 to 40 deg C
• Material: Plastic
• Dimensions: 1.71 in W x 1.69 in D x 4.13 in H
• Connection Type: Thread
• Control Output: Automatic/Manual On
• Mounting Type: Threaded
