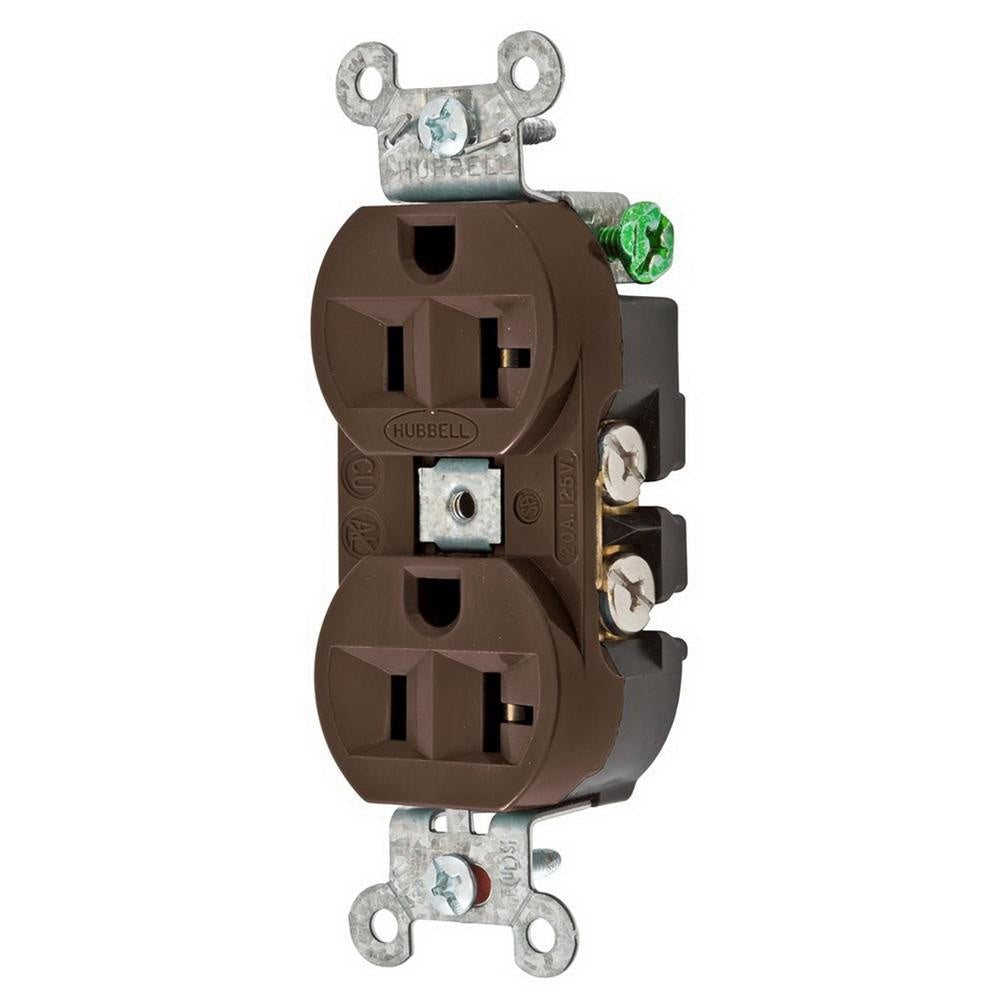

Wiring Device-Kellems 5362B HWD Heavy Duty Standard Straight Blade Receptacle 125 VAC 20 A 5-20R

Product Description

The Wiring Device-Kellems Hubbell-Pro 5362B is a heavy-duty standard straight blade receptacle. It operates at 125 VAC with a current rating of 20 A. This product has two poles and three wires, designed for commercial and industrial use.

• Heavy-duty construction for durability.
• Temperature rating from -40 to 75 degrees Celsius.
• NEMA 5-20R configuration for safety.

Product Highlights

This receptacle features a nylon top and base for strength and a brass contact for reliable conductivity. It supports back and side wiring, making installation straightforward. The design includes a galvanized steel strap for mounting security.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell Wiring Device-Kellems

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R
• Material: Composite/Thermoplastic
• Dimensions: 3.28 inches high x 1.41 inches wide
• Dielectric Strength: 2000 VAC
• Temperature Rating: -40 to 75 degrees Celsius
• Standards: UL 498, CSA C22.2 No.42
