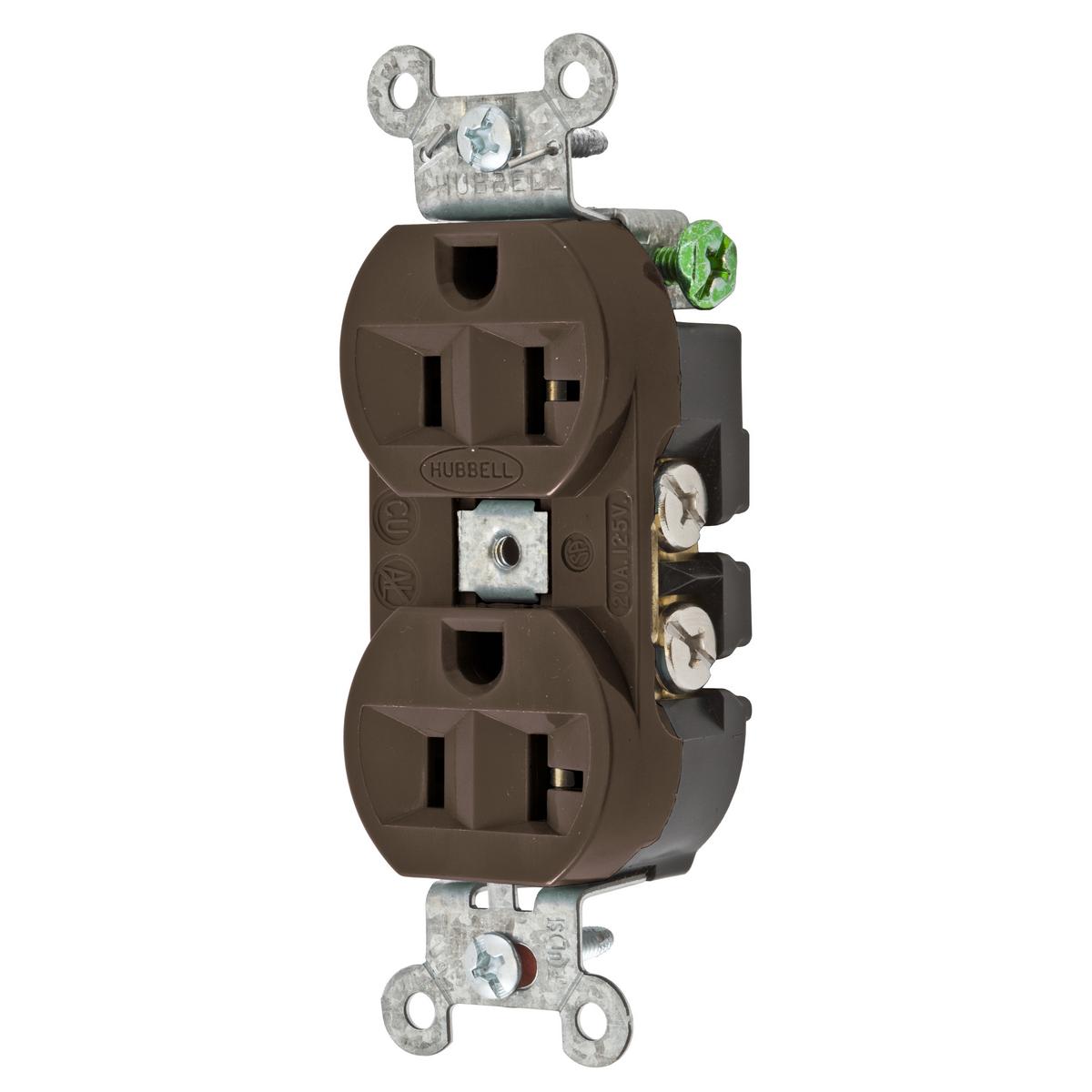

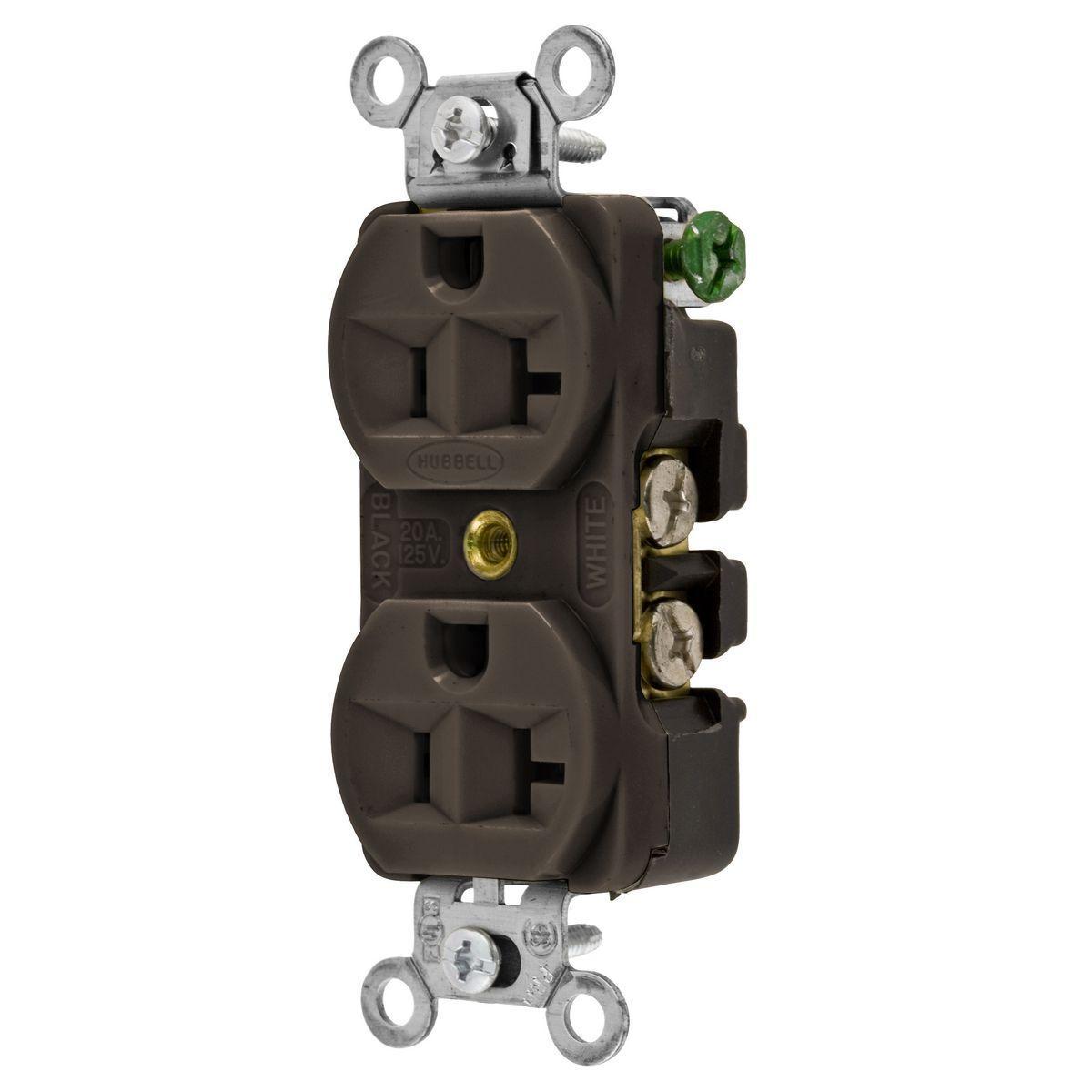

Wiring Device-Kellems 5362B 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount

Product Description

The Wiring Device-Kellems with MPN 5362B is a robust straight blade receptacle designed for demanding use. This duplex receptacle offers a self-grounding feature and is compatible with various electrical applications.

• 1-phase duplex design for reliable performance
• Heavy duty with a voltage rating of one hundred twenty-five VAC
• Self-grounding for safety and convenience

Product Highlights

This receptacle provides durable and reliable connections in commercial and industrial settings. It is built to meet strict specifications and can withstand temperatures from negative forty to seventy-five degrees Celsius.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 1-phase duplex heavy duty self-grounding standard traditional screw mount
• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Material: Thermoplastic/Composite
• Dimensions: 3.28 in L x 1.41 in W x 1.09 in H
• Color: Brown
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Side Wired
• Grade: Commercial/Industrial/Specification
