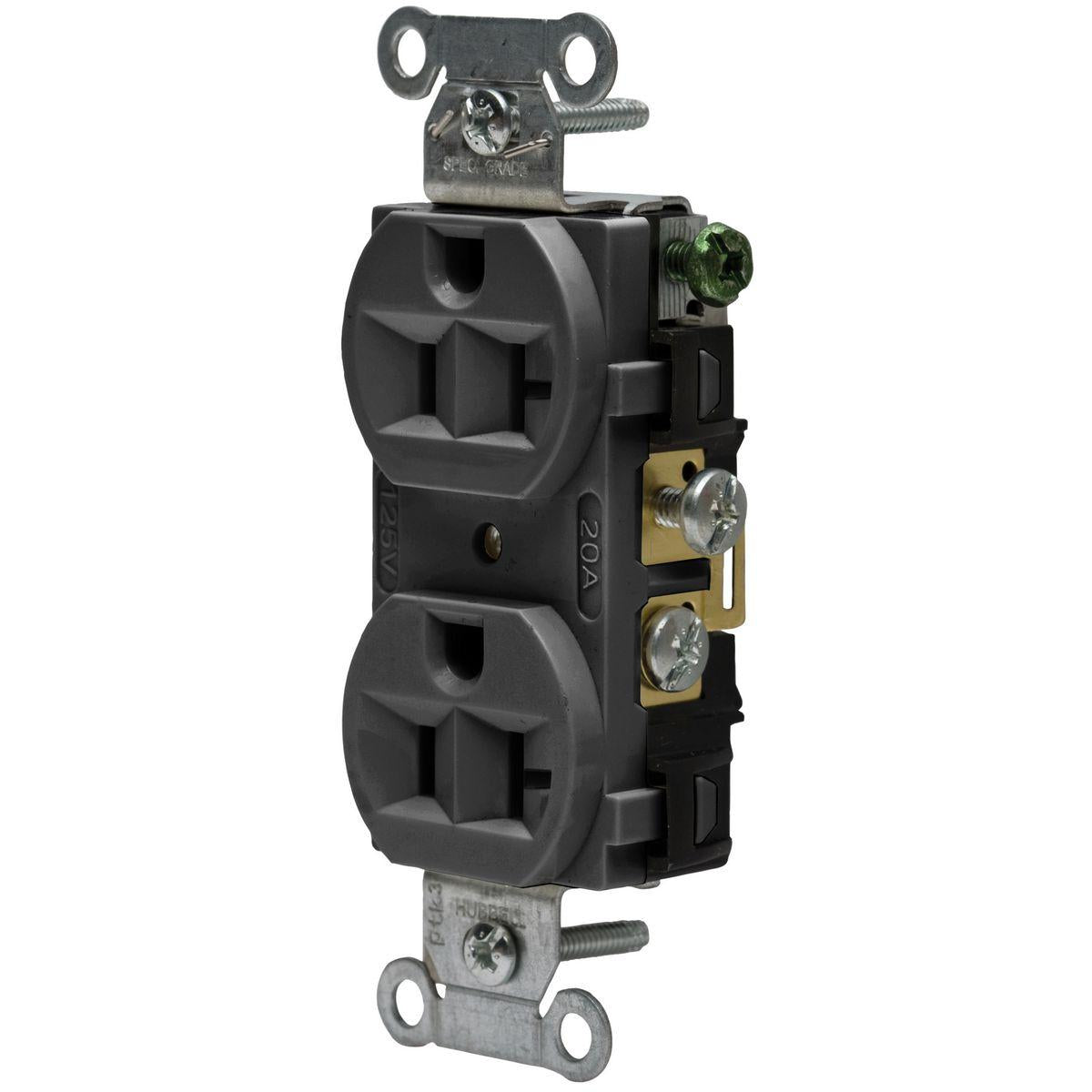

Wiring Device-Kellems 5362ABLK Wiring Device 125 V Standard Straight Blade Receptacle

Product Description

The Wiring Device-Kellems Hubbell-Pro is a standard straight blade receptacle model number 5362ABLK. It is a heavy duty self-grounding receptacle designed for both commercial and industrial use. This 1-phase duplex receptacle operates at one hundred twenty-five volts and supports an amperage rating of twenty amps. It features two poles and three wires for enhanced connectivity.

• Self-grounding for safety
• Operates at 125 volts with a 20 amp rating
• Manufactured from durable composite and thermoplastic materials

Product Highlights

Designed for versatility, this receptacle is suitable for a wide range of applications. It can withstand temperatures ranging from negative forty to seventy-five degrees Celsius. The back and side wire terminal configuration ensures easy installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 1-Phase Duplex Heavy Duty Self-Grounding Standard
• Voltage Rating: 125 V
• Amperage Rating: 20 A
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: NEMA 5-20R
• Material: Composite/Thermoplastic
• Temperature Rating: -40 to 75 deg C
• Dimensions: 1.569 in W x 1.067 in D
