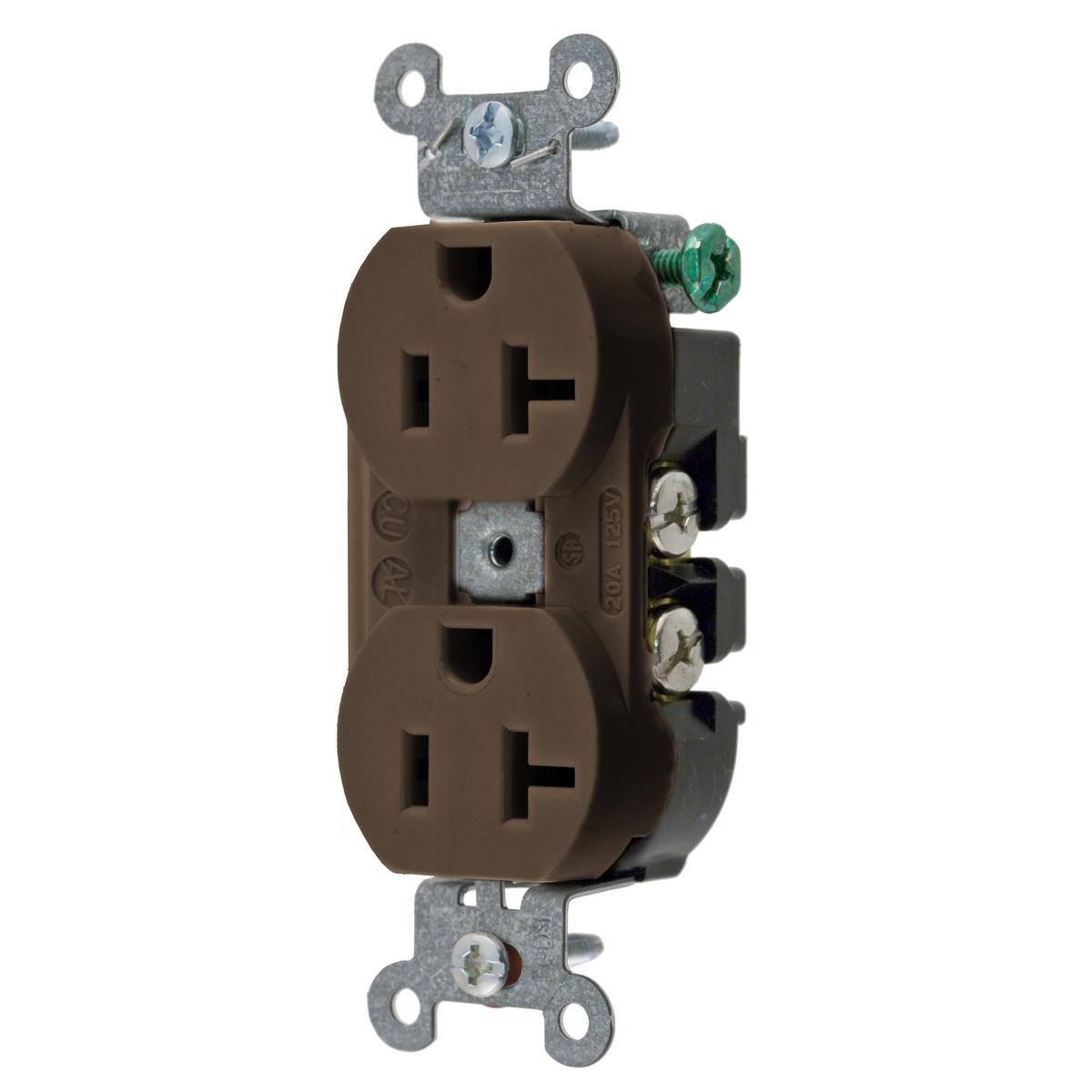

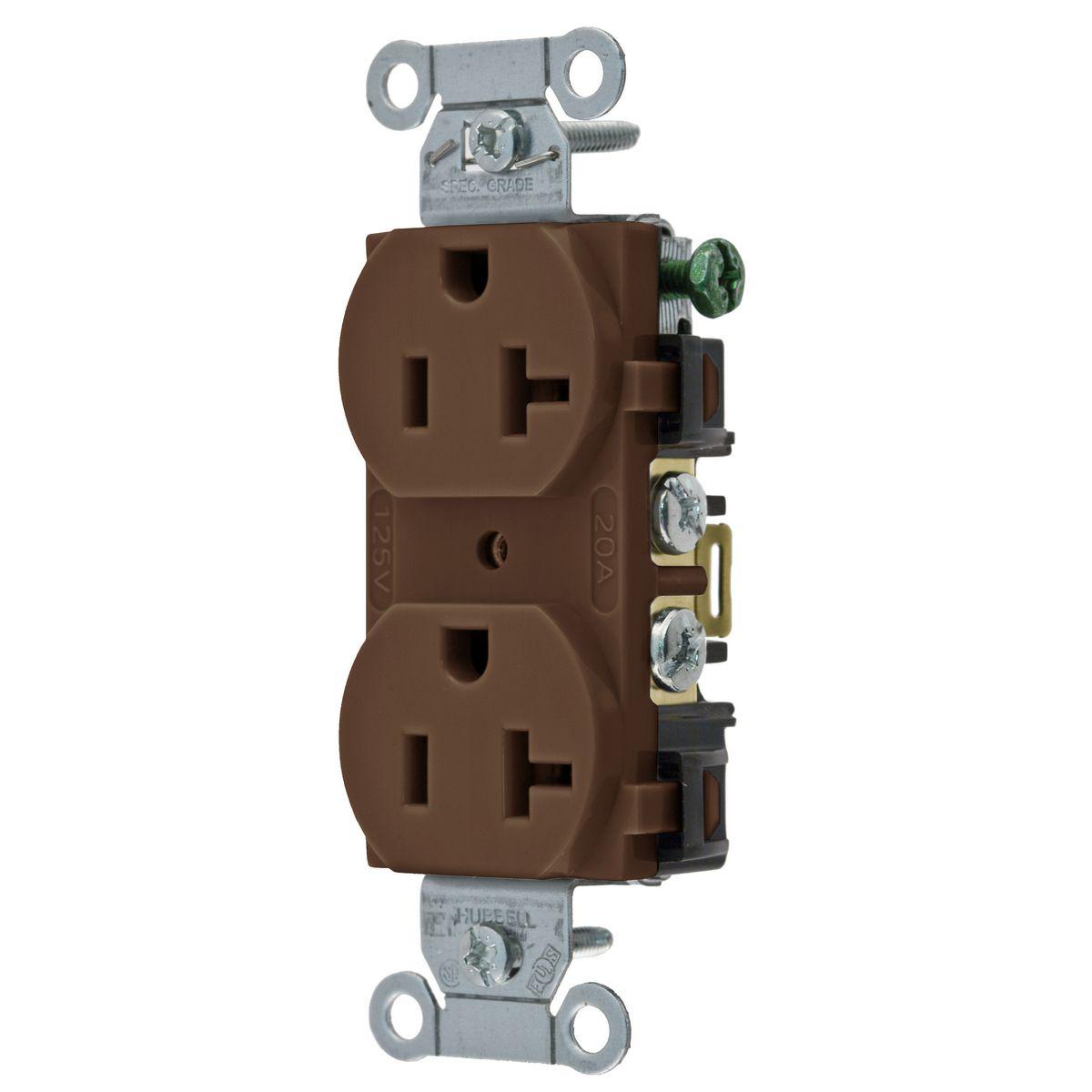

Wiring Device-Kellems 5352AB 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount

Product Description

The Wiring Device-Kellems Hubbell-PRO 5352AB is a reliable straight blade receptacle designed for heavy-duty applications. This device operates at 125 VAC with a maximum current of 20 A and is suitable for commercial and industrial use. It is equipped with a self-grounding feature, ensuring safe and secure connections. The receptacle has a compact design and is constructed from durable thermoplastic and composite materials.

• 1-phase duplex with 2 poles and 3 wires.
• Temperature rating from -40 to 75 degrees Celsius.
• 5-20R NEMA rating for compatibility with standard plugs.

Product Highlights

This receptacle is built for tough environments and frequent use, ensuring longevity and reliability in various applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Grade: Commercial/Industrial

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 20 A
• Horsepower: 1 hp
• NEMA Rating: 5-20R
• Material: Thermoplastic/Composite
• Dimensions: 1.406 inches W x 1.094 inches D x 3.281 inches H
• Number of Poles: 2
• Number of Wires: 3
• Color: Brown
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Side Wired
• Type: 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount
