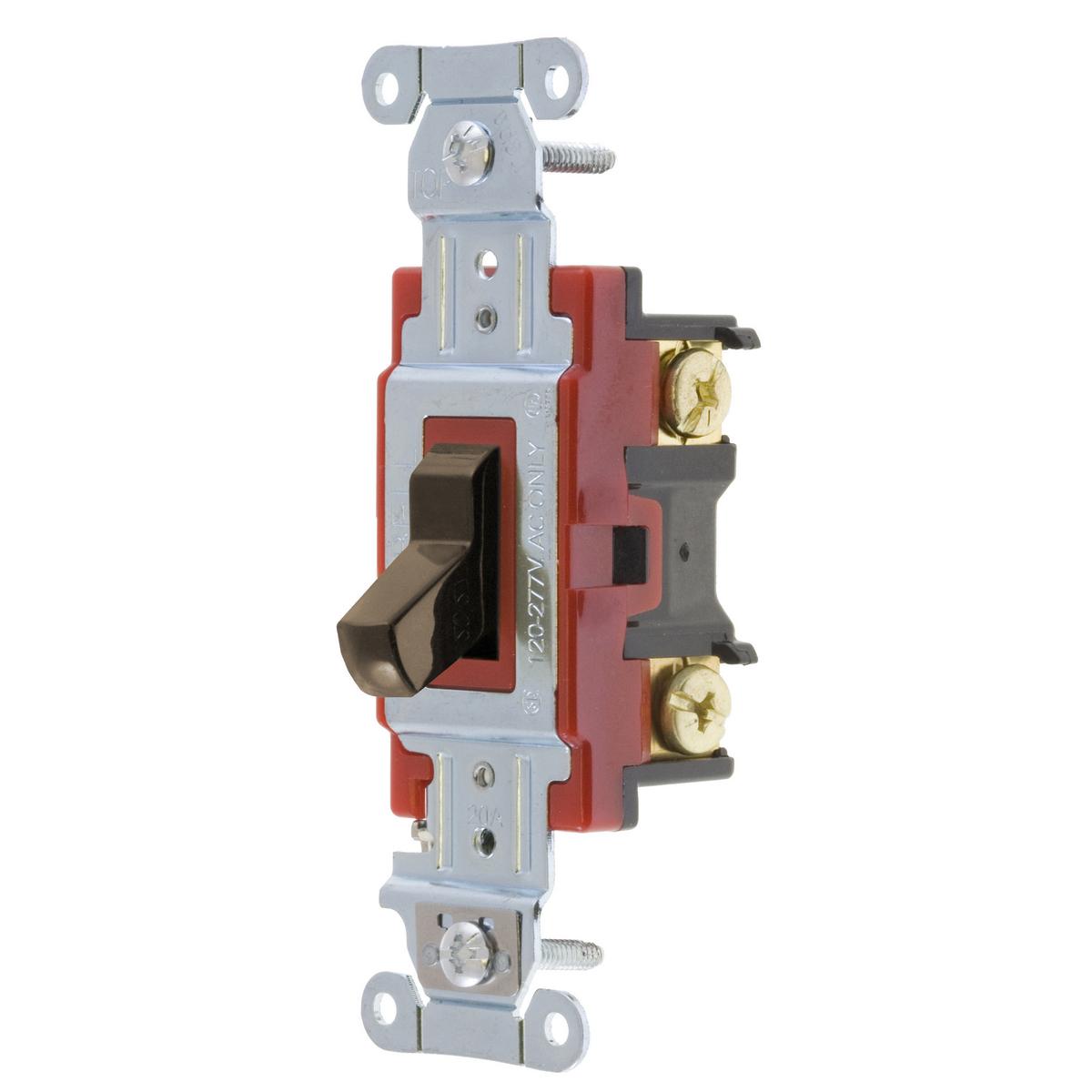

Wiring Device-Kellems 1224B Toggle Switch 4-Way Heavy Duty Standard 120 to 277 VAC

Product Description

The Wiring Device-Kellems 1224B is a 4-way heavy duty toggle switch designed for AC applications. This switch operates at a voltage range of 120 to 277 VAC and supports a current of twenty amps, providing a power rating of five thousand five hundred forty watts. The switch features a two-position contact configuration, making it suitable for various applications.

• Type: 4-Way Heavy Duty Standard
• Operating temperature: -40 to 75 degrees Celsius
• High cycle durability: 50,000 operating cycles

Product Highlights

This switch is designed for reliable performance in demanding environments. The thermoplastic housing provides durability, while the threaded mounting and back/side wire terminals facilitate easy installation.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Color: Brown
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Thermoplastic
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50,000 cycles
• Terminal Type: Back/Side Wire
• Power Rating: 5540 W
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Contact Configuration: 2-Position
