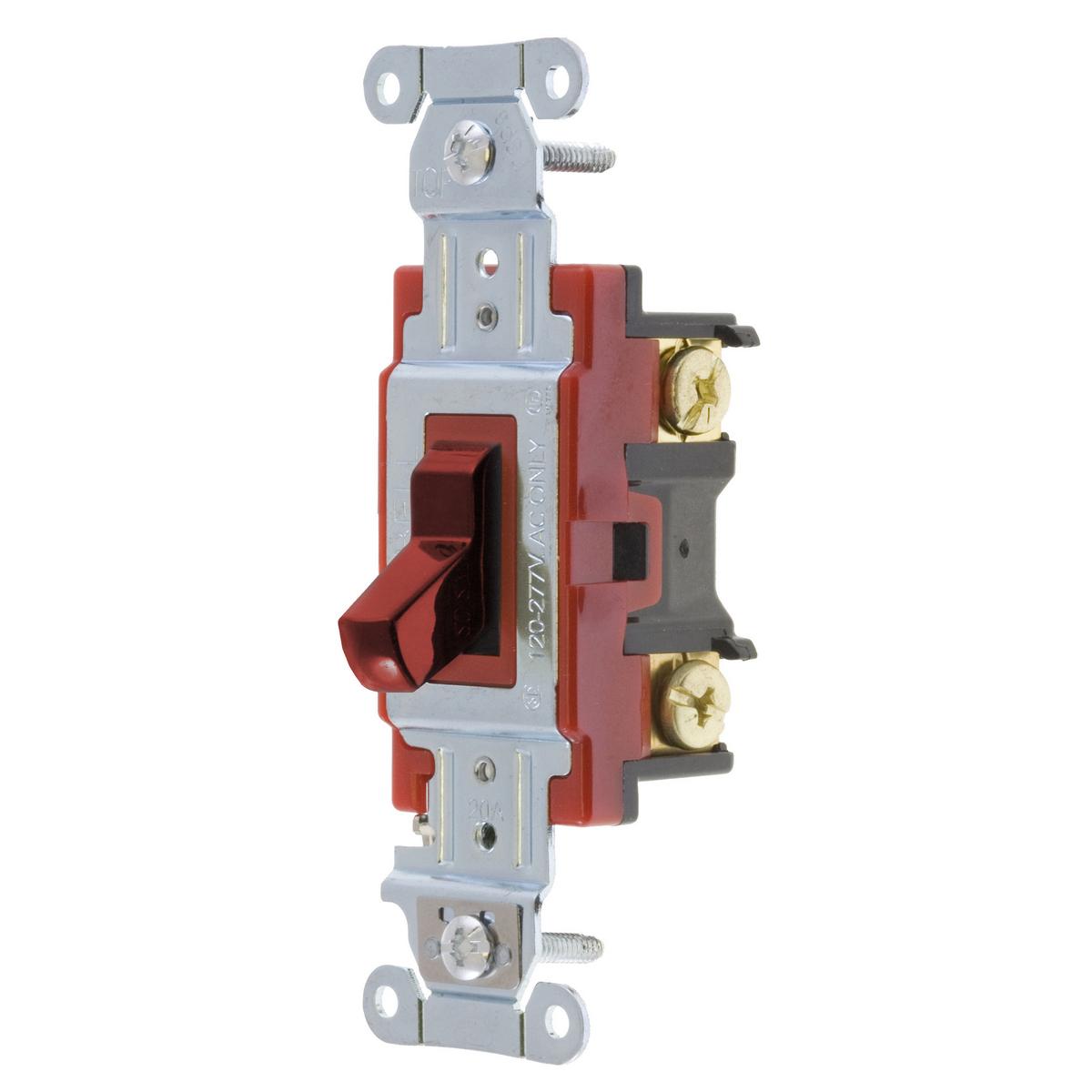

Wiring Device-Kellems 1223R Toggle Switch 3-Way 2-Position Heavy Duty Standard

Product Description

The Wiring Device-Kellems Toggle Switch, model 1223R, offers reliable performance for various electrical applications. It operates at a voltage range of 120 to 277 VAC with a current rating of 20 A and a power rating of 5540 W. This switch features a toggle actuator with a 3-way, 2-position contact configuration, suitable for heavy-duty use.

• Durable thermoplastic construction
• Compatible with back/side wire terminal connections
• Rated for fifty thousand operating cycles

Product Highlights

This switch is designed for easy installation with threaded mounting. Use it in residential, commercial, or industrial settings where reliable performance is essential.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Actuator: Toggle
• Material: Thermoplastic
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Terminal Type: Back/Side Wire
• Type: 3-Way 2-Position Heavy Duty Standard
• Environmental Conditions: -40 to 75 deg C
• Dimensions: 4.18 x 1.49 x 1.83 in
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
