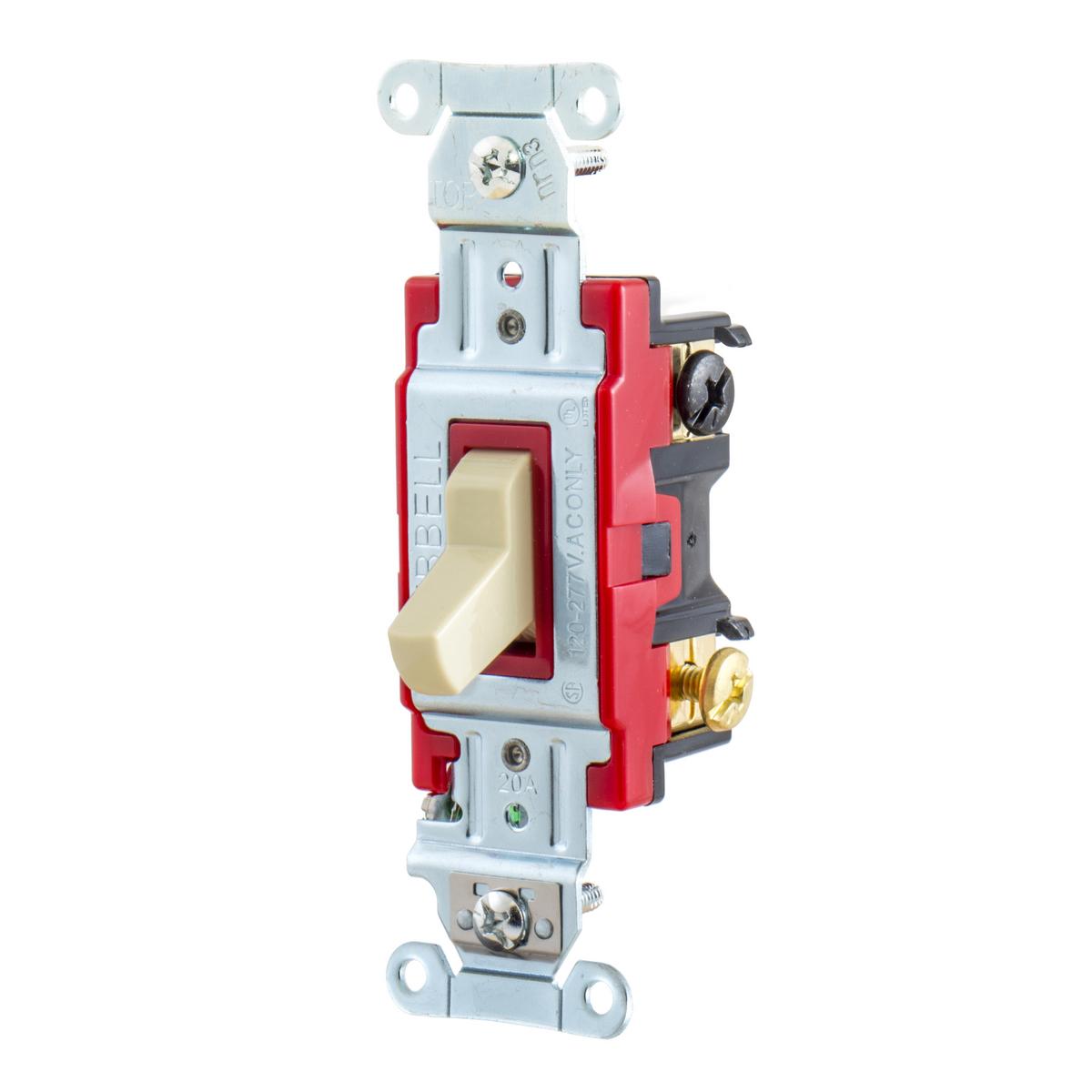

Wiring Device-Kellems 1223I Toggle Switch 2-Position 3-Way General Purpose Industrial Grade Standard

Product Description

The Wiring Device-Kellems 1223I is a toggle switch designed for general-purpose use. It operates at a voltage range of 120 to 277 VAC. With a power rating of 5540 watts and 20 amperes, this switch is built to handle demanding applications. This switch features a two-position contact configuration and is designed for threaded mounting. It utilizes back and side wire terminals for easy installation.

• Durable nylon toggle and thermoset body
• Rated for 50000 operational cycles
• Environmental tolerance from -40 to 75 degrees Celsius

Product Highlights

The Wiring Device-Kellems 1223I is suited for industrial applications requiring reliable performance. Its robust design ensures longevity in various environments.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Type: 2-Position 3-Way General Purpose Industrial Grade Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
• Number of Poles: 1
• Operating Cycles: 50000 cycles
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Mounting: Threaded
• Material: Nylon Toggle/Thermoset Body
• Environmental Conditions: -40 to 75 degrees Celsius
