Wiring Device-Kellems 1222I Toggle Switch 2-Position Heavy Duty Standard

Product Description

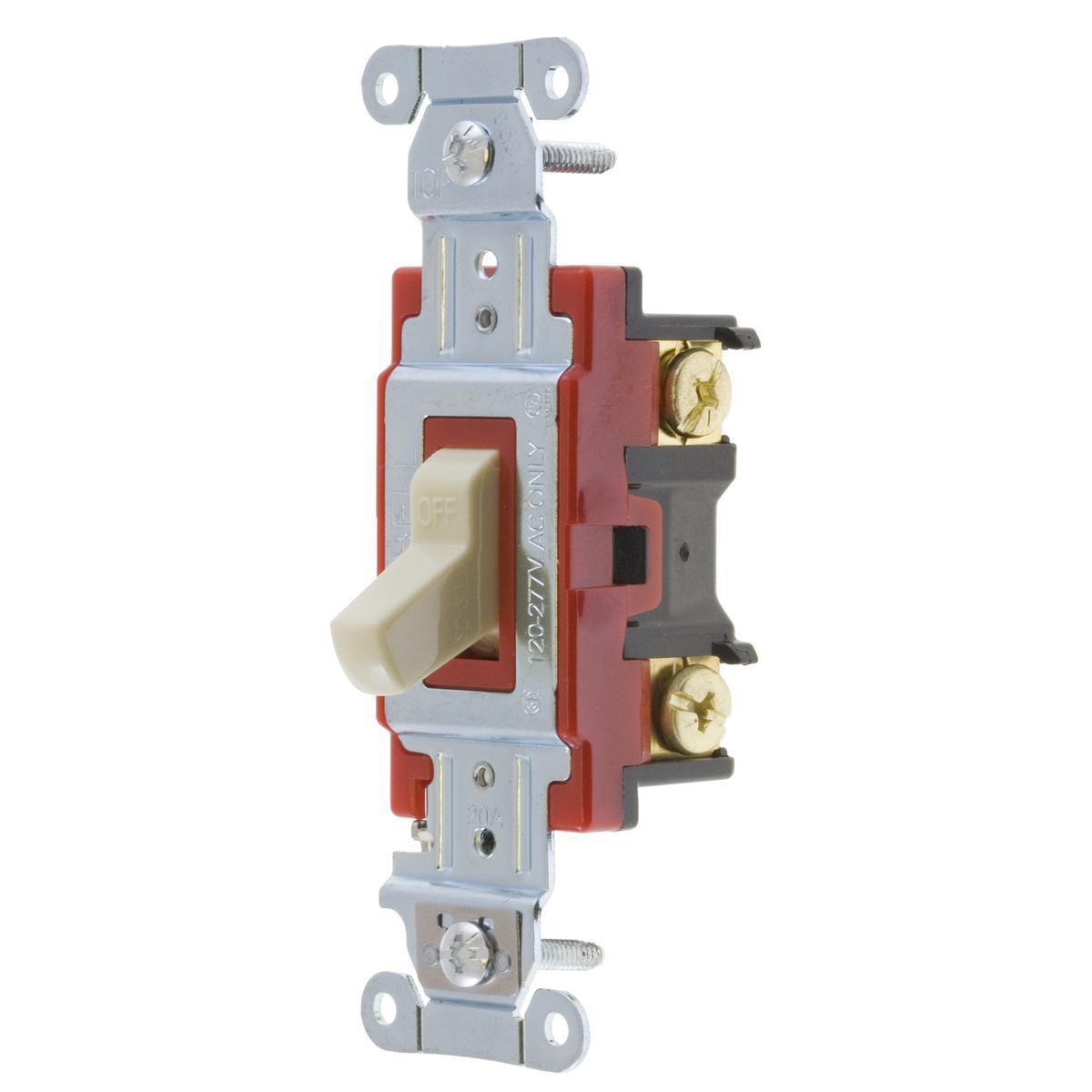

The Wiring Device-Kellems Hubbell-PRO Toggle Switch, model 1222I, is designed for heavy-duty applications. It operates within a voltage range of 120 to 277 VAC and is rated for twenty amps with a total power capacity of five thousand five hundred forty watts. This switch features a two-position contact configuration for reliable operation.

• Rated for 20 A at 120 to 277 VAC
• Back and side wire terminal options
• Compatible with a variety of environmental conditions from -40 to 75 degrees Celsius

Product Highlights

This switch is suitable for use in various electrical systems, making it ideal for residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• Brand: Wiring Device-Kellems

Technical Specifications

• Type: 2-Position Heavy Duty Standard
• Actuator: Toggle
• Color: Ivory
• Dimensions: 4.18 inches x 1.49 inches x 1.83 inches
• Environmental Conditions: -40 to 75 degrees C
• Material: Nylon/Thermoplastic
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50,000 cycles
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
• Terminal Type: Back/Side Wire
