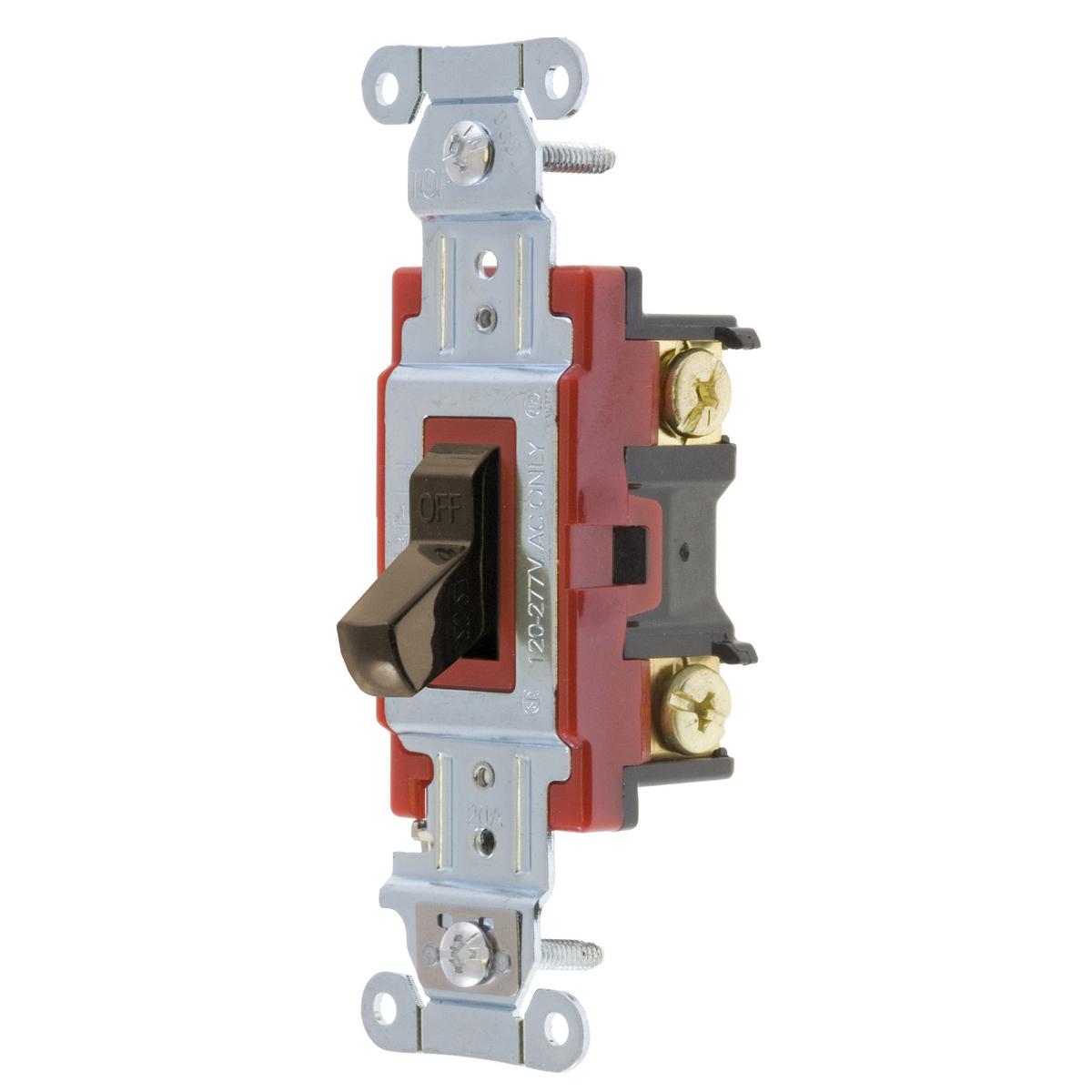

Wiring Device-Kellems 1222B Toggle Switch 120 to 277 VAC 2-Position Heavy Duty Standard

Product Description

The Wiring Device-Kellems by Hubbell is a reliable toggle switch designed for heavy-duty use. The MPN is 1222B, and it operates at a voltage range of 120 to 277 VAC with a power rating of 5540 Watts. This toggle switch features a two-position contact configuration, which allows for easy and straightforward operation.

• Two-position heavy-duty standard toggle switch
• Rated at 20 A and 5540 W
• Compatible with environmental conditions ranging from -40 to 75 degrees Celsius

Product Highlights

This toggle switch is made from nylon and thermoplastic materials for durability. The threaded mounting and back/side wire terminal enable easy installation. The switch can handle up to fifty thousand operating cycles, making it suitable for various applications in residential and commercial settings.

Product Information

Standard Information

• Brand: Wiring Device-Kellems
• Manufacturer: Hubbell

Technical Specifications

• Actuator: Toggle
• Color: Brown
• Dimensions: 4.18 x 1.49 x 1.83 inches
• Environmental Conditions: -40 to 75 degrees Celsius
• Material: Nylon/Thermoplastic
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50000 cycles
• Terminal Type: Back/Side Wire
• Type: 2-Position Heavy Duty Standard
• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 A
• Power Rating: 5540 W
• Contact Configuration: 2-Position
