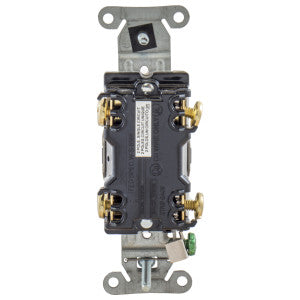

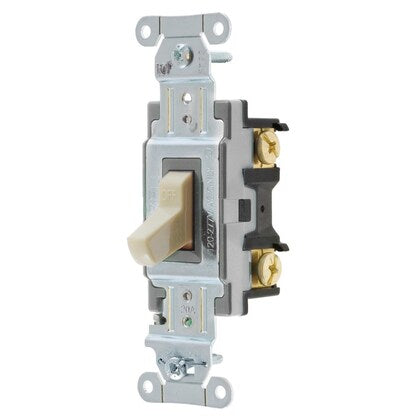

Wiring CSB220I Toggle Switch 20A 120/277V Double Pole

Product Description

The WIRING CSB220I is a double pole toggle switch designed for commercial applications. Rated for 20A and 120 to 277 VAC, this switch features back and side wiring options. Constructed with a thermoset body and nylon toggle, it is UL and CSA approved and suitable for use in temperatures ranging from -40 to 75 Deg C.

• 20 Ampere Current Rating
• 120 to 277 VAC Voltage Rating
• Double Pole Operation

Product Highlights

Ideal for commercial use, this toggle switch offers reliable performance with a durable construction and broad temperature range.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: CSB220I
• Country of Origin: China

Technical Specifications

• Type: Toggle
• Current Rating: 20 Ampere
• Voltage Rating: 120 to 277 VAC
• Power Rating: 5540 W
• Operation Type: Double Pole
• Material: Thermoset (Body), Nylon (Toggle)
• Wiring: Back, Side
• Application: Commercial
• Approval: UL, CSA
• Temperature Rating: -40 to 75 Deg C
• Includes: Mounting Screw
• Actuator: Toggle
• Mounting: Threaded
• Number of Poles: 2
• Operating Cycles: 50000 cycles
• Terminal Type: Back/Side Wire
• Amperage Rating: 20A
• Contact Configuration: 2-Position
• Volts AC: 120, 277
• Amps: 20
• Standard: UL Listed
• Action: Positive Snap
• AWG Range: 14 - 10 AWG
• Rated Voltage: 120/277V ac
• Style: Double Pole
• Dielectric Strength: Withstands 1500V AC Minimum
