Wiring CS8164C lkg conn-3p4w050a480v

Product Description

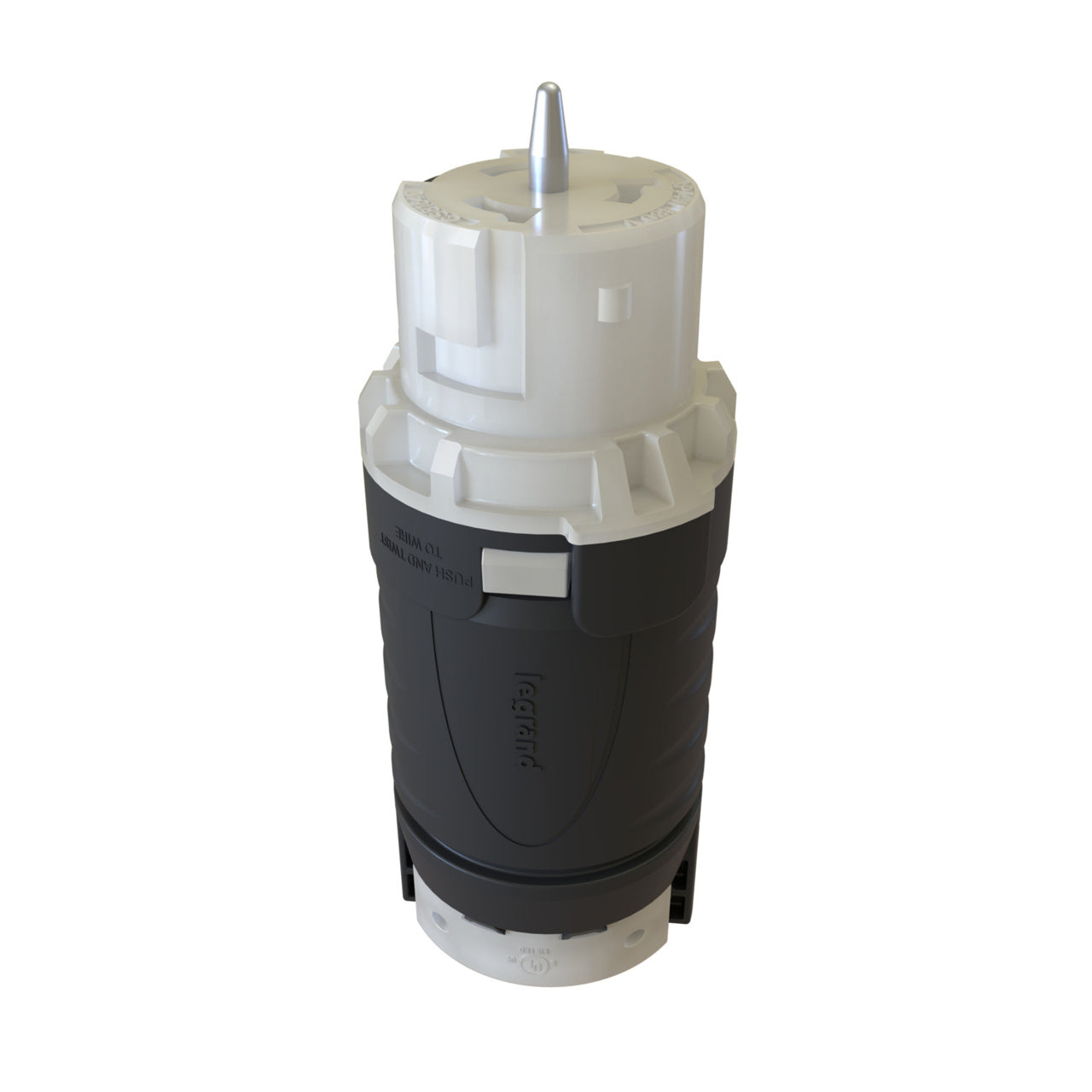

The WIRING CS8164C is a locking connector designed for secure and dependable connections. This polarized connector features impact and heat-resistant construction. Rated at 480 VAC 3-Phase and 50 Ampere, it includes 3 poles and 4 wires with a grounding type. It is suitable for commercial and industrial applications.

• Impact and heat-resistant nylon housing with thermoplastic polyester interior.
• Rated for 480 VAC 3-Phase and 50 Ampere.
• Approved to UL 94/498 and CSA C22.2 standards with an IP20 enclosure.

Product Highlights

Durable locking connector with robust construction, ideal for industrial applications requiring secure and reliable power connections.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: CS8164C
• Country of Origin: Mexico

Technical Specifications

• Type: Polarized
• Constructional Feature: Impact Resistant, Heat Resistant
• Voltage Rating: 480 VAC 3-Phase
• Current Rating: 50 Ampere
• Number of Poles: 3
• Number of Wires: 4
• Ground Type: Grounding
• Material: Nylon Housing, Thermoplastic Polyester Interior
• Cord Size: 0.75 to 1.125 Inch
• Approval: UL 94/498, CSA C22.2
• Enclosure: IP20
• Temperature Rating: -40 to 60 Deg C
• Application Sector: Commercial, Industrial
• Product Line: Pass & Seymour
• Country Of Origin: Mexico
• Standard: RoHS, UL UL498, cULus E146159
• UPC Number: 785007442472
• Product Height US: 2.86 in
• Product Length US: 6.8 in
• Product Width US: 2.86 in
• cULus ListingNumber: E146159
• cULus Listed: Yes
• RoHS Compliant: Yes
• Amperage: 50 A
• Contact Material: Brass
• Phase: Three
• Voltage: 480.0 V
