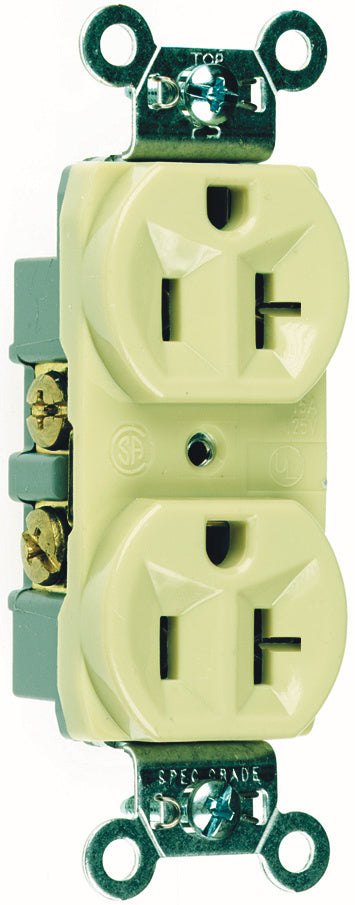

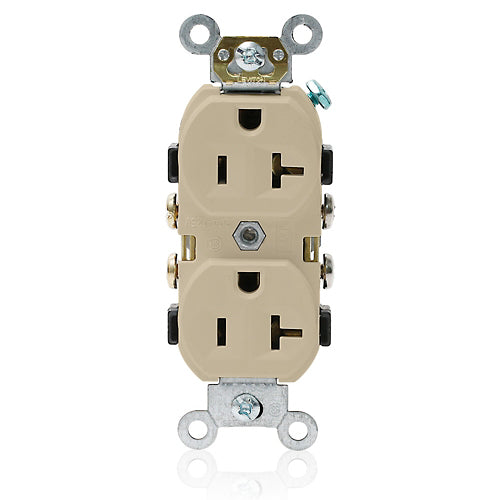

WIRING CR20I 20A 125V Commercial Grade Duplex Receptacle

Product Description

The WIRING CR20I is a commercial grade duplex receptacle for indoor use. Designed for reliable performance, this outlet is rated for twenty amperes and one hundred twenty-five volts. It offers a side wire connection and is made from impact-resistant nylon with a thermoplastic back body.

• Rated for 20A and 125V
• Self-grounding and corrosion-resistant plated steel strap
• Accepts #14 - #10 AWG solid or stranded copper wire

Product Highlights

This receptacle is suitable for various applications and incorporates features that ensure durability and safety in commercial environments.

Product Information

Standard Information

• Brand: WIRING
• MPN: CR20I

Technical Specifications

• Amperage: 20 A
• Voltage: 125 V
• Application Sector: Commercial
• Color: Ivory
• Connection Location: Side Only
• Country Of Origin: Mexico
• cULus Listed: Yes
• Dielectric Voltage: Withstands 2000V per UL498
• Face Material: Thermoplastic
• Body Material: Thermoplastic
• Grounding: Self-Grounding
• Impact Resistant: Yes
• Indoor/Outdoor: Indoor
• Mounting Type: Box
• NEMA Configuration Code: 5-20R
• Number of Poles: 2
• Number of Receptacles: 2
• Number of Wires: 3
• Operating Temperature: -40°C to 60°C
• Outlet Type: Straight Blade
• Standard: UL 498
• Terminal Accommodation: 14-10 AWG
• Termination: Side Wire
• Wire Connection Type: Screw Terminals
• Product Depth: 0.78 inches
• Product Height: 2.635 inches
• Product Width: 1.322 inches
