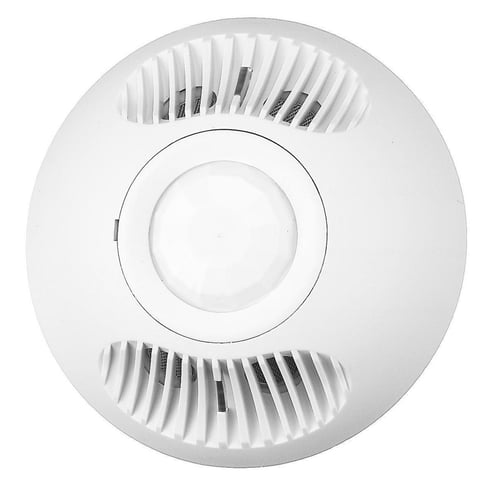

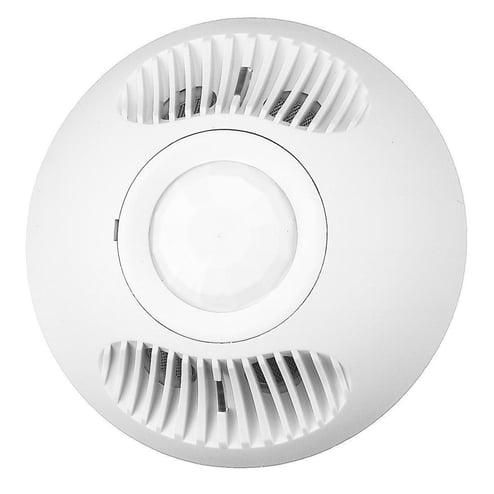

Wiring ATD2000C Ceiling Sensor 2000 Sq Ft

Product Description

The WIRING ATD2000C is a ceiling sensor with adaptive technology that utilizes both ultrasonic and passive infrared sensor types. It provides an area coverage of 2000 Sq Ft at 8 to 12 Ft mounting height. Suitable for use in classrooms, conference rooms, executive offices, and open office spaces. The time delay is adjustable from 8 to 40 minutes, with an 8-second test option.

• Ceiling Sensor
• Adaptive Technology
• Ultrasonic and Passive Infrared Sensor

Product Highlights

Ceiling mounted sensor with dual technology for reliable occupancy detection in various office environments.

Product Information

Standard Information

• Brand: WIRING
• Manufacturer Part Number: ATD2000C
• Country of Origin: China

Technical Specifications

• Type: Adaptive Technology
• Sensor Type: Ultrasonic, Passive Infrared
• Voltage Rating: 24 VDC
• Area Coverage: 2000 Sq Ft at 8 to 12 Ft Mounting H
• Time Delay: 8 to 40 Min, 8 Sec (Test)
• Terminal Type: 3-Wire Lead
• Finish: Office White
• Mounting: Ceiling
• Application: Classroom, Conference Room, Executive Office, Open Office Space
• Approval: UL 244A/94 V-0, UL (Canada and US), CEC
• Housing Material: ABS Plastic
• Lens Material: Polyethylene
• Operating Temperature: 32 to 104 Deg F
• Viewing Angle: 360 deg
• Coverage: 2000 sq-ft
• Connection Type: Wire Lead
• Material: ABS
• Amperage Rating: 33 mA
• Temperature Rating: 32 to 104 deg F
• Series: ATD
• Response Frequency: 32 kHz
• Item model number: ATD2000C
• Batteries Required?: No
