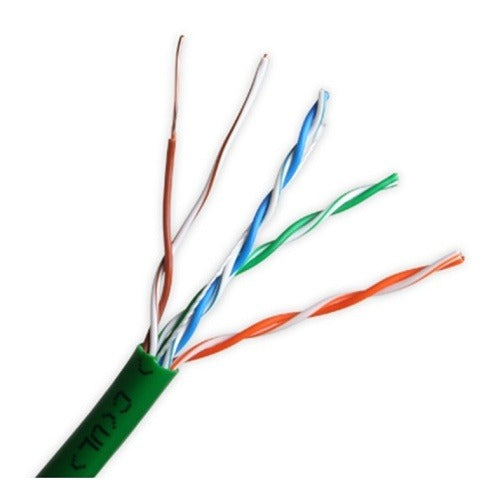

Wirepath NST-CAT5E-1000-GRN Cat5e Riser Cable 1000 Ft

Product Description

The WIREPATH NST-CAT5E-1000-GRN is a 1000-foot spool of Category 5e riser-rated (CMR) unshielded twisted pair cable supplied in a nest-in-box format for clean, tangle-free pulls. Cat5e riser cable is the standard copper data cable for structured wiring installations in commercial and residential buildings. The riser rating qualifies it for vertical runs between floors in non-plenum spaces. Low-voltage installers and network technicians use this cable for Ethernet data drops, VoIP phone systems, access control wiring, and similar structured cabling applications. The green jacket aids in color-coded cable management and circuit identification during and after installation.

This cable is suited for horizontal and vertical structured cabling runs in office buildings, schools, multi-unit residential projects, and light commercial facilities. The nest-in-box packaging allows the cable to feed out from the center without tangling, which speeds up pulls through conduit or open framing. Typical applications include 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet networks operating at up to 100 MHz. Low-voltage contractors, AV integrators, and data cabling technicians are the primary installers.

Key Features

• 1000-foot continuous length reduces splice points on long runs
• Riser (CMR) rating qualifies for vertical inter-floor runs in non-plenum environments
• Nest-in-box format allows center-pull feeding for smooth, kink-free installation
• Green jacket supports color-coded cable plant organization
• Cat5e specification supports Gigabit Ethernet at up to 100 MHz bandwidth

Compatibility

Designed as a standard Cat5e UTP replacement or new-installation cable compatible with 110-style patch panels, keystone jacks, and RJ45 connectors that accept 24 AWG solid-conductor Cat5e cable in riser-rated structured wiring systems.

Installation Notes

Installation should be performed by a licensed low-voltage contractor or qualified network cabling technician in accordance with ANSI/TIA-568 structured cabling standards and applicable local codes. Do not exceed the minimum bend radius or pull tension rating for Cat5e cable, as doing so can degrade electrical performance. Riser-rated cable must not be used as a substitute for plenum-rated (CMP) cable in air-handling spaces. Terminate both ends with properly rated Cat5e-compatible hardware and test each run with a cable certifier to verify insertion loss and return loss compliance.
