Description

Product Description

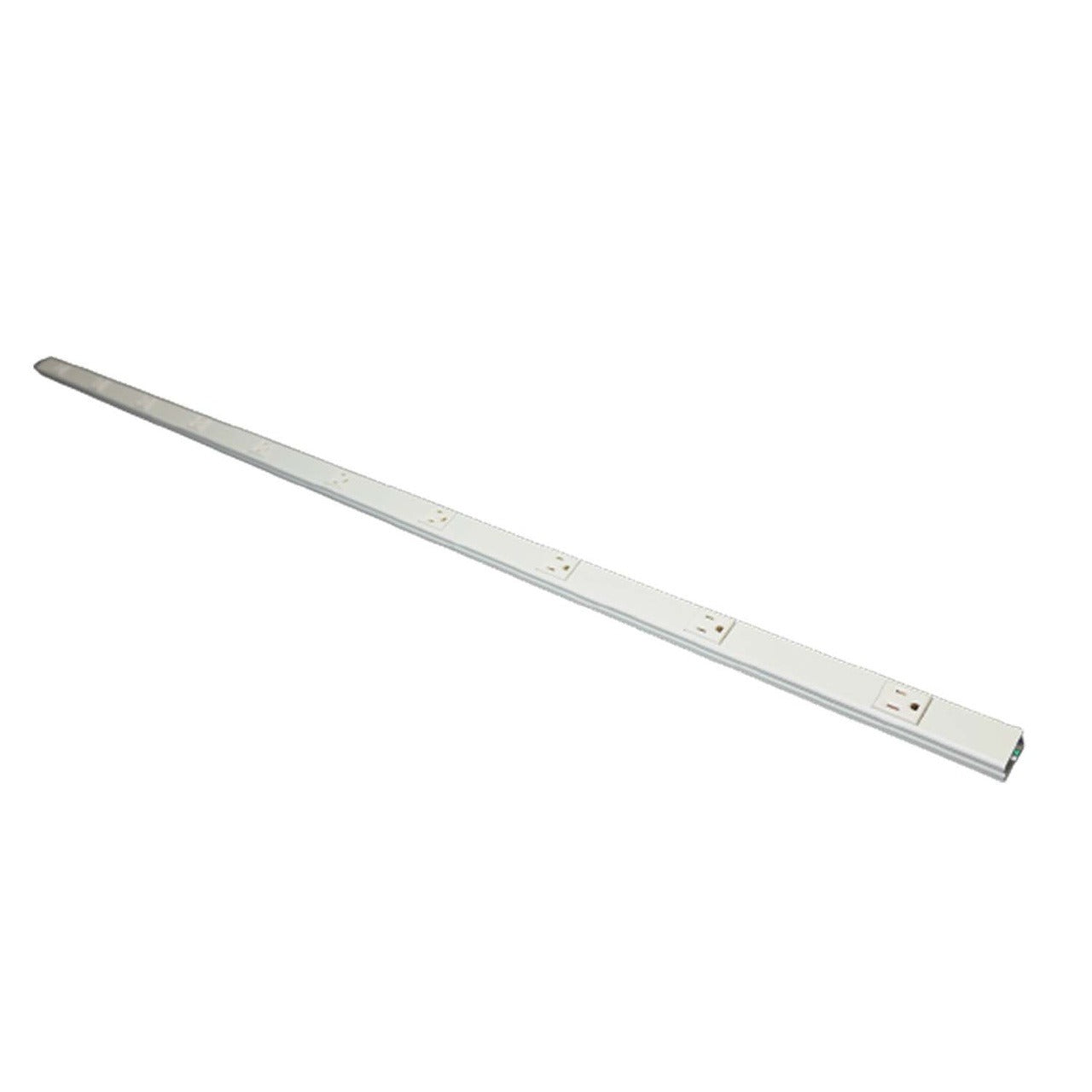

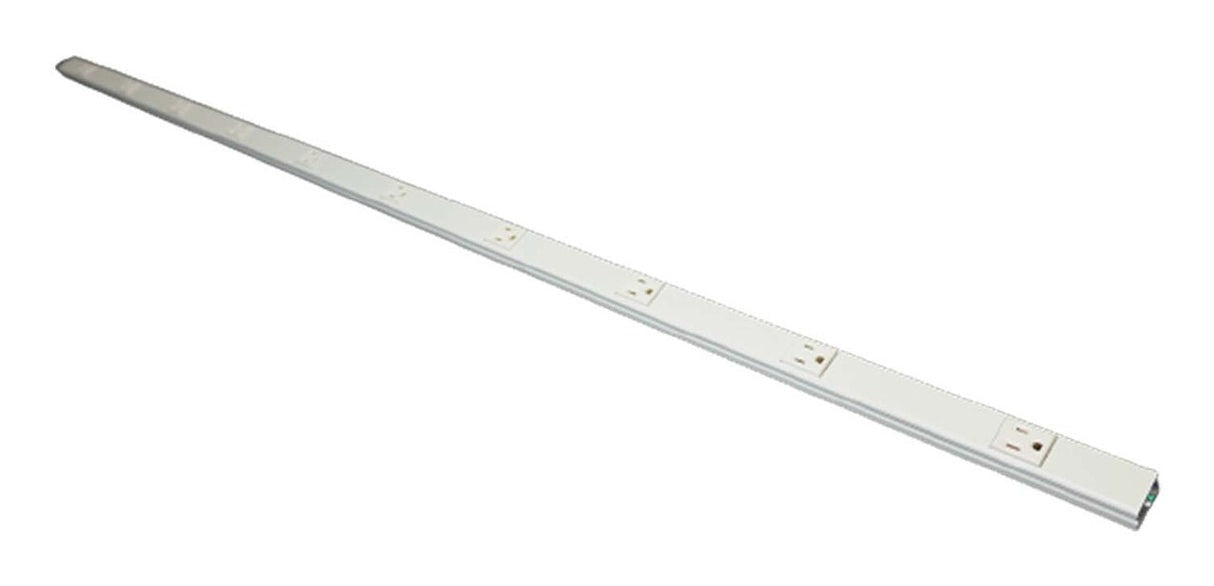

Wiremold WM BK20GB306 is a Plugmold multioutlet raceway section designed for surface-mounted power distribution in dry interior locations. Part of the 2000 Series steel raceway, it accepts factory-wired 15A, 125V receptacles and supports single, alternating, or isolated-ground configurations. The ScuffCoat finish provides scratch resistance and the assembly supports single- and dual-gang device boxes with multiple receptacle spacing and snapicoil harness options.

  • Steel 2000 Series raceway for surface-mounted power distribution in dry interior locations
  • Factory-wired sections available with 15A, 125V receptacles; this configuration supplied as 3 ft length
  • ScuffCoat scratch-resistant finish; receptacle spacing options (6", 9", 12", 18") and snapicoil harness spacing (12", 18", 30"); supports single/dual-gang boxes

Product Highlights

Surface-mount Plugmold multioutlet; 15A/125V; 2000 Series steel raceway; RoHS and cULus listings

Product Information

Standard Information

  • Brand: WIREMOLD
  • Manufacturer Part Number: WM BK20GB306
Technical Specifications
Brand
Wiremold
Manufacturer Part Number
WM BK20GB306
Catalog Number
BK20GB306
Product Type
Plugmold multioutlet system
Series
2000 Series
Material
Steel raceway
Enclosure Type
Steel
Finish
ScuffCoat (scratch-resistant); gray baked enamel option
Mounting Type
Surface mount
Length
3 ft (36 in)
Factory-wired lengths available
3 ft, 5 ft, 6 ft
Voltage
125 V
Amperage
15 A
Wiring Configuration
Single circuit
Receptacle types
Single circuit, alternating circuit, isolated ground
Receptacle spacing options
Center spacing 6", 9", 12", 18"; snapicoil harness spacing 12", 18", 30"
Supported Boxes
Single- and dual-gang boxes
Recommended Location
Dry interior locations
Weight
1.95 lb
Width
1.00 in
GTIN
00786776074499
Certifications and Standards
RoHS; cULus; USMCA; cULus Listed Base & Blank Cover File E4376 Guide RJBT; Multioutlet Assemblies File E15191 Guide PVGT; Fittings File E41751 Guide RJPR; Meets Article 386 and Article 380 of NEC; Meets CEC Section 12-3032
