Product Description

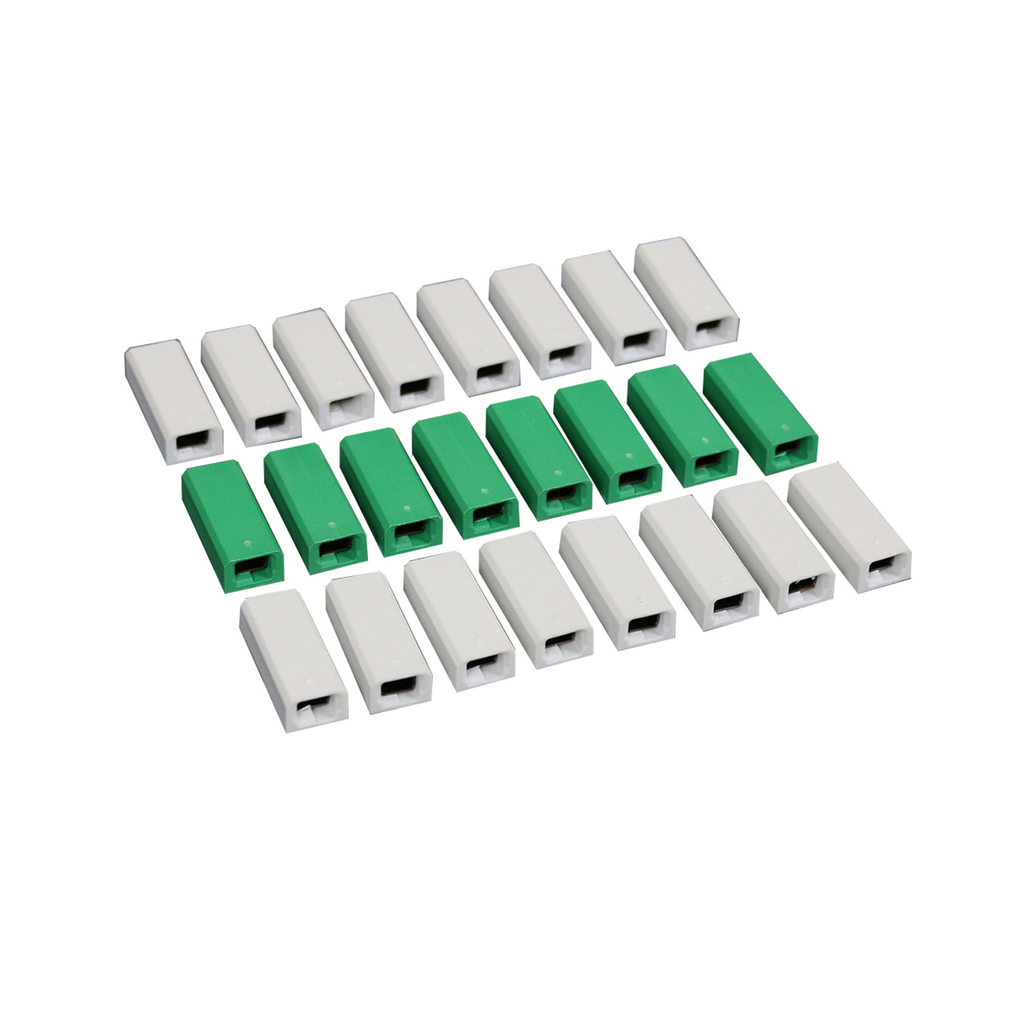

The Wiremold W30/W30G Connector is designed for the common connection of two, three, or four solid copper conductors. This product is suitable for No. 12 or No. 14 wire sizes and is packaged with twenty-four pieces in each carton, consisting of sixteen W30 connectors and eight W30G connectors. The W30G variant is specifically used for equipment grounding for similar conductor types, ensuring safety and reliability.
- Common connection for two to four conductors
- Compatible with No. 12 and No. 14 AWG wire
- Pack of twenty-four with multiple usage options
Product Highlights
The connectors are made of durable materials and are equipped to handle up to 300 volts and 20 amps, making them suitable for various applications in commercial, residential, and office environments.
Product Information
Standard Information
-
Manufacturer: Wiremold
-
MPN: W30/W30G
Technical Specifications
-
Type: 1-Phase Pressure Type
-
Dimensions: 1-5/16 inches
-
Operating Voltage: 300 volts
-
Rated Amperage: 20 amps
-
Material: Steel
-
Connection Method: Crimp
-
Color: Green
-
UNSPSC Code: 39131709
