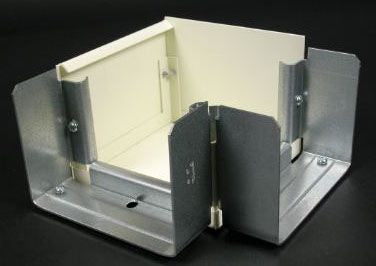

Wiremold V6011TX Steel Combination Flat Elbow

Product Description

The WIREMOLD V6011TX is a steel combination flat elbow fitting designed for use with Wiremold surface raceway systems. This fitting allows the raceway to transition at a flat horizontal angle, routing conductors cleanly along walls or floors where direction changes are required. Fabricated from steel, it provides a durable mechanical connection point within the raceway run. Electricians and low-voltage installers use this fitting as part of a complete surface-mount wiring system in commercial and residential applications. The fitting weighs 2.4 pounds and fits within a package envelope of 8 inches by 7.75 inches by 5.75 inches.

This fitting is used in surface raceway installations where a flat-plane directional change is needed. Typical applications include office buildouts, retail spaces, classrooms, and any environment where exposed conduit is not practical and recessing is not feasible. The V6011TX is installed by licensed electricians as part of a code-compliant surface wiring system and is suited for both new construction and retrofit work.

Key Features

• Steel construction for durable, long-service mechanical performance
• Combination flat elbow design enables horizontal direction changes in the raceway run
• Compatible with Wiremold V600 series surface raceway system components
• Package dimensions of 8 inches x 7.75 inches x 5.75 inches for straightforward handling and storage
• Weight of 2.4 pounds for stable, secure fitting installation

Compatibility

Designed as an OEM-style replacement and system fitting for Wiremold V600 series steel surface raceway installations.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for surface metal raceways. De-energize all circuits in the affected raceway run before opening the system or handling conductors. Secure the fitting to the mounting surface using appropriate fasteners before routing and connecting conductors. Do not exceed the raceway fill capacity as specified by the applicable NEC fill tables for the raceway size in use.

Technical Specifications

• Material: Steel
• Package Dimensions (L x W x H): 8 inches x 7.75 inches x 5.75 inches
• Weight: 2.4 pounds
• UPC: 78677610554

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: V6011TX
