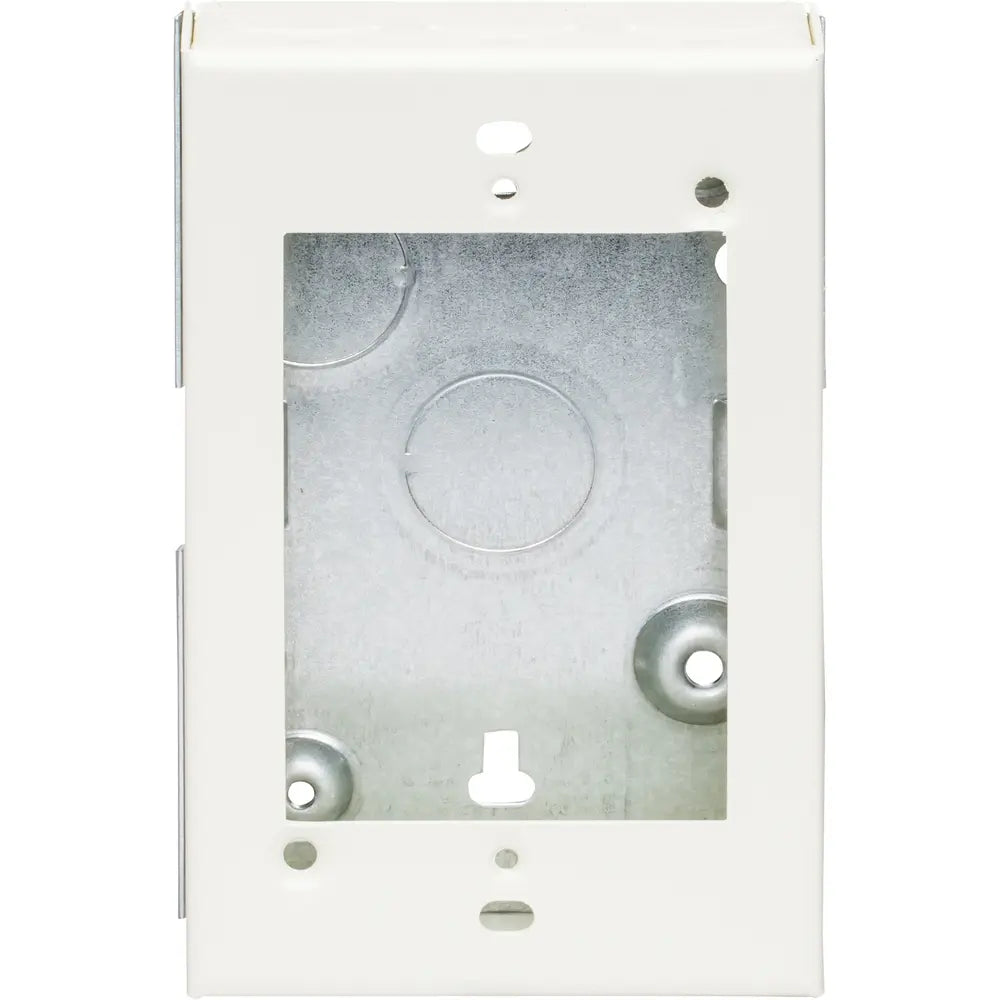

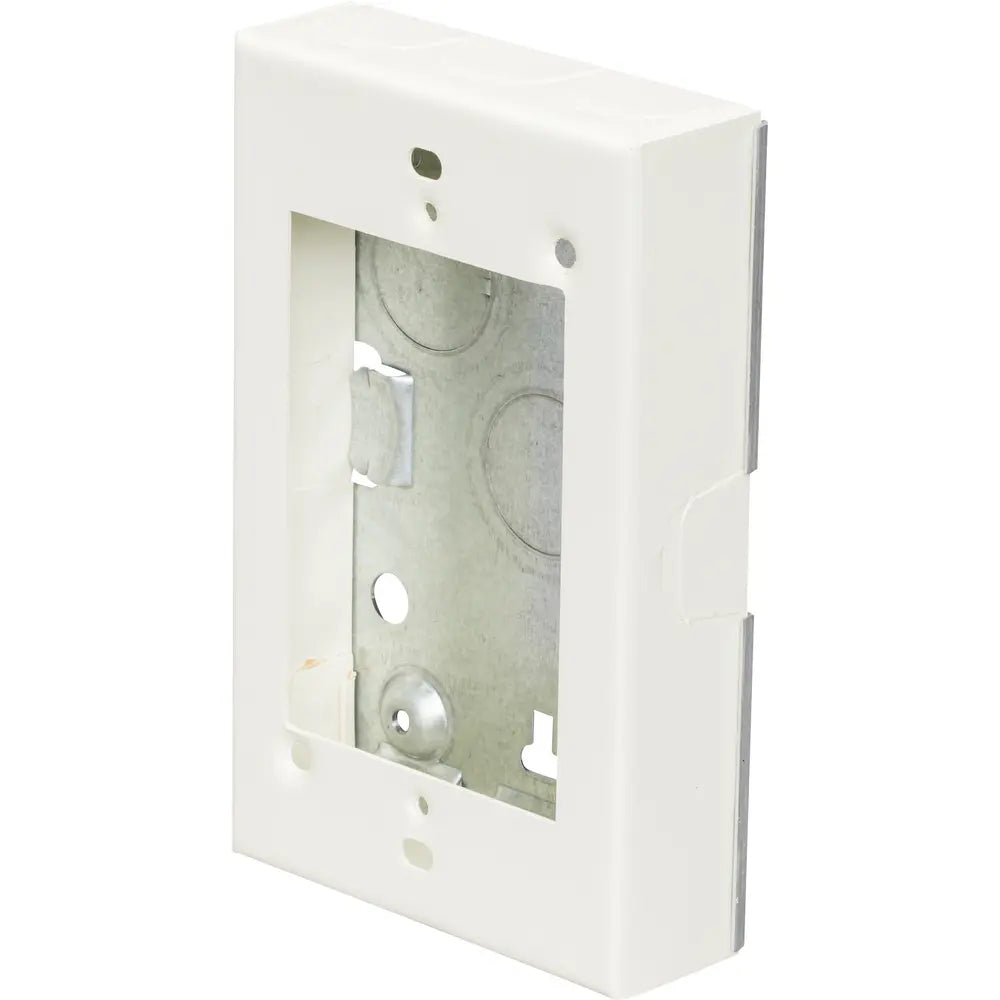

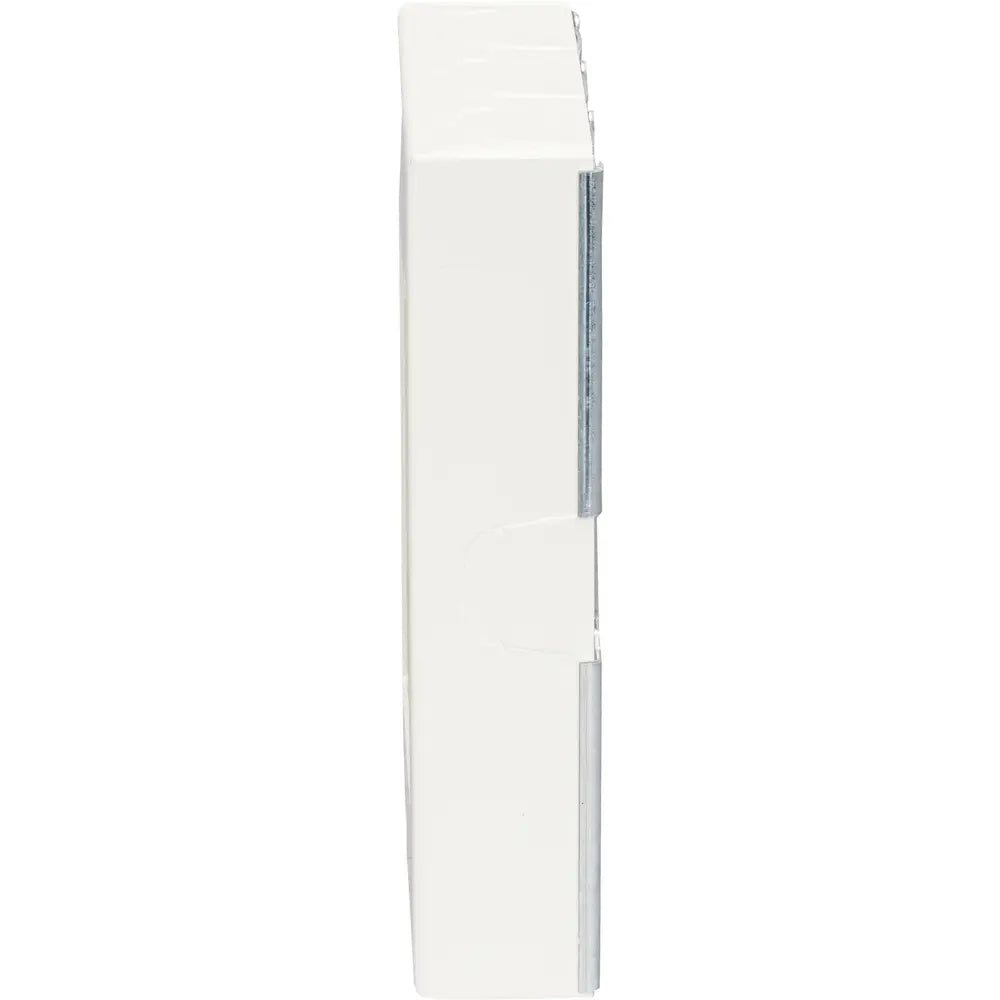

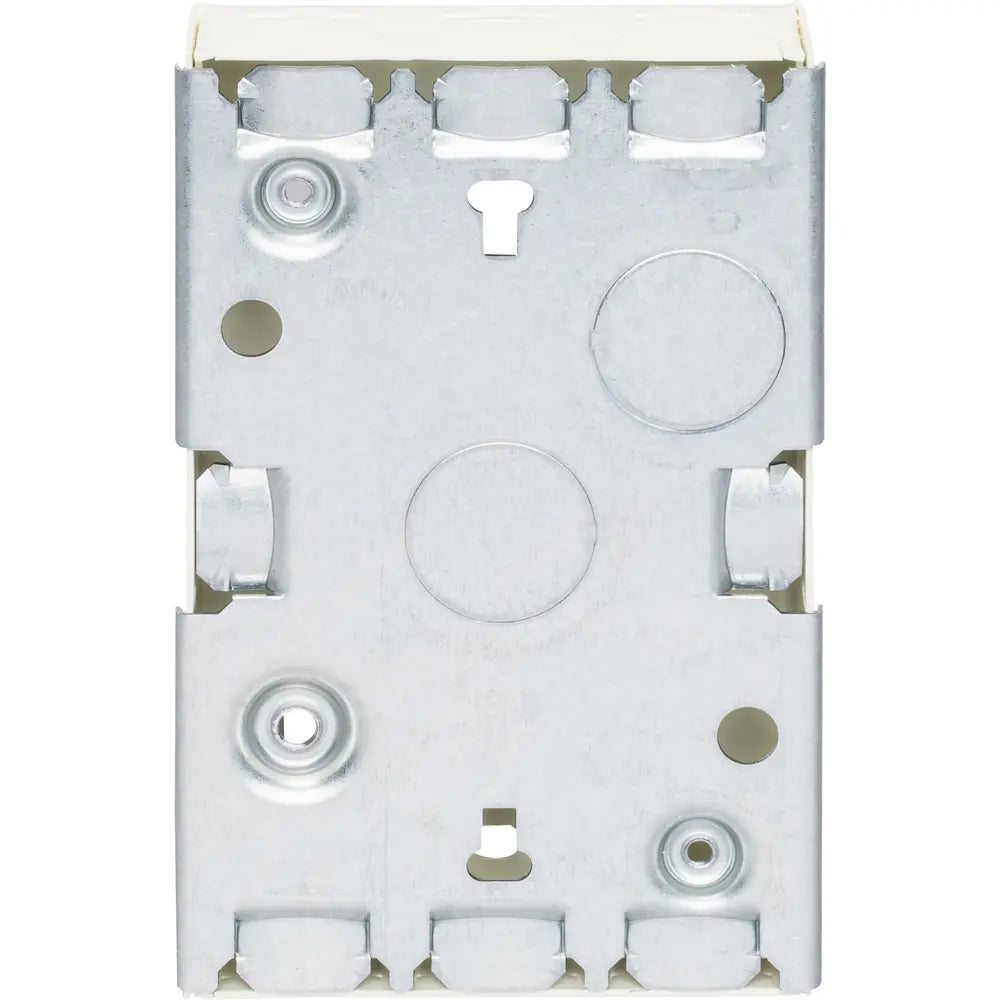

Wiremold V5748S 500/700 Series Shallow Switch and Receptacle Box Fitting 1-Gang

Product Description

Wiremold V5748S is a shallow steel switch and receptacle box fitting for use with Wiremold 500 and 700 series surface-mounted raceways. The single-gang box measures 3.0 in x 4.5 in x 1.0 in, includes a 1/2-inch trade-size knockout, and has a 600 VAC rating. It is cULus listed and finished with Wiremold ScuffCoat for indoor wall installations requiring low-profile surface-mounted wiring.

• Steel construction with ScuffCoat finish; cULus listed (File E4376/E4751); meets NEC Article 386 and CEC Section 12-1600
• Dimensions: 3.0 in (H) x 4.5 in (W) x 1.0 in (D); single-gang shallow profile for tight spaces
• Includes 1/2-inch trade-size knockout; rated 600 VAC; designed for 500/700 Series 1-piece steel surface raceway

Product Highlights

Shallow single-gang steel device box for Wiremold 500/700 surface raceways with 1/2-inch knockout and cULus listing

Product Information

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: V5748S
• Country of Origin: United States

Technical Specifications

• Brand: Wiremold
• MPN: V5748S
• Type: Shallow switch and receptacle box / Raceway device box
• Product Series: 500 Series, 700 Series
• Material: Steel
• Finish: ScuffCoat
• Dimensions (H x W x D): 3.0 in x 4.5 in x 1.0 in
• Depth: 1 in
• Width: 4.5 in
• Height: 3 in
• Weight: 0.39 lb
• Voltage Rating: 600 VAC
• Knockout Size: 1/2 in trade size
• Number of Gangs: 1
• Certifications: cULus Listed (Raceway: File E4376 Guide RJBT; Fittings: File E4751 Guide RJPR); UL listed (Canada and US); Meets Article 386 of NEC; Meets Section 12-1600 of CEC
• Country of Origin: United States
• UPC: 786776070569
• Product Volume: 13.5 cu in
• Application/Installation: Indoor wall; surface-mounted on 500/700 Series 1-piece steel surface raceway
• RoHS Compliance: Yes
• Datasheet: https://media.cityelectricsupply.com/media/wiremold/v5748s/documents/wiremold_datasheet_885390.pdf
