Wiremold V2048-2 BOX DVC 4-3/4IN 4-3/4IN 1-3/4IN 125 VAC V2048-2

Product Description

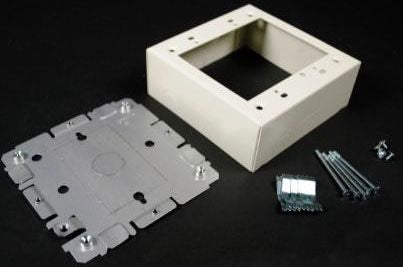

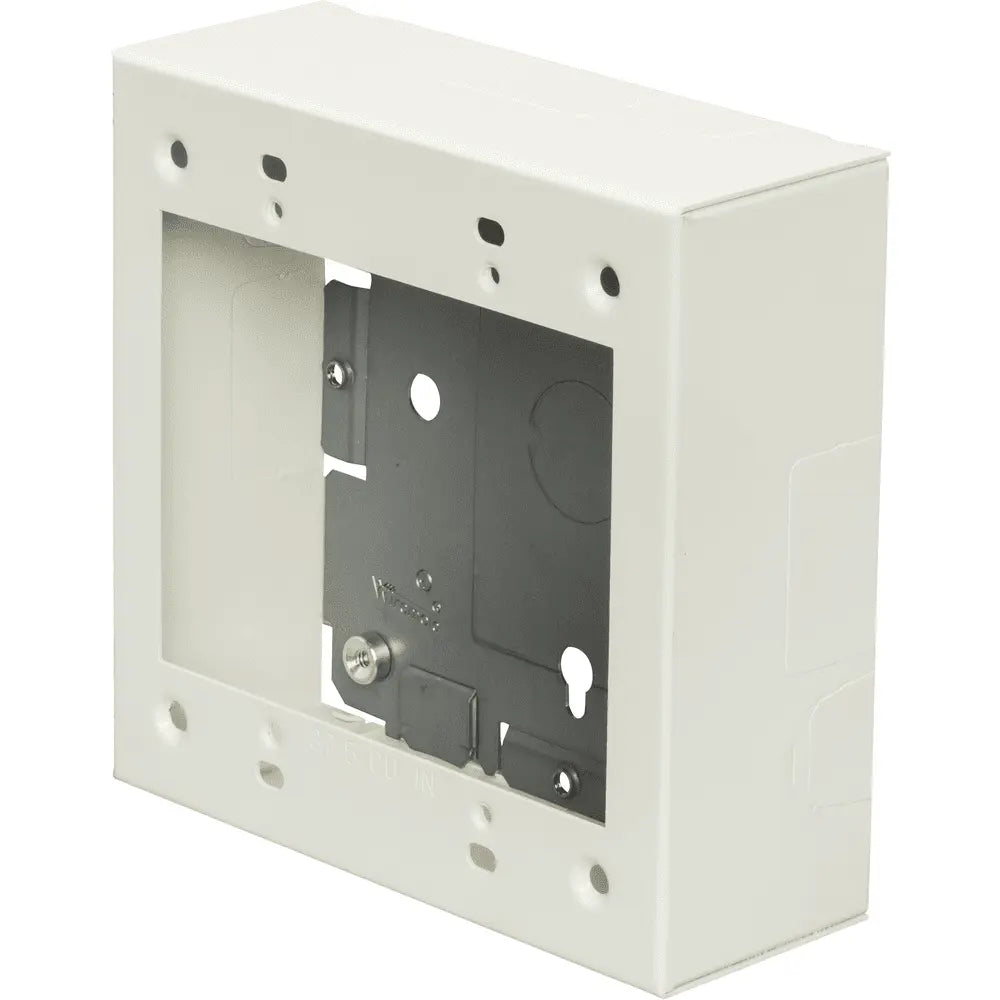

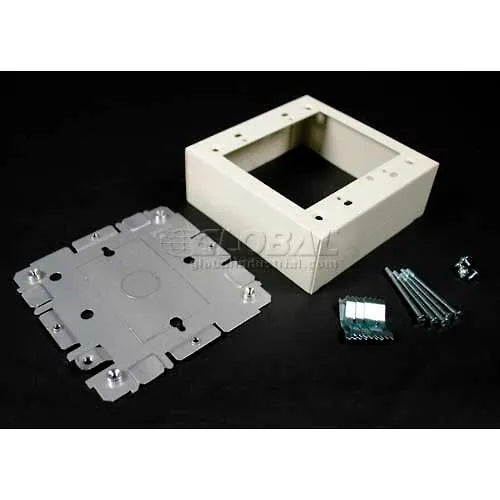

The Wiremold V2048-2 is a two-gang device box designed for raceways. It is made of steel with an ivory finish and features a compact design. The box measures four and three-quarters inches in length and width, and one and three-quarters inches in height. It is compatible with the Plugmold 2000, 500, and 700 Series multi-outlet power raceways.

• Cover has twistouts for 2000, 500, and 700 series raceways.
• Base has a half-inch CRFB size knockout and rectangular knockout for extension to wall box.
• Base includes a threaded hole for ground connection.

Product Highlights

This device box suits dry interior locations and has a one-channel capacity with a fifteen amp amperage rating and a voltage rating of 125 VAC.

Product Information

Standard Information

• Brand: Wiremold
• Manufacturer Part No: V2048-2

Technical Specifications

• Type: 2-Gang
• Material: Steel
• Color: Ivory
• Voltage Rating: 125 VAC
• Dimensions: 4-3/4 inches (L) x 4-3/4 inches (W) x 1-3/4 inches (H)
