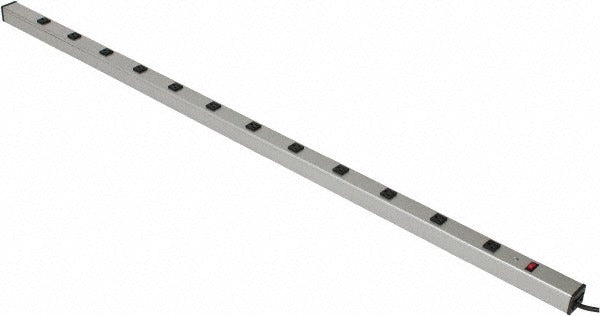

Wiremold UL2064BD Power Outlet Strip 12-outlet 120V 15A

Product Description

The WIREMOLD UL2064BD is a 12-outlet power strip designed for raceway-mount installations in commercial and industrial electrical applications. It measures 72 inches in length and delivers 120 volts at 15 amps through a NEMA 5-15R outlet configuration. The 15-foot power cord provides flexible placement relative to the supply circuit. Built from aluminum, the strip offers durability suited to surface-mounted raceway systems. It carries a cULus listing, meeting both U.S. and Canadian safety standards. Licensed electricians and facilities maintenance technicians typically install this unit in structured wiring environments where multiple outlet positions are required along a single run.

The UL2064BD is intended for raceway-mount applications in commercial offices, server rooms, workbenches, and similar environments where a high outlet count along a single linear run is required. Outlets are spaced 5-1/4 inches apart across the 72-inch strip, accommodating standard plugs without crowding. The gray aluminum housing integrates cleanly into Wiremold raceway systems. Its 15-amp rating aligns with standard 15-amp branch circuits using NEMA 5-15 receptacles.

Key Features

• 12 NEMA 5-15R outlets spaced 5-1/4 inches apart along a 72-inch aluminum strip
• Rated 120 volts, 15 amps for use on standard 15-amp branch circuits
• 15-foot power cord for flexible positioning within a raceway layout
• Aluminum construction for rigidity and durability in surface-mount applications
• Raceway-mount design integrates with compatible surface wireway systems
• cULus Listed — meets U.S. and Canadian electrical safety requirements

Compatibility

Designed for raceway-mount installation in compatible Wiremold surface raceway systems. The NEMA 5-15R outlet configuration is compatible with standard 15-amp, 120-volt plugs used across commercial and light industrial equipment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the branch circuit before mounting or connecting the strip. Verify that the supply circuit is rated for at least 15 amps at 120 volts and that the raceway channel is properly secured before fastening the strip. Do not exceed the 15-amp continuous load rating of the strip or the supplying overcurrent device.
