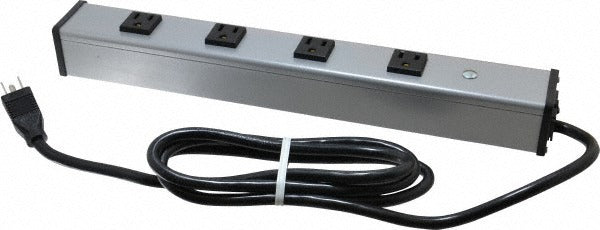

Wiremold UL1090BC Power Outlet Strip 4 Outlets 15A 120V

Product Description

The WIREMOLD UL1090BC is a 4-outlet aluminum power outlet strip rated at 15 amps and 120 volts. It is designed for free-hanging installation and ships with a 6-foot power cord terminated in a NEMA 5-15 plug configuration. The strip body measures 16 inches in length with outlet spacing of 3 inches center-to-center, giving enough clearance for standard plugs without blocking adjacent receptacles. The aluminum construction keeps the unit lightweight while providing a durable housing for workshop, mechanical room, and equipment rack applications. Electricians and facility maintenance technicians are the primary installers.

This outlet strip is suited for light commercial and residential applications where a compact, free-hanging power distribution point is needed. Typical install scenarios include workbenches, equipment rooms, HVAC service panels, and general utility areas where four separately spaced outlets are required on a single 15-amp branch circuit. The gray aluminum finish blends into standard mechanical and electrical environments. The NEMA 5-15R outlet configuration accepts the ubiquitous 5-15P plug found on most standard 120-volt tools and equipment.

Key Features

• 4 outlets with 3-inch spacing to accommodate standard plugs without blocking
• Aluminum body construction for durability in trade and utility environments
• 6-foot cord length provides reach from a standard wall or ceiling outlet
• NEMA 5-15R outlet configuration for compatibility with common 120-volt equipment
• Free-hanging mount type allows flexible positioning without fixed wall anchoring
• cULus Listed to meet standard electrical safety requirements

Compatibility

Designed as an OEM-style replacement or direct-install power outlet strip for standard 120-volt, 15-amp branch circuits using NEMA 5-15 wiring configurations in residential and light commercial settings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Disconnect power to the branch circuit at the panel before connecting or repositioning the strip. Do not exceed the 15-amp circuit rating by overloading the outlets with high-draw equipment. Verify that the supply circuit breaker and wiring are rated to match the strip before energizing.
