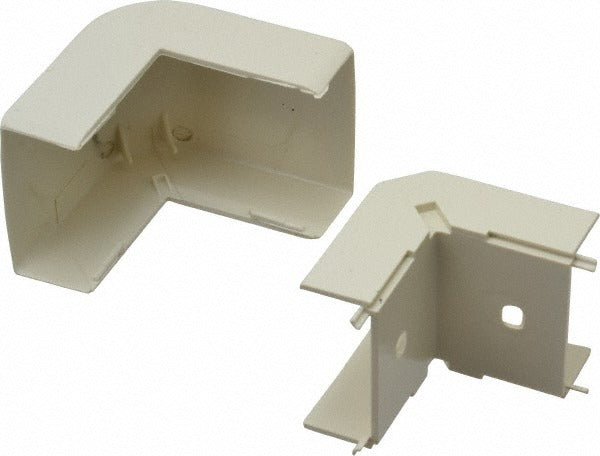

Wiremold PN10F18V Raceway Elbow End 90 Degree Ivory

Product Description

The WIREMOLD PN10F18V is a 90-degree elbow end fitting designed for use with ECLIPSE PN10 Series surface raceways. This fitting closes and redirects a raceway run at a right-angle corner, maintaining a clean, finished appearance on the raceway system. It measures 1-11/16 inches long by 1-5/8 inches wide by 13/16 inches high and is finished in ivory to match the PN10 Series raceway color. Electricians and low-voltage installers use this fitting when routing raceway along interior walls that turn at 90-degree horizontal or vertical corners. It is sold individually and ships as a single unit.

This elbow end fitting is suited for light commercial and residential installations where surface-mounted raceway is used to protect and route electrical wiring, data cables, or low-voltage conductors along walls. It is specifically designed for ECLIPSE PN10 Series raceway and provides a factory-matched fit and finish at corner transitions. Typical install locations include office walls, classrooms, and retail spaces where exposed wire management is required without cutting into finished surfaces.

Key Features

• 90-degree elbow end provides a finished corner transition for PN10 Series raceway runs
• Ivory finish matches ECLIPSE PN10 Series raceway color for a consistent appearance
• Compact dimensions: 1-11/16 inches long, 1-5/8 inches wide, 13/16 inches high
• Sold as a single unit, compatible with standard PN10 Series installation hardware
• Lightweight fitting at 0.093 pounds for easy handling during installation

Compatibility

Designed for use with ECLIPSE PN10 Series surface raceways.

Installation Notes

Installation is typically performed by licensed electricians or low-voltage technicians in accordance with NEC requirements for surface raceway systems. De-energize all circuits in the raceway before opening or modifying any section of the raceway run. Snap or fasten the elbow end fitting per the manufacturer assembly method for the PN10 Series raceway. Do not force or modify the fitting, as doing so can compromise the raceway closure and wire protection.
