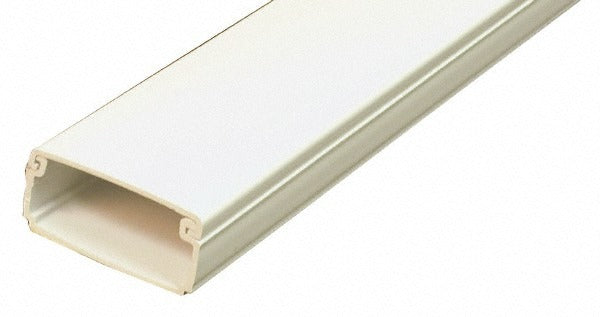

Wiremold PN05L08V Surface Raceway 8 Foot 1 Channel Ivory

Product Description

The WIREMOLD PN05L08V is a surface-mounted wire raceway designed for organizing and protecting low- and line-voltage wiring runs along walls and ceilings in commercial and residential settings. Measuring 8 feet in length, 1-1/8 inches wide, and 5/8 inches deep, this single-channel raceway ships with a continuous cover in an ivory finish. It is rated for use under Article 386 of the NEC and Section 12-600 of the CEC, making it a code-compliant solution for exposed wiring installations. Electricians and low-voltage technicians install this raceway when concealing conductors without opening walls is required.

This raceway fits residential retrofit wiring, commercial office buildouts, and light industrial applications where surface routing of electrical conductors is necessary. The ivory finish blends with standard wall colors, reducing the visual impact of surface-mounted runs. The continuous cover design allows full-length wire access after installation without the need to remove individual snap-in segments. A single-channel interior accommodates one bundled wiring run per raceway section.

Key Features

• 8-foot length per section provides extended single-run coverage
• Continuous cover design allows full-length wire access without removing multiple pieces
• Single-channel interior organizes one wiring run per raceway
• Ivory finish suits standard wall and ceiling surfaces
• Compliant with NEC Article 386 and CEC Section 12-600
• UL and cUL Listed under Guide RJTX File E90378

Compatibility

Designed as an OEM-style surface raceway compatible with standard WIREMOLD raceway mounting bases and fittings of the same series width. Verify base fitting compatibility before ordering accessories.

Installation Notes

Installed by licensed electricians or qualified low-voltage technicians following applicable NEC or CEC requirements for surface metal or nonmetallic raceways. Power down all circuits before routing conductors through any raceway section. Secure the mounting base to the wall substrate at intervals required by the governing electrical code, then seat the continuous cover after wiring is complete. Do not exceed the raceway fill capacity defined by NEC Article 386 for the conductor types being installed.
