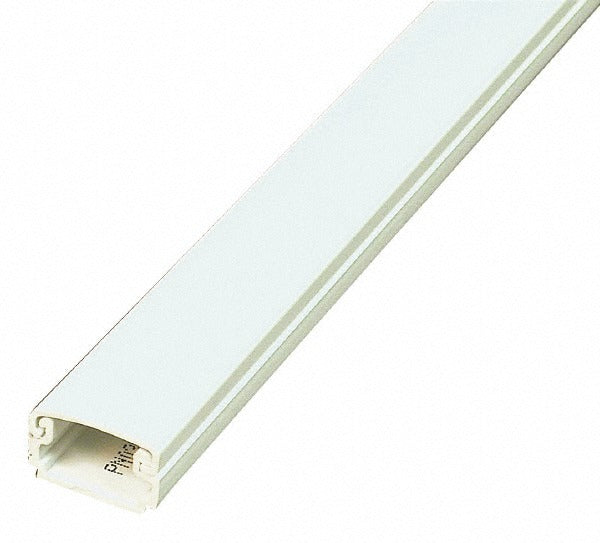

Wiremold PN03L08V Surface Raceway 8 Ft 1 Channel Ivory

Product Description

The WIREMOLD PN03L08V is a single-channel surface-mount raceway designed to route and protect low- and line-voltage wiring along walls and ceilings without the need for in-wall work. Each section runs 8 feet in length, measures 0.5 inches deep and 0.8125 inches wide, and ships with a continuous cover in ivory. The slim profile keeps the installation unobtrusive on finished surfaces, and the ivory finish blends with standard interior trim. Electricians use this raceway in both new construction and retrofit applications where open-wall access is not practical or code-permissible.

This raceway is suited for residential and light commercial installations where surface wiring methods are required or preferred. Typical uses include branch circuit extensions, low-voltage data or communication runs, and AV wiring in offices, classrooms, healthcare facilities, and residential spaces. The single-channel design keeps one wire bundle or cable type isolated and organized for clean, serviceable routing along baseboards or wall runs.

Key Features

• 8-foot section length with continuous cover for clean, uninterrupted wire protection
• Single-channel layout keeps wiring organized and separated
• 0.5 inches deep by 0.8125 inches wide slim profile for low-profile wall surface mounting
• Ivory finish suits standard interior painted or trimmed walls
• Meets Article 386 of NEC and 12-600 of CEC; UL and cUL Listed under Guide RJTX File E90378

Compatibility

Designed as an OEM-style surface raceway section compatible with WIREMOLD PN-series fittings, couplings, and accessories for single-channel surface wiring systems.

Installation Notes

Installation is performed by a licensed electrician in accordance with Article 386 of the NEC or Section 12-600 of the CEC. De-energize all circuits at the panel before routing any conductors through the raceway. Secure the base channel to the wall surface at intervals required by code before snapping the continuous cover into place. Do not exceed the fill capacity defined by applicable code for the channel size.
