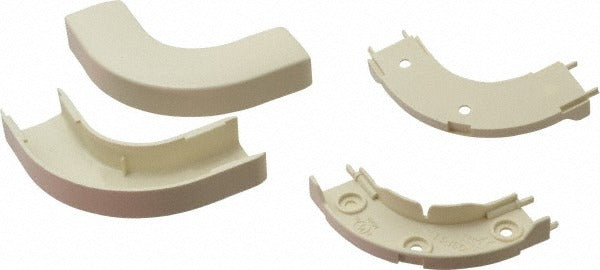

Wiremold PN03F11V Raceway Elbow End 90 Degree Ivory

Product Description

The WIREMOLD PN03F11V is a 90-degree elbow end fitting designed for use with ECLIPSE PN03 Series raceways. This fitting terminates or redirects a raceway run at a right angle, providing a clean, finished transition at corners and endpoints. Measuring 0.8125 inches long by 2.6875 inches wide by 0.5 inches high, the PN03F11V is finished in ivory to match standard ECLIPSE PN03 Series raceway installations. Electricians and low-voltage installers use this fitting to complete raceway layouts where wall or baseboard corners require a 90-degree directional change while maintaining a professional appearance.

This elbow end fitting is suited for residential and light commercial wiring applications where surface-mounted raceways are used to route electrical conductors, data cables, or low-voltage wiring along walls. It is specifically designed to integrate with the ECLIPSE PN03 Series raceway system, ensuring consistent fit, finish, and color matching throughout the installation. The fitting is sold individually and is appropriate for new installations as well as retrofit or repair work on existing PN03 Series raceway runs.

Key Features

• 90-degree elbow end configuration for right-angle raceway terminations and transitions
• Ivory finish matches ECLIPSE PN03 Series raceways for a consistent, professional look
• Compact profile: 0.8125 inches long, 2.6875 inches wide, 0.5 inches high
• Designed as a system-matched fitting for ECLIPSE PN03 Series raceways
• Sold as a single unit with a minimum order quantity of 1

Compatibility

Designed for use with ECLIPSE PN03 Series surface-mounted raceways.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with applicable NEC requirements for surface raceway systems. Ensure all conductors are de-energized and circuits are locked out before opening or modifying an existing raceway run. Snap or secure the elbow end fitting per the ECLIPSE PN03 Series installation guidelines to ensure proper alignment and conductor protection. Do not exceed the raceway fill capacity specified for the PN03 Series system.
