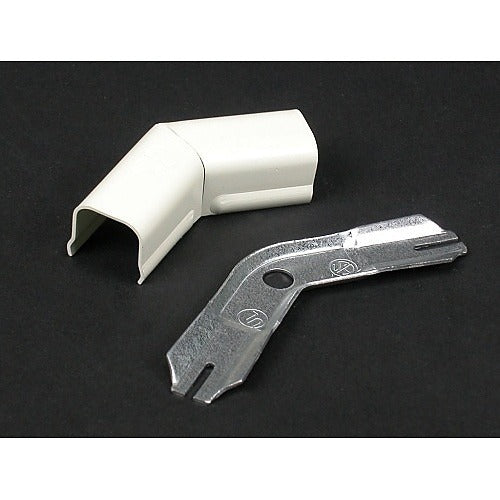

Wiremold / Legrand 712WH 45 Degree Flat Elbow

Product Description

The WIREMOLD / LEGRAND 712WH is a 45-degree flat elbow fitting designed for use with Wiremold raceway systems. This fitting allows a raceway run to change direction horizontally at a 45-degree angle while keeping the assembly flush against a wall surface. It maintains the clean, continuous appearance of a raceway installation and is sized to work within the matching raceway channel. Electricians and low-voltage installers use this fitting during wire management projects in commercial and residential settings where cable runs must navigate corners or angled transitions along a flat surface.

This flat elbow is suited for surface-mounted raceway installations where a clean directional change is needed without exposing conductors or creating abrupt bends. Typical applications include office wire management, classroom AV cable runs, retail fixture wiring, and light commercial electrical work. It installs as part of a complete Wiremold raceway assembly alongside compatible base, cover, and coupling components.

Key Features

• 45-degree horizontal directional change for flat-wall raceway runs
• Maintains flush, surface-mounted profile throughout the transition
• White finish blends with standard interior wall and trim surfaces
• Sold individually as a single unit
• Designed for use within the Wiremold raceway fitting system

Compatibility

Designed as an OEM-style fitting for use with compatible Wiremold surface raceway systems requiring a 45-degree flat elbow transition component.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for surface metal or nonmetallic raceways. De-energize all circuits in the work area before opening any raceway section or pulling conductors. Secure the raceway base firmly to the wall surface before attaching the elbow fitting, and verify that conductor fill does not exceed the allowable capacity for the raceway channel used.
