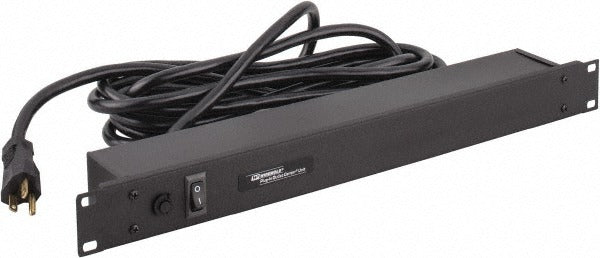

Wiremold J06B2B20 Power Outlet Strip 20A 6-outlet Rack

Product Description

The WIREMOLD J06B2B20 is a rack-mount power outlet strip rated for 20 amps at 120 volts, built for use in server racks, equipment cabinets, and panel enclosures where reliable distributed power is required. The aluminum strip measures 19 inches in length and ships with a 15-foot cord, giving installers the reach needed for most rack setups. Six NEMA 6 back-mount outlets are spaced 1-1/2 inches apart across the strip. A built-in switch with pilot light allows the entire strip to be powered down without disconnecting individual loads. Electricians and data center technicians are the primary installers of this type of device.

This outlet strip is suited for 19-inch rack enclosures in commercial, industrial, and light institutional applications. It is appropriate anywhere a 20-amp, 120-volt branch circuit needs to be distributed to multiple pieces of rack-mounted equipment. The black aluminum housing is compatible with standard rack rail spacing, and the 15-foot cord provides flexibility in positioning relative to the panel or PDU feed point. The cULus Recognized listing makes this strip acceptable under most AHJ inspections for commercial electrical work.

Key Features

• 20-amp, 120-volt rating supports high-draw rack equipment
• Six NEMA 6 back-mount outlets spaced 1-1/2 inches apart
• 19-inch aluminum strip sized for standard rack enclosures
• 15-foot cord length for flexible panel-to-rack routing
• Built-in switch with pilot light for full-strip power control
• cULus Recognized listing for commercial installation acceptance

Compatibility

Designed for use in standard 19-inch equipment racks and cabinets requiring a 20-amp, 120-volt rack-mount power distribution strip with NEMA 6 back-mount outlet configuration.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for branch circuit power distribution. Verify that the branch circuit supplying this strip is rated for at least 20 amps before connecting. Power down the circuit at the breaker before mounting or wiring the strip into the rack. Do not exceed the 20-amp total load rating across all connected outlets.
