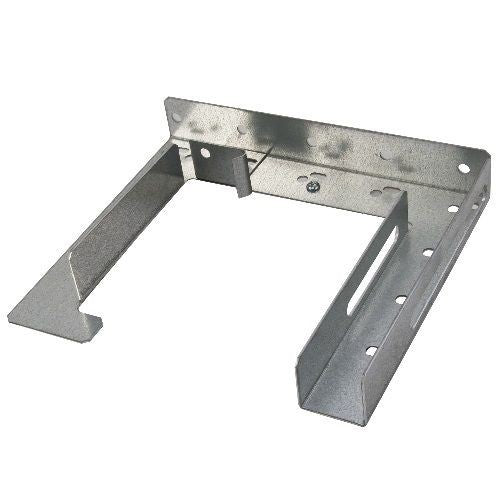

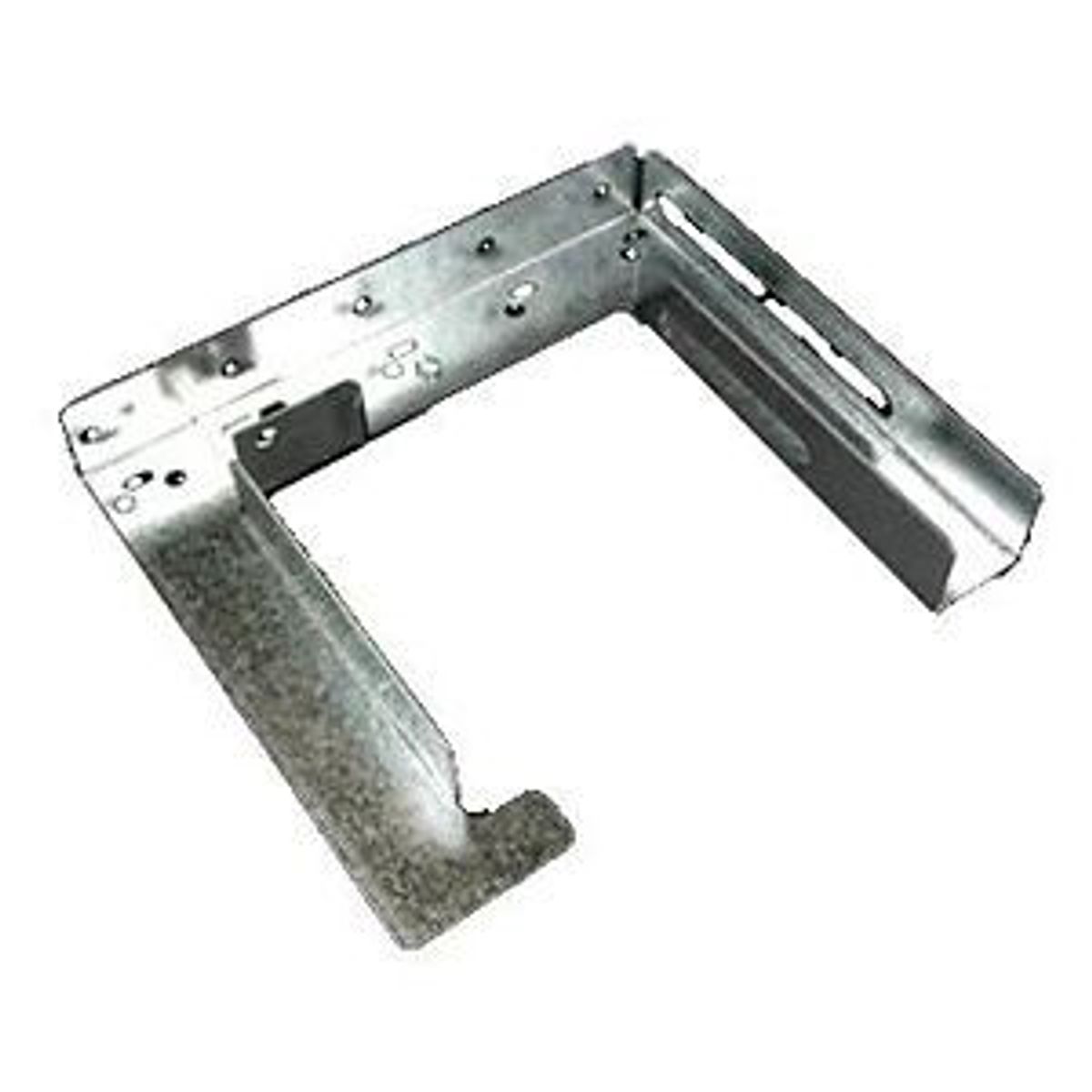

Wiremold G6008A 6000 C-Hanger (Galvanized) Fitting

Product Description

The WIREMOLD G6008A 6000 C-Hanger is designed for suspending 6000 or 4000 Series raceways from structural ceilings, and is designed for use with 3/8'' (9.5mm) rods. Hangers should be installed no more than 5' (1.5m) apart along the raceway run. It can be bolted back-to-back for dual runs.

• Suspending 6000 or 4000 Series Raceway from structural ceiling. Designed for use with 3/8'' (9.5mm) rod.
• Hangers should be installed no more than 5' (1.5m) apart along raceway run. Can be bolted back-to-back for dual runs of 4000, 6000 or 3008C or for combined runs with 3000 Series Raceway.
• Multiple channel capacity

Product Highlights

The G6008A C-Hanger is ideal for commercial applications requiring a high cable capacity, dual service steel raceway.

Product Information

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: G6008A
• Country of Origin: United States

Technical Specifications

• Product Series: 6000 Series
• Type: Mounting Hardware
• Material: Steel
• Application Sector: Commercial
• Product Line: Wiremold
• Country Of Origin: United States
• Installation Location: On Wall
• Standard: cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC.
• UPC Number: 786776087925
• Product Length US: 7.875 in
• Product Width US: 6.875 in
• Product Weight US: 1.0 lb
• cULus ListingNumber: E41751
• cULus Listed: Yes
• Product Environmental Profile: Yes
• RoHS Compliant: Yes
• Indoor/Outdoor: Indoor
• Is Pre-Wired: No
• Voltage: 600.0 V
• Finish: Galvanized
• Suitable For Use With: 6000 Series Large Raceway
• Length: 7-7/8 in
• Width: 6-7/8 in
• Flexibility: Rigid
• Conduit Type: Raceway
• Accessory Type: Conduit Hangers
• Resistance Properties: Corrosion Resistant
• Item Diameter: 6.875 in
• MPN: G6008A
• GTIN: 0786776087925
• UPC Code: 786776087925
