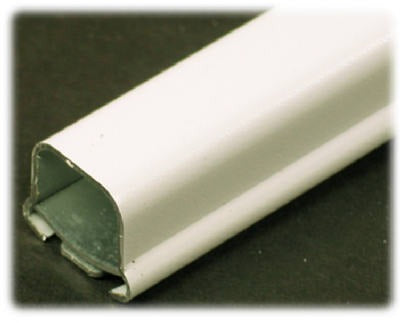

Wiremold Company B-1 Raceway Channel 5 Foot Ivory

Product Description

The WIREMOLD COMPANY B-1 is a 5-foot ivory metal surface raceway channel designed for routing and protecting electrical wiring in residential and light commercial applications. Constructed from metal and finished in ivory, this channel measures 3/4 inches wide by 17/32 inches deep. It accommodates non-metallic 14/2 NM cable with ground or up to nine 14 AWG or seven 12 AWG THHN conductors. Licensed electricians install this raceway where concealed wiring is impractical, providing a clean, code-compliant surface-mount solution for exposed wire management.

This channel is suited for residential and light commercial installations where surface-mounted wiring protection is required. Typical applications include basement finishing, workshop wiring, and retrofit electrical runs where opening walls is not feasible. The ivory finish blends with standard interior trim. Each unit ships individually carded and is sold in packages of 10 pieces per unit of measure.

Key Features

• 5-foot length per channel section for flexible run configurations
• Metal construction in ivory finish for durable surface-mount use
• Accommodates 14/2 NM cable with ground or up to nine 14 AWG THHN wires
• Also fits up to seven 12 AWG THHN conductors for heavier branch circuits
• Channel profile measures 3/4 inches by 17/32 inches
• Carded packaging for easy retail or supply counter handling

Compatibility

Designed as an OEM-style surface raceway component for use in standard residential and light commercial surface-mount wiring systems where WIREMOLD COMPANY B-1 channel fittings and accessories are specified.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for surface metal raceways. De-energize all circuits before pulling conductors or mounting the channel. Secure the base to the wall or ceiling surface at intervals required by local code before snapping the cover in place. Do not exceed the stated conductor fill capacity for the channel size.

Technical Specifications

• Channel Length: 5 feet
• Channel Width: 3/4 inches
• Channel Depth: 17/32 inches
• Material: Metal
• Color/Finish: Ivory
• Wire Fill Capacity: 14/2 NM with ground, or up to nine 14 AWG THHN, or up to seven 12 AWG THHN
• Weight: 14 pounds
• Package Quantity: 10 per package

Standard Information

• Brand: WIREMOLD COMPANY
• Manufacturer Part Number: B-1
