Wiremold B17 90 Degree Conduit Connector 0.5 Inch Ivory

Product Description

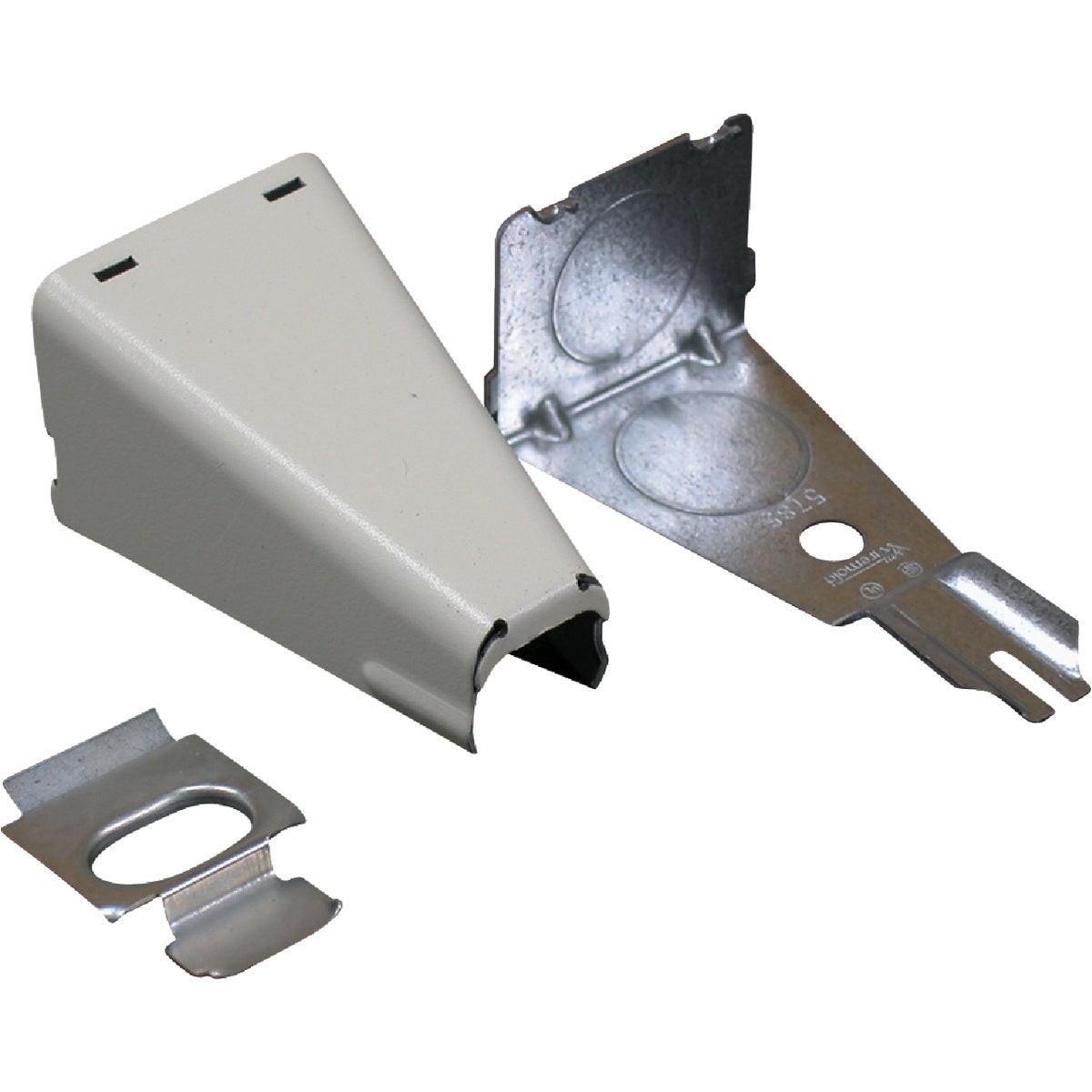

The WIREMOLD B17 is a 90-degree conduit connector designed to join B1 surface raceway directly to 1/2-inch conduit. Constructed from steel with a baked enamel ivory finish, this fitting provides a clean, durable transition between raceway and conduit runs. The connector is also compatible with standard outlet boxes fitted with a 1/2-inch knockout, giving electricians flexible routing options in surface-wiring installations. UL listed. Weighing approximately 0.196 pounds, it is a lightweight but solid-duty fitting suited for commercial and residential electrical work.

This connector is used in surface raceway systems where conduit must terminate or transition at a 90-degree angle. Common applications include office interiors, retail spaces, and light commercial environments where B1 raceway is run along walls or ceilings and must connect to conduit drops, junction boxes, or outlet boxes with 1/2-inch knockouts. Licensed electricians install this fitting as part of complete surface wiring assemblies.

Key Features

• 90-degree angle configuration for raceway-to-conduit transitions
• Compatible with 1/2-inch conduit and 1/2-inch knockout outlet boxes
• Steel construction with baked enamel ivory finish for durability and aesthetics
• UL listed for compliance with standard electrical installation requirements
• Lightweight at 0.196 pounds for easy handling during installation

Compatibility

Designed for use with WIREMOLD B1 surface raceway systems and standard outlet boxes or conduit fittings with 1/2-inch knockouts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits in the work area before beginning any raceway or conduit work. Secure the connector firmly to both the raceway and the conduit or outlet box to ensure a complete and code-compliant assembly. Do not force or over-tighten fittings, as this may damage the enamel finish or distort the connector body.

Technical Specifications

• Conduit Size: 0.5 inches
• Angle: 90 degrees
• Material: Steel
• Finish: Ivory baked enamel
• Weight: 0.196 pounds
• Certifications: UL Listed

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: B17
