Wiremold AL5200B-5 Raceway Base 60 Inches

Product Description

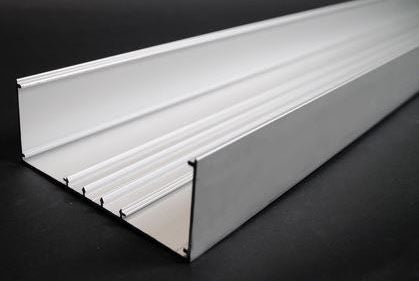

The WIREMOLD AL5200B-5 is a raceway base section used to route and protect electrical wiring in commercial and residential installations. The base mounts directly to walls or ceilings and provides the foundation channel that accepts a matching raceway cover, keeping conductors organized and shielded from physical damage. At 60 inches in length, this section is suited for runs requiring longer spans between fittings or junction points. Electrical contractors and commercial installers work with this component as part of a surface-mounted wiring system where conduit is not practical or where finished appearance is required.

This raceway base is used in surface wiring applications across office spaces, retail environments, classrooms, and similar settings where exposed wiring must be managed cleanly along wall or ceiling surfaces. It is designed to be cut to length in the field when shorter segments are needed, giving installers flexibility on the job. The section pairs with compatible WIREMOLD 5200 series covers and fittings to form a complete raceway assembly.

Key Features

• 60-inch length provides extended single-section coverage, reducing the number of joints in a run
• Designed for surface-mount installation on walls or ceilings
• Field-cuttable to accommodate custom lengths on site
• Compatible with WIREMOLD 5200 series covers, fittings, and accessories
• Lightweight construction at 0.81 pounds per section for easier handling overhead or on ladders

Compatibility

Designed as an OEM-style base component for use within the WIREMOLD 5200 series surface raceway system, accepting standard 5200 series covers and fittings.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for surface metal raceways. De-energize all circuits in the work area before routing or connecting conductors inside the raceway. Secure the base to the mounting surface at intervals per the manufacturer and local code requirements before snapping or fastening the cover in place. Use appropriate metal-cutting tools when field-cutting the base to length, and deburr cut ends to protect conductor insulation.

Technical Specifications

• Length: 60 inches
• Width: 10.5 inches
• Height: 4 inches
• Weight: 0.81 pounds
• UPC: 78677618960

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: AL5200B-5
