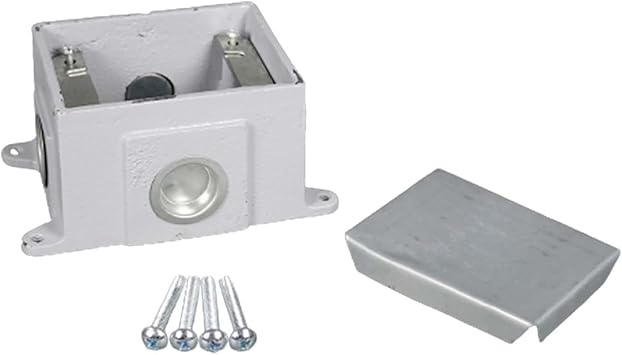

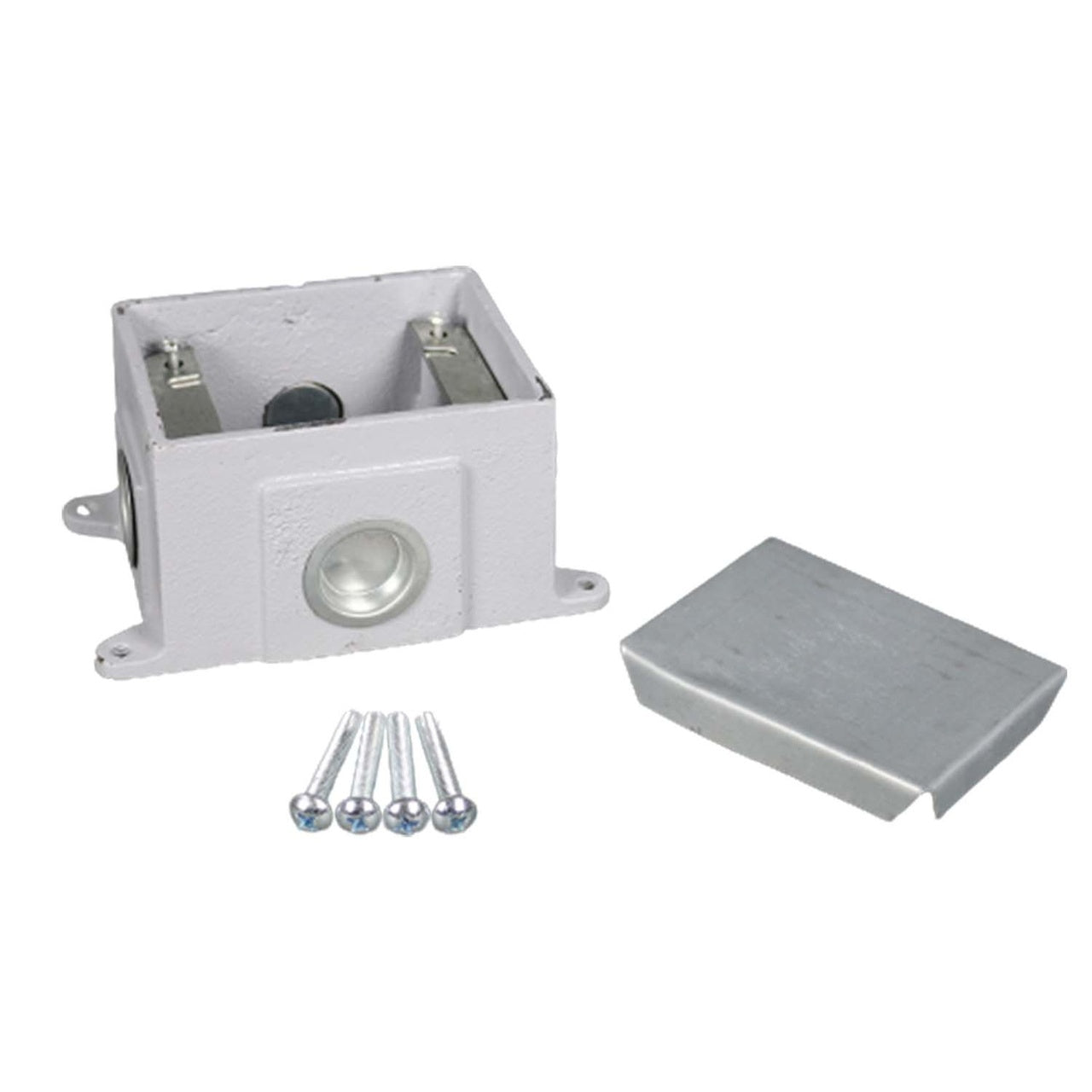

Wiremold 880CS1-1 Omnibox Series Single Gang Cast Iron Floor Box

Product Description

The WIREMOLD 880CS1-1 single gang Omnibox® Floor Box provides an excellent activation solution for applications where single service is required in open space areas. The floor box is constructed from durable cast iron, designed for on-grade concrete floor applications, meeting a wide range of market requirements. It is suitable for schools, financial institutions, and commercial office buildings.

• TopGuard protection keeps out water, dirt, and debris.
• Fully adjustable box before and after concrete pour.
• Watertight cast-iron construction meets requirements for on grade or below grade application.

Product Highlights

The Omnibox floor box series provides activation solutions for open space areas. It is suitable for schools, financial institutions, and commercial office buildings.

Product Information

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: 880CS1-1
• Country of Origin: China

Technical Specifications

• Type: Floor Box
• Material: Cast Iron
• Application Sector: Commercial, Education
• Product Line: Wiremold
• Country Of Origin: China
• Construction: Assembled
• Number of Knockouts: 1
• Standard: cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. Meets Article 314.27(C) of NEC.
• Cover Style: Flush
• UPC Number: 786564515876
• Product Depth US: 6.63 in
• Product Height US: 3.5 in
• Product Volume US: 104.34 cu in
• Product Width US: 4.5 in
• Cubic Capacity: 48 in 3
• Knockout Size: 1 in
• cULus ListingNumber: E2961
• cULus Listed: Yes
• Product Environmental Profile: Yes
• RoHS Compliant: Yes
• Box Type: On-Grade
• Cable Entry: Conduit Threads
• Box Capacity: 1 Gang
• Service Capacity: Single
• Floor Type: Concrete
• Depth Behind Device Plates: 2.75 in
• Number of Outlets: 0
• Applications: Commercial,Education
• Brand: Wiremold
• Sub Brand: Wiremold
• GTiN: 00786564515876
• Product Series: Omnibox
• Product UPC: 78656451587
• Depth: 6.63 Inch
• Height: 3-1/2 Inch
• Width: 4.5 in
• Certifications: CULUS,ROHS
• Number of Gangs: 1
• Model: Omnibox Series
• Box Shape: Rectangular
• Installation Type: Freestanding
• Finish Type: gray
• Size: 5 3/16" x 4 3/8" x 3 7/16"
