Wiremold 818TCAL 5.94 x 4.92 1-Gang Brushed Aluminum Floor Box Carpet and Tile Flange

Product Description

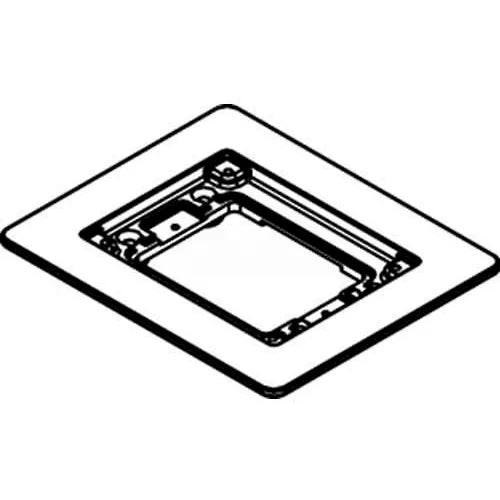

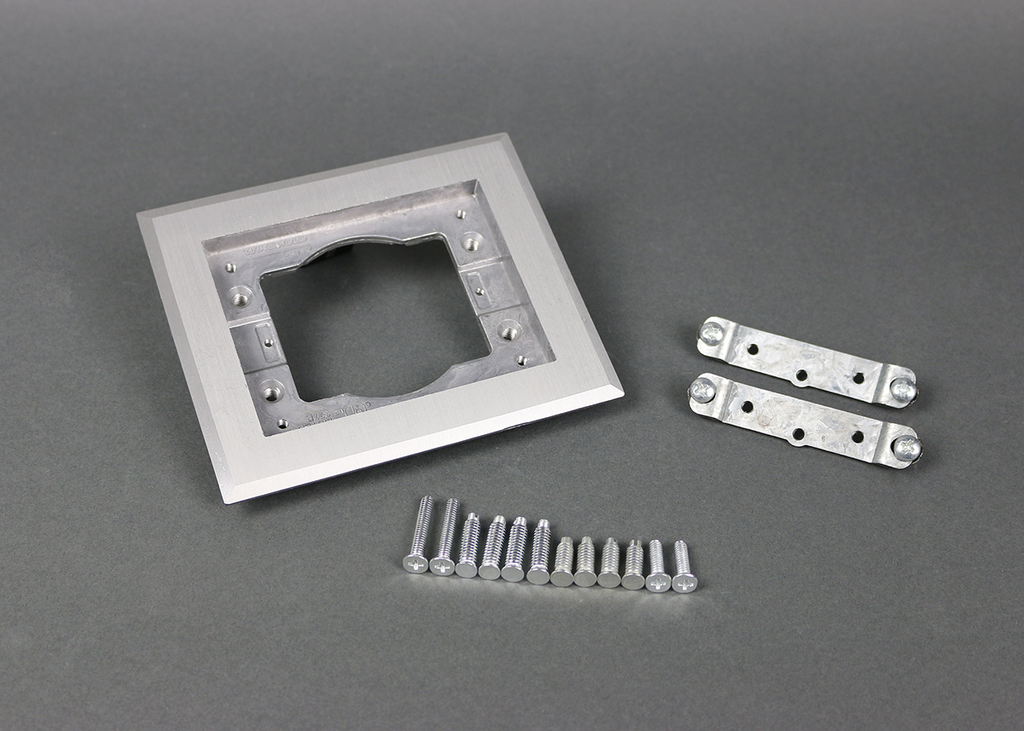

The Wiremold 818TCAL is a one gang brushed aluminum floor box flange designed for use with OmniBox and Modulink series floor boxes. This flange measures five point nine four inches by four point nine two inches. It accepts various adapters such as Ortronics MAB6TJ TracJack and MAB3S2 Series II, and Wiremold CM Series Open System adapters, which are sold separately. The brushed aluminum finish provides durability and aesthetic appeal.

• One gang design for versatile installation.
• Meets RoHS material restrictions.
• Designed for commercial and office applications.

Product Highlights

This product is compatible with various electrical devices and facilitates access to power and communication ports.

Product Information

Standard Information

• Brand: Wiremold
• Manufacturer: The Wiremold Co

Technical Specifications

• MPN: 818TCAL
• Type: Rectangular
• Material: Aluminum
• Width: 5.94 inches
• Length: 4.92 inches
• Depth: 6 inches
• Height: 0.75 inches
• Weight: 0.63 lb
• Mounting Type: Screw-On
• Applications: Commercial, Office
• Certifications: cULus, RoHS
• Country of Origin: China
