Wiremold 810A2 Nonmetallic Entrance End Fitting for 800 Series Raceway

Product Description

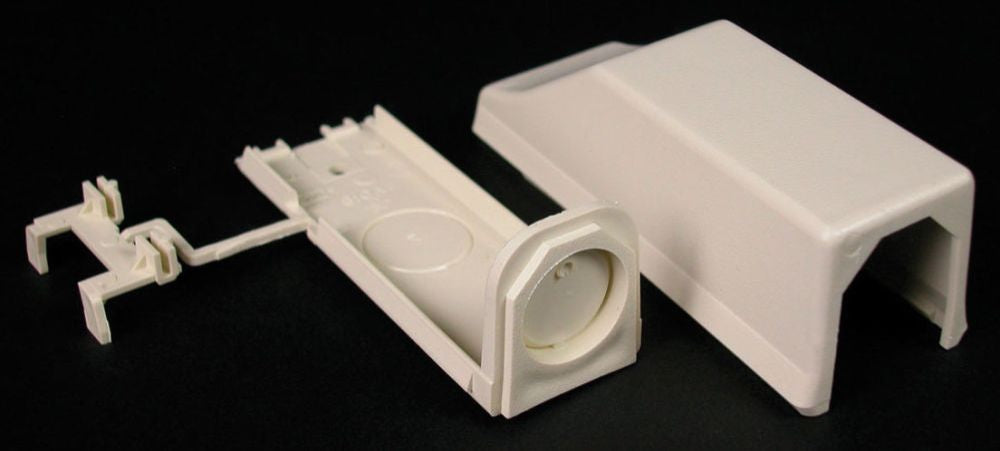

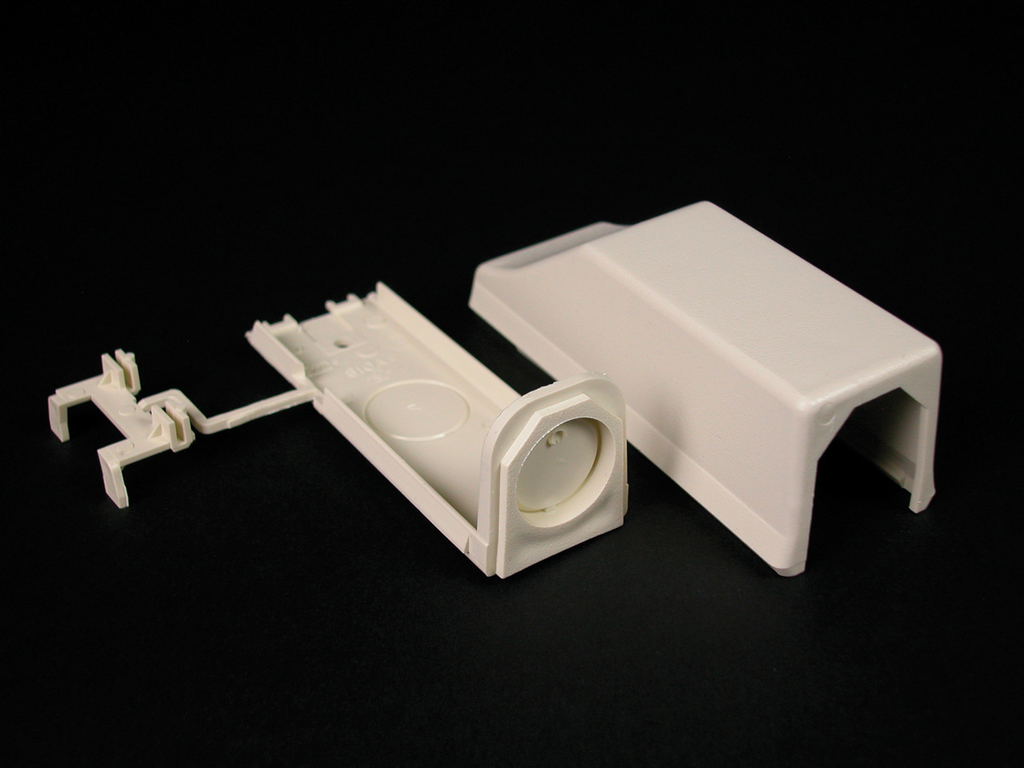

The Wiremold 810A2 is a nonmetallic entrance end fitting designed for use with the 400 and 800 series raceway systems. This product allows for easy connections between raceways and 1/2 inch trade size conduits or armored cables. It features knockouts on both the end and bottom for convenient installation.

• Compatible with 400 and 800 series raceway systems.
• Knockouts allow for flexible installation options.
• Durable nonmetallic construction for various applications.

Product Highlights

This entrance end fitting enhances cable management by providing seamless connections for raceways in residential and commercial settings. Its sturdy design allows for effective routing of electrical wiring.

Product Information

Standard Information

• Manufacturer: Wiremold
• MPN: 810A2

Technical Specifications

• Type: Non-Metallic
• Color: Ivory
• Dimensions: Four and one-fourth inches long by one and seven-sixteenths inches wide by one and one-half inches high
• Capacity: Single-channel
• Material: PVC
• Voltage Rating: 600 VAC
• Approval: UL Listed for Canada and USA
• UNSPSC Code: 39131709
