Wiremold 5786WH Steel Adjust Offset Connector White

Product Description

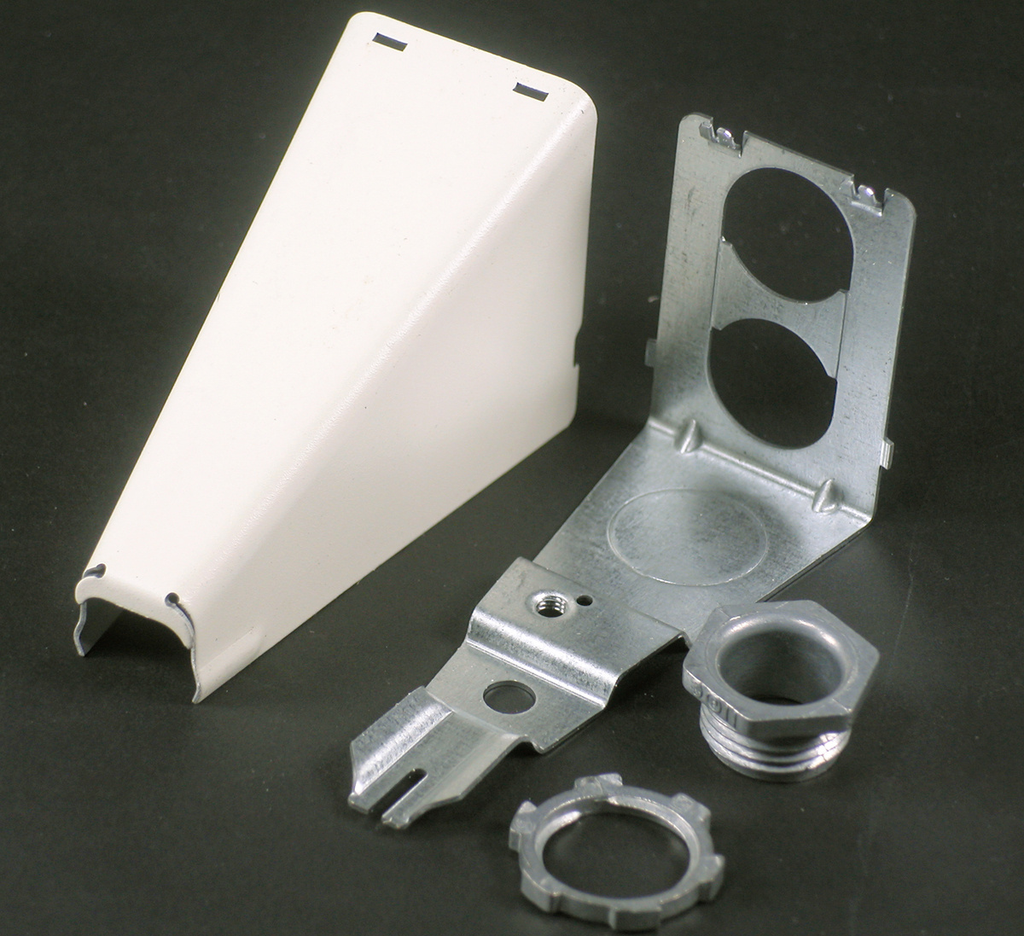

The Wiremold 5786WH is a steel adjust offset connector designed for connecting armored cable to Wiremold fittings. It connects 14/2, 14/3, 12/2, and 12/3 MC cables efficiently. A short piece of 500 or 700 Series Raceway, 1 5/8 inches minimum, must be used between the connector and Wiremold fittings. This connector is not compatible with 1/2 inch flex conduit.

• Connects various MC and armored cables
• Requires a short piece of raceway
• Not for use with 1/2 inch flex conduit

Product Highlights

This connector simplifies the installation process for cable management systems and ensures a secure connection to fittings.

Product Information

Standard Information

• Manufacturer: Wiremold
• Part Number: 5786WH

Technical Specifications

• Material: Steel
• Type: Adjustable Offset Connector
• Finish: White
• Approval: UL (Canada and US)
• Used On: 500/700 Series Single Channel Steel Surface Raceway
• Dimensions: 3-7/8 inches L x 1-5/8 inches W x 2-3/8 inches H
• UNSPSC Code: 39131709
