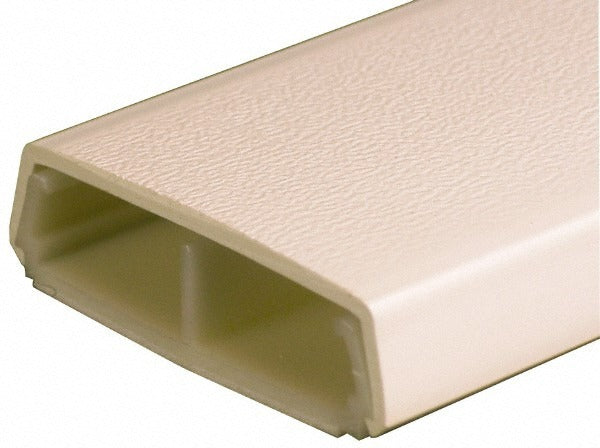

Wiremold 2300BACD Wide Plastic Raceway 2 Channel

Product Description

The WIREMOLD 2300BACD is a wide, two-channel plastic raceway designed for organizing and protecting electrical wiring along walls and surfaces. The snap-on cover allows for fast access to conductors without tools, making it a practical choice for commercial and residential wire management installations. This raceway ships in 5-foot sections and is priced per foot with a minimum order of 5 feet. It is white in color and constructed from durable plastic. Licensed electricians and low-voltage installers use this product for surface-mount wiring runs where conduit installation is not practical or required.

This raceway is suited for surface wiring applications in offices, classrooms, retail spaces, and light commercial environments. It accommodates two separate wiring channels, allowing power and data or communication cables to be routed in the same raceway while maintaining separation. The snap-on cover design simplifies field modifications and future wire additions without disrupting the full installation. It is appropriate for use in dry interior locations where a clean, finished appearance is required.

Key Features

• Two-channel design allows separation of power and low-voltage or communication conductors
• Snap-on cover provides tool-free access for inspection or wire additions
• White plastic construction for a clean finish in interior environments
• Ships in 5-foot sections, sold and priced per linear foot
• cULus Listed (File E90378) for use in compliant electrical installations
• Lightweight at 0.29 pounds per foot, reducing installation effort on vertical or overhead runs

Compatibility

Designed as an OEM-style surface raceway component compatible with standard WIREMOLD 2300 series raceway system fittings and accessories for interior wire management installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the work area before securing the raceway base or pulling conductors. The raceway base is typically fastened to the wall surface before wiring is laid in, after which the snap-on cover is pressed into place. Do not exceed the raceway fill capacity as defined by NEC wiring fill requirements for surface raceways.
