Wiremold 2009 Ground Clamp Fitting

Product Description

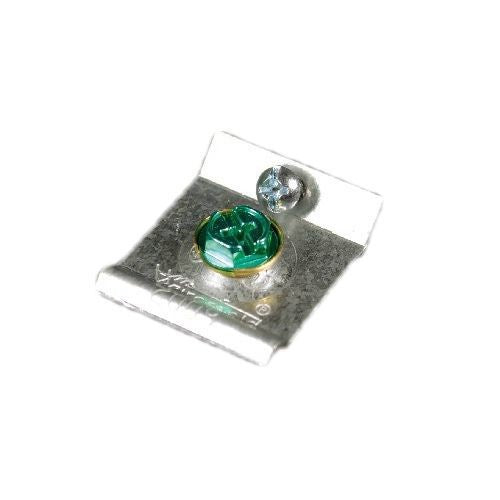

The WIREMOLD 2009 is a steel plate ground clamp fitting. It connects the equipment grounding conductor and provides an additional ground for the raceway. It is suitable for commercial, office, and residential applications. The painted steel product works with many types of decor and is paintable to integrate with most color schemes.

• Steel plate ground clamp
• Connects equipment grounding conductor.
• Provides an additional ground for raceway.

Product Highlights

The WIREMOLD 2009 ground clamp fitting provides a reliable grounding solution for various applications. Its steel construction ensures durability and effective grounding.

Product Information

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: 2009
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121031
• Brand: Wiremold
• Series: 2000 Series
• Fitting Type: Ground Clamp
• Amperage: 15 Amp
• Applications: Plugmold 2000 Series Raceway 125 V Multi-Outlet Power, Commercial, Office, Residential
• Capacity: Single-Channel
• Enclosure: Steel
• Indoor Outdoor: Indoor
• Material: Steel
• Type: 1-Channel
• Voltage: 300.0 V
• Sub Brand: Wiremold
• 12-Digit UPC: 786776090628
• Finish: Stainless Steel
• GTiN: 00786776090628
• Product Series: 2000 Series
• Product UPC: 78677609062
• Length: 1.23 Inch
• Width: 1.203 in
• Certifications and Compliance: BAA | Buy American Compliant
• Certifications: CULUS,NAFTA,ROHS
• Application Sector: Commercial, Education, Entertainment, Healthcare, Hospitality, Retail
• Product Line: Wiremold
• Country Of Origin: United States
• Standard: cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover & Plugmold Series w/Snapicoil Haarness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. cULus Listed Raceway: File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Black Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC.
• UPC Number: 786776090628
• Product Length US: 1.203 in
• Product Width US: 1.203 in
• cULus ListingNumber: E41751
• cULus Listed: Yes
• USMCA: Yes
• Product Environmental Profile: Yes
• RoHS Compliant: Yes
• Environmental Conditions: Dry interior locations
• Suitable For Use With: Plugmold V/G 2000 125 VAC Raceway System
• Standard & Approvals: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, cULus File No. E41751 Guide RJPR
• Dimensions: 1-7/32 in L
• Catalog ID: W-M2009
• Mounting Type: Screw-On
• Application: Commercial, Office and Residential Applications
