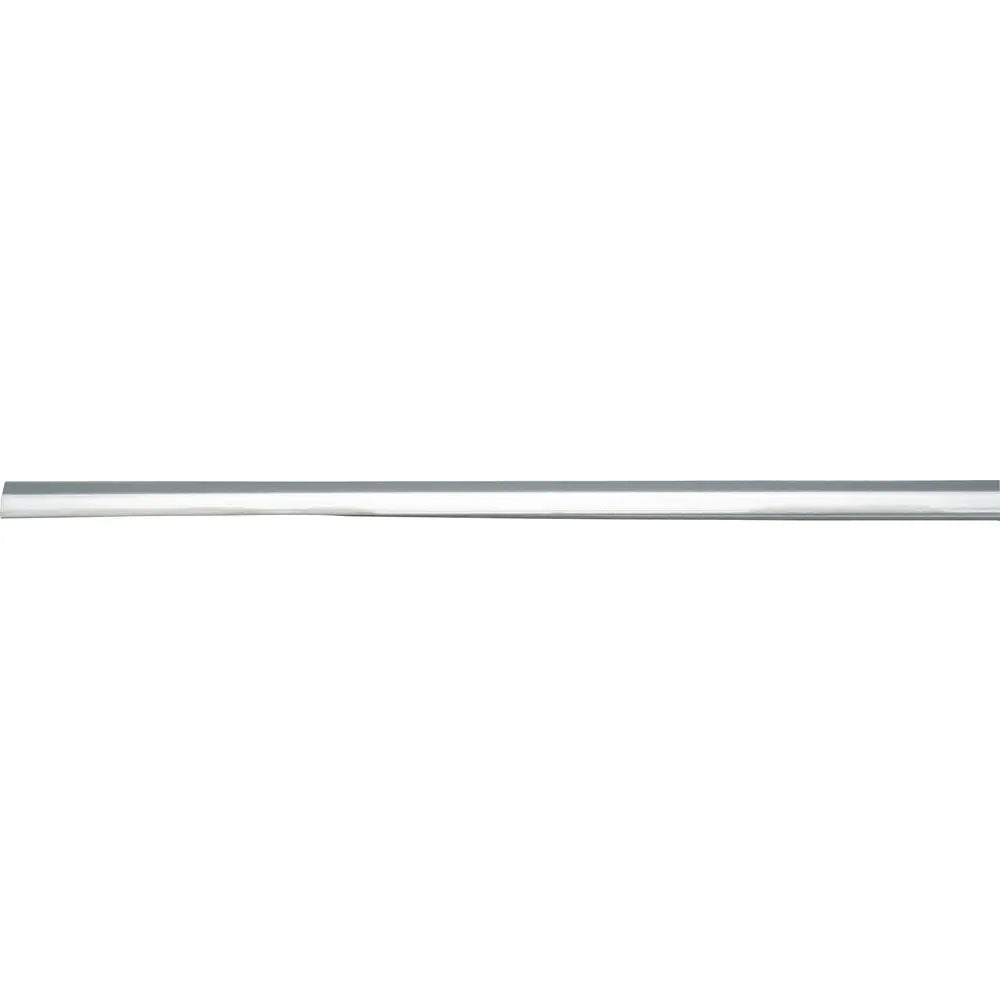

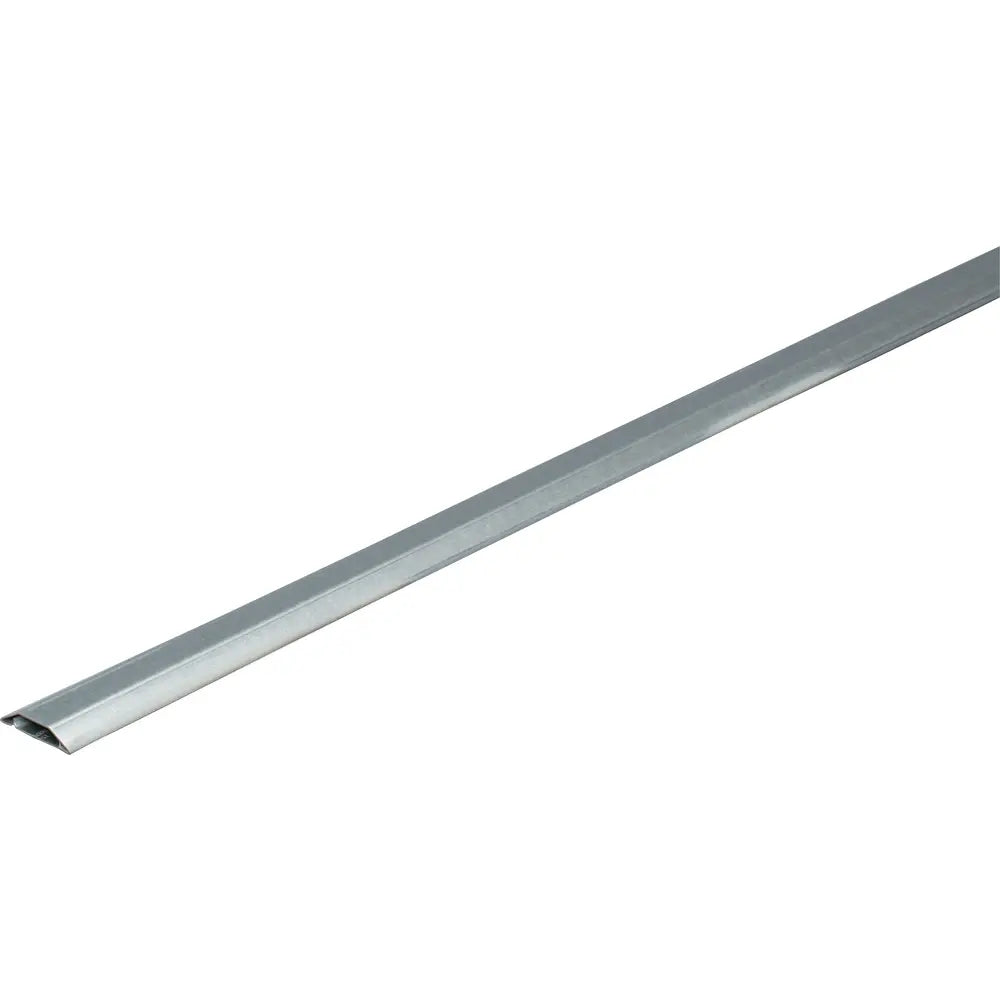

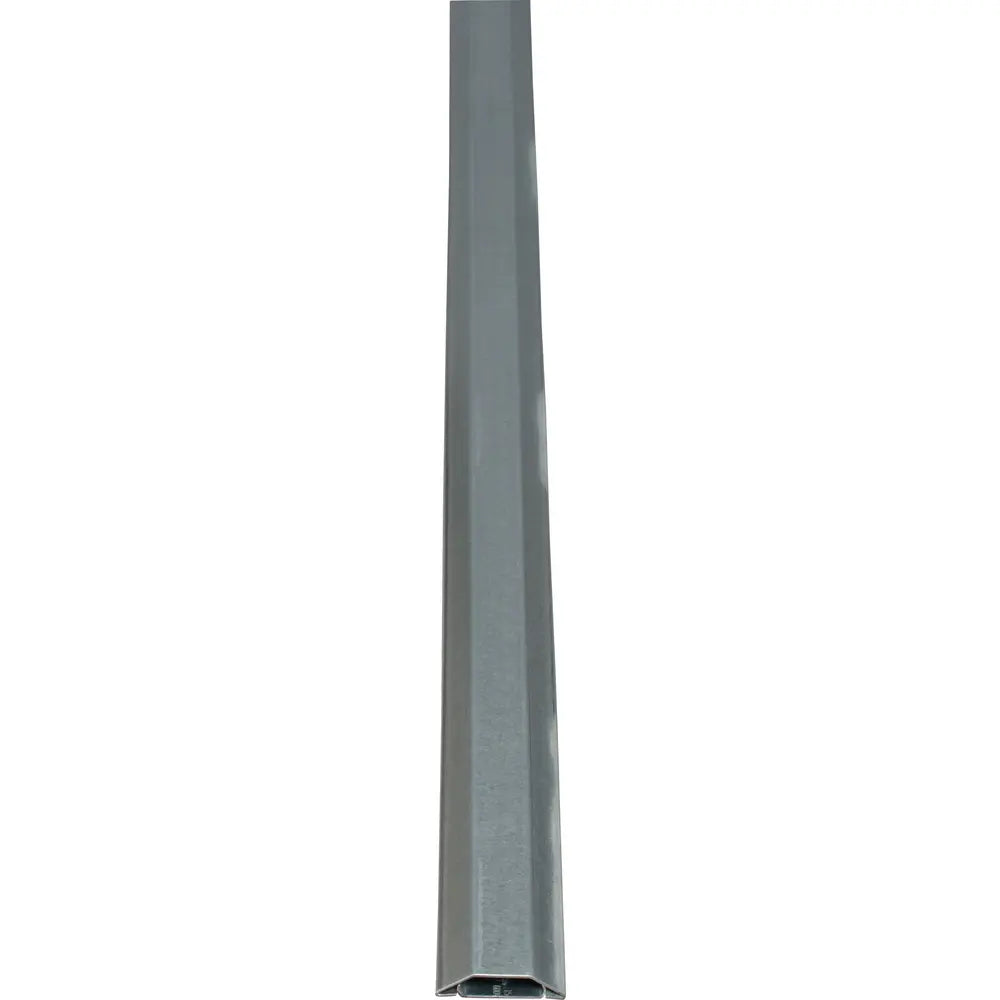

Wiremold 1500-10 Cover B and Snap-On STL Electro-Galv 10 ft

Product Description

The Wiremold 1500-10 is a base and cover designed for the 1500 Series Overfloor Raceway. Constructed from electro-galvanized steel, it features snap-on mounting for a 1-channel raceway. With dimensions of 1-9/16 in ID x 11/32 in OD x 10 ft L, it provides a seamless solution for saving installation time.

• 600 VAC voltage rating
• Full line of fittings provides a complete and safe installation
• Paintable to match decor

Product Highlights

This electro-galvanized steel base and cover is suitable for use with the 1500 Series Overfloor Raceway. It is paintable and provides enhanced flexibility.

Product Information

Standard Information

• Brand: WIREMOLD
• Manufacturer Part Number: 1500-10
• Country of Origin: USA

Technical Specifications

• Type: 1-Channel
• Finish: Electro-Galvanized
• Manufacturer: Legrand
• Mounting Type: Snap-On
• Suitable For Use With: 1500 Series Overfloor Raceway
• Series: 1500
• Material: Steel
• Length: 10'
• Width: 1-9/16"
• Height: 11/32"
• Thickness: .040"
• Voltage: 600 Volt
• Capacity: Single-Channel
• Applications: Commercial
• Product Series: 1500,2600
• Certifications: CULUS,NAFTA,ROHS
• Country of Origin: USA
• Buy American Compliant: Y
• Standard: CULUS; ROHS; NAFTA; cULus Listed Underfloor Raceways: File E4376 Guide RJBT. Fit
• Product Family: 1500 Series
• Application Sector: Commercial
• Voltage Rating: 600 VAC
• Number of Channels: 1
• cULus ListingNumber: E4376
• cULus Listed: Yes
• RoHS Compliant: Yes
• Indoor/Outdoor: Indoor
• Is Pre-Wired: No
• Approval: UL (Canada and US)
• Product UPC: 786776080117
