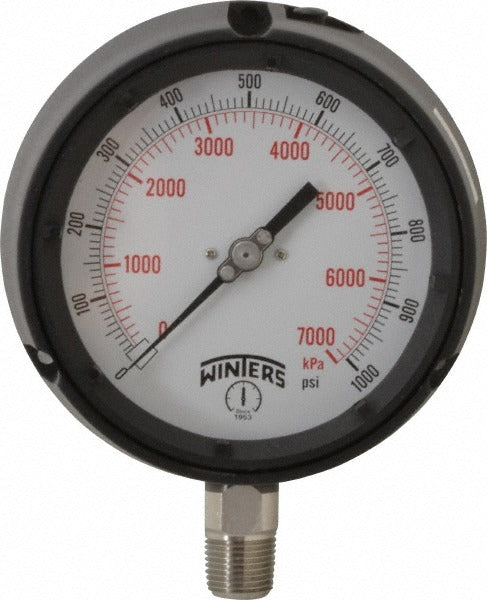

Winters PPC5070 Pressure Gauge 0-1000 Psi 4.5 in Lower Mount

Product Description

The WINTERS PPC5070 is a glycerine-filled process industrial pressure gauge designed for demanding industrial and commercial applications. It features a 4.5-inch analog dial with dual-scale readout and a measurement range of 0 to 1000 psi. The wetted parts are constructed from stainless steel, and the Bourdon tube is 316 stainless steel, making this gauge suitable for aggressive or corrosive media. Accuracy is rated at 0.5 percent of scale, meeting ANSI/ASME Grade 2A requirements. Licensed plumbers, pipefitters, and industrial maintenance technicians typically specify and install this type of gauge on process piping, fluid systems, and pressure monitoring points.

The PPC5070 is suited for process and industrial environments where reliable pressure indication is required across a wide temperature range. The glycerine fill dampens needle vibration caused by pressure pulsation or mechanical shock, extending gauge service life in high-cycle or turbulent flow applications. The lower-mount, 0.5-inch NPT threaded connection orients the gauge for panel-mount or vertical pipe installations common in mechanical rooms, pump skids, and industrial process lines. Its IP65-rated thermoplastic case and polycarbonate lens provide protection against dust ingress and direct liquid splash.

Key Features

• 4.5-inch analog dial with dual-scale readout for clear, at-a-distance pressure monitoring
• 0 to 1000 psi range with 0.5 percent of scale accuracy (ANSI/ASME Grade 2A)
• 316 stainless steel Bourdon tube and stainless steel wetted parts for corrosion resistance
• Glycerine-filled case dampens needle vibration in pulsating or high-vibration service
• IP65-rated thermoplastic case with polycarbonate lens resists dust and liquid ingress
• Lower-mount 0.5-inch NPT connection for standard panel or pipe installation
• Rated for operating temperatures from -40 degrees F to 250 degrees F

Compatibility

Designed as an OEM-style process gauge for industrial and commercial pressure monitoring systems using standard 0.5-inch NPT lower-mount connections. Meets ANSI/ASME B40.100, CRN, IP65, and RoHS compliance requirements for broad application suitability.

Installation Notes

Installation should be performed by a licensed pipefitter, plumber, or qualified industrial maintenance technician in accordance with applicable mechanical codes. Depressurize and isolate the system completely before removing or installing any pressure gauge. Use an appropriate thread sealant rated for the media and pressure range on the NPT threads; do not overtighten, as thermoplastic housings can crack under excessive torque. Verify the process media is compatible with stainless steel wetted parts before placing the gauge in service.
